Intermec PF8T User Manual

Chapter 2 — Connecting the Printer
PF8d and PF8t Desktop Printer User’s Guide 41

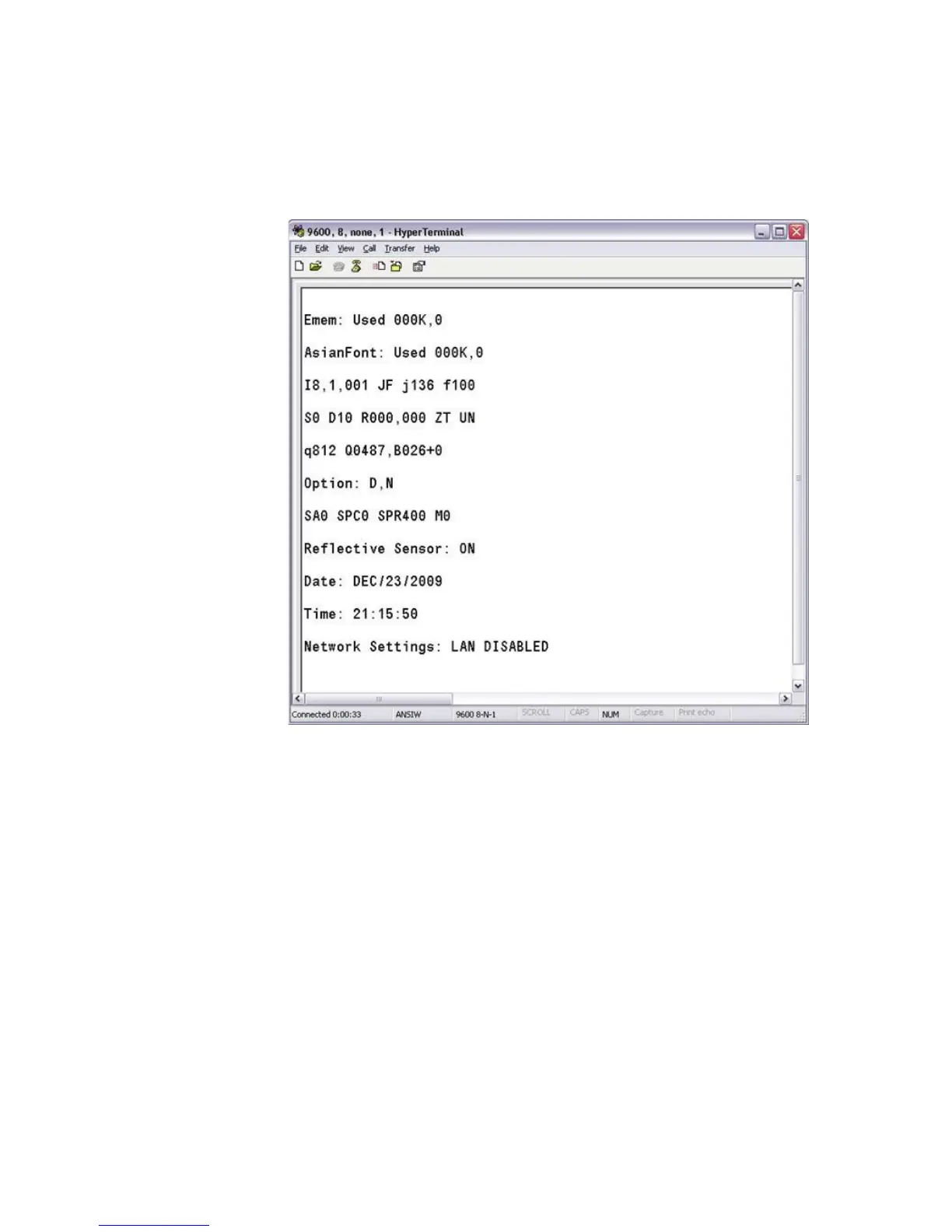

3 To verify that the USB port is enabled, type UQ and press Enter.
Make sure that the Network Settings: LAN DISABLED line
appears.
To install the InterDriver software
1 On your PC, run InterDriver.
2 The Intermec End User License Agreement appears. Read the
agreement, select the option to accept the agreement, and then
click Next.
3 The Installation Directory screen appears. The default installation
directory is c:\Intermec\InterDriver7. Click Next to use the default
directory or specify a different location to install the files.

Intermec PF8T Specifications

General

Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Core diameter	25.4 mm
Ribbon length	274.32 m
Maximum media length	1727 mm
Maximum roll diameter	127 mm
Supported paper width	118 mm
Maximum media length (imperial)	68 \
Supported paper width (imperial)	4.65 \
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Form factor	Desktop
Dimensions (WxDxH)	168 x 218 x 116 mm
Flash memory	4 MB
Certification	CE, FCC Class A, cULus, UL, GS, TUVGS, CCC, C-TICK, BSMI
Internal memory	8 MB
Built-in barcodes	MaxiCode, PDF417
Page description languages	EPL
Compatible operating systems	Windows 98/Me/2000/XP Pro/Server 2003/Vista
Storage temperature (T-T)	40 - 104 °F
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	100–240 V AC/50–60 Hz, 1.9 A
AC adapter output current	3 A
AC adapter output voltage	24 V

Weight and Dimensions

Weight	2000 g
