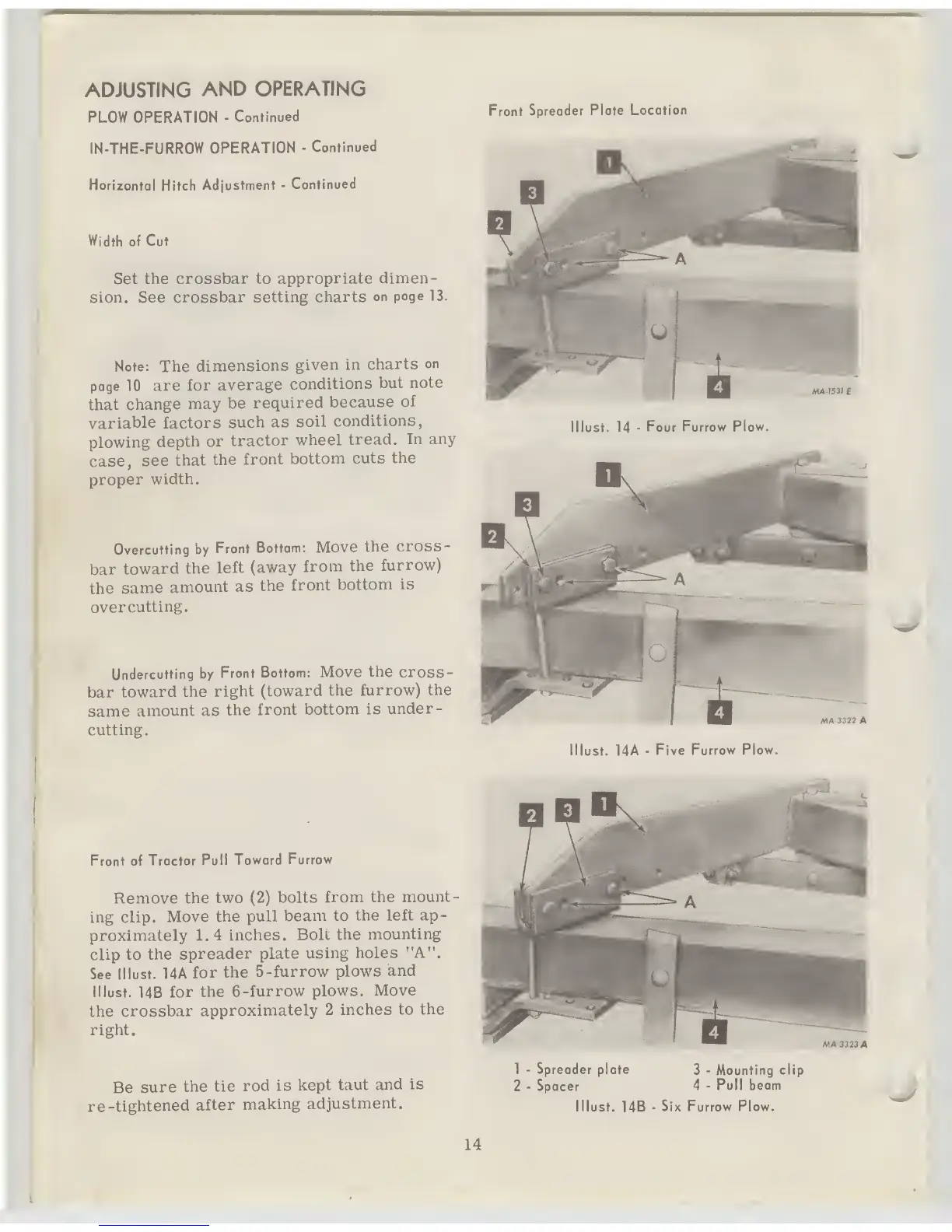

International 710 - Width of Cut; Front Spreader Plate Location; Front of Tractor Pull Toward Furrow

ADJUSTING
AND
OPERATING
PLOW OPERATION
-
Continued
IN-THE-FURROW
OPERATION
-
Continued
Horizontal
Hitch
Adjustment
-
Continued
Width of
Cut
Set the
crossbar to appropriate
dimen-
sion. See crossbar
setting charts
on
page
13.
Note:
The
dimensions
given
in
charts
on
page 10 are
for
average
conditions
but
note
that
change
may
be
required
because
of
variable
factors
such
as
soil
conditions,
plowing
depth
or
tractor
wheel
tread.
In
any
case,
see
that
the
front
bottom
cuts the
proper
width.
Overcutting by
Front
Bottom:
Move
the
cross-
bar
toward
the
left
(away
from
the
furrow)
the
same
amount
as
the
front
bottom
is
overcutting.
Undercutting
by
Front Bottom:
Move
the
cross-
bar
toward
the
right
(toward
the
furrow)
the
same
amount as
the
front
bottom is
under-
cutting.
Front
Spreader
Plate
Location
MA
1531
£
lust. 14
-
Four
Furrow Plow.
MA
-3322
A
M
lust. 14A
-
Five
Furrow
Plow.
Front of
Tractor
Pull
Toward
Furrow
Remove the
two
(2)
bolts
from the mount-
ing clip.
Move
the pull
beam
to the
left ap-
proximately
1.4
inches.
Bolt
the
mounting
clip to the
spreader
plate
using holes
"A".
See
lllust.
14A
for
the
5-furrow
plows
and
lllust.
14B
for
the
6-furrow
plows.
Move
the
crossbar
approximately
2
inches
to the
right.
Be
sure
the
tie
rod
is
kept
taut
and
is
re
-tightened
after
making
adjustment.
1
-
Spreader plate
2
-
Spacer
