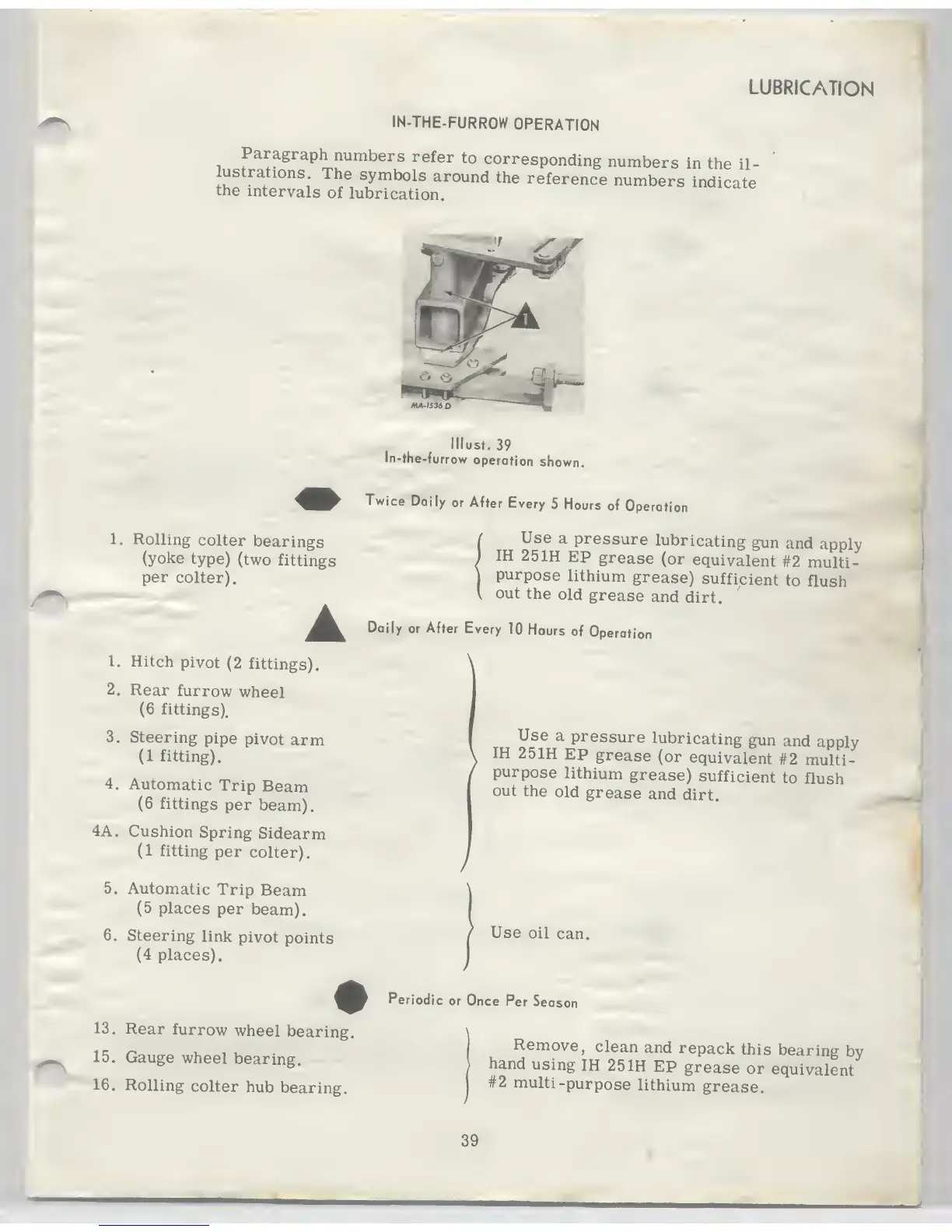

International 710 - MODE-SPECIFIC LUBRICATION

LUBRICATION
IN-THE-FURROW
OPERATION
Paragraph
numbers
refer
to
corresponding
numbers
in
the
il-
lustrations
The
symbols
around
the
reference
numbers
indicate
the
intervals
of
lubrication.
Mlust.39
ln-the-furrow
operation
shown.
1.
Rolling
colter
bearings
(yoke
type)
(two
fittings
per
colter).
1. Hitch
pivot
(2 fittings).
2.
Rear
furrow
wheel
(6
fittings).
3. Steering
pipe
pivot
arm
(1
fitting).
4.
Automatic
Trip
Beam
(6
fittings
per
beam).
4A. Cushion
Spring
Sidearm
(1
fitting
per
colter).
5. Automatic
Trip
Beam
(5
places
per
beam).
6. Steering
link
pivot
points
(4
places).
Twice
Daily
or
After
Every
5
Hours
of
Operation
Use
a
pressure
lubricating
gun
and
apply
IH
25
1H
EP
grease
(or
equivalent
#2
multi-
purpose
lithium
grease)
sufficient
to
flush
out
the
old
grease
and
dirt.
Daily
or
After
Every
10
Hours
of
Operat
ion
Use
a
pressure
lubricating
gun
and
apply
IH
251H
EP
grease
(or
equivalent
#2
multi-
purpose
lithium
grease)
sufficient
to
flush
out
the
old
grease
and
dirt.
Use
oil
can.
13. Rear
furrow
wheel
bearing.
15.
Gauge
wheel
bearing.
16.
Rolling
colter
hub
bearing.
Periodic
or
Once
Per
Season
Remove,
clean
and
repack
this
bearing
by
hand
using
IH
25
IH
EP
grease
or
equivalent
#2
multi-purpose
lithium
grease.
