ADJUSTING AND
OPERATING
TRACTOR
PREPARATION
TRACTOR
STABILITY
THREE-POINT HITCH
ADJUSTMENT
Refer to
the Operator's
manual furnished
with
the tractor and
add weight
as shown
therein and in
the
amounts specified
be-
low:
Farmall
and
International
Tractors:
Add 1000 to
1200 pounds of
front end
weight,
depending
on
the capacity of
the
tractor
front end
weight
mounting
bracket being
used.
Tractors
Of
Other
Manufacture:
Add
sufficient front
end
weight to assure sta-
bility.
TRACTOR
WHEEL
WEIGHT
It
is
recommended
that
the tractor rear
wheels
carry
added
weight for
increased
traction.
Adding
weight saves
wear on
the
tires
and also
serves
to stabilize
the
trac-
tor for plowing
on
rough or
hillside
fields.
For this
purpose,
liquid
such as
calcium
chloride
solution can be
placed
in
the rear
tires,
or one
or two
weight
(available
from
your
International
Harvester
dealer) may
be
bolted on
each
rear wheel.
In
loose soil
it may be
necessary
to use
both
the liquid
and the
weights to
prevent
excessive
tire
slippage
.

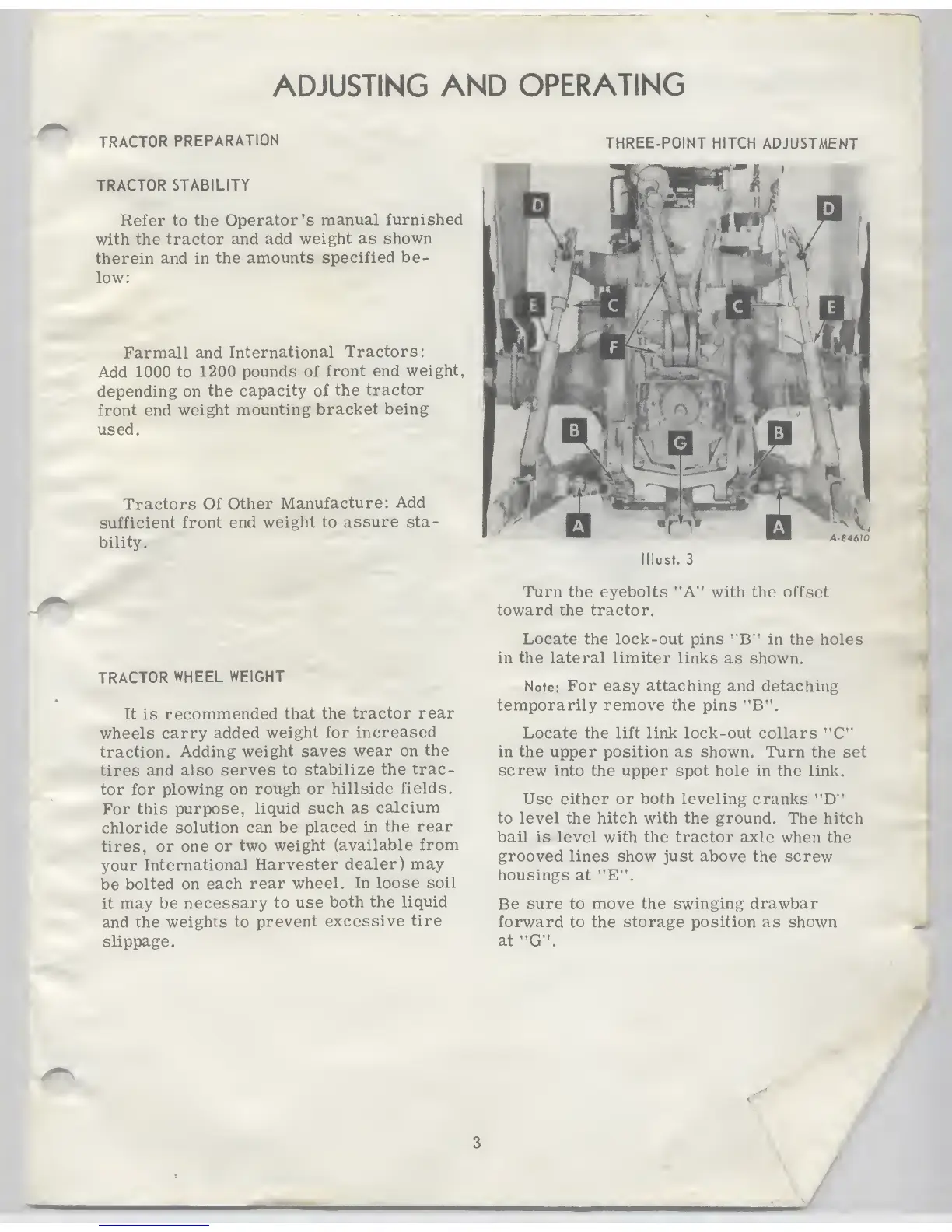

A
84610
lllust.
3
Turn the eyebolts "A" with
the offset
toward the tractor.
Locate the lock-out pins
"B"
in
the holes
in
the
lateral
limiter links
as shown.
Note:
For
easy
attaching
and detaching
temporarily remove
the
pins
"B".
Locate the lift link lock-out collars
"C"
in the upper position as shown. Turn
the
set
screw into the upper spot
hole in the link.
Use either or both leveling cranks
"D"
to
level the hitch
with
the ground. The hitch
bail
is
level with the tractor axle
when the
grooved lines show just
above the screw
housings at "E".
Be sure to
move
the
swinging drawbar
forward to
the
storage position as shown
at
"G".
/
/
_
