POOL ENCLOSURE SETUP
Once the pool has been filled with water, and it has been confirmed that it is completely level and that all
vertical legs are positioned in the middle of each patio block, proceed with the assembly of the pool
enclosure.
1. Top clamp installation
• Fasten a top clamp (13) to the T-joint of the pool frame from underneath. Ensure the two bolts on top
clamp are facing upward. Repeat the procedure until all the top clamps are fastened to the T-joints

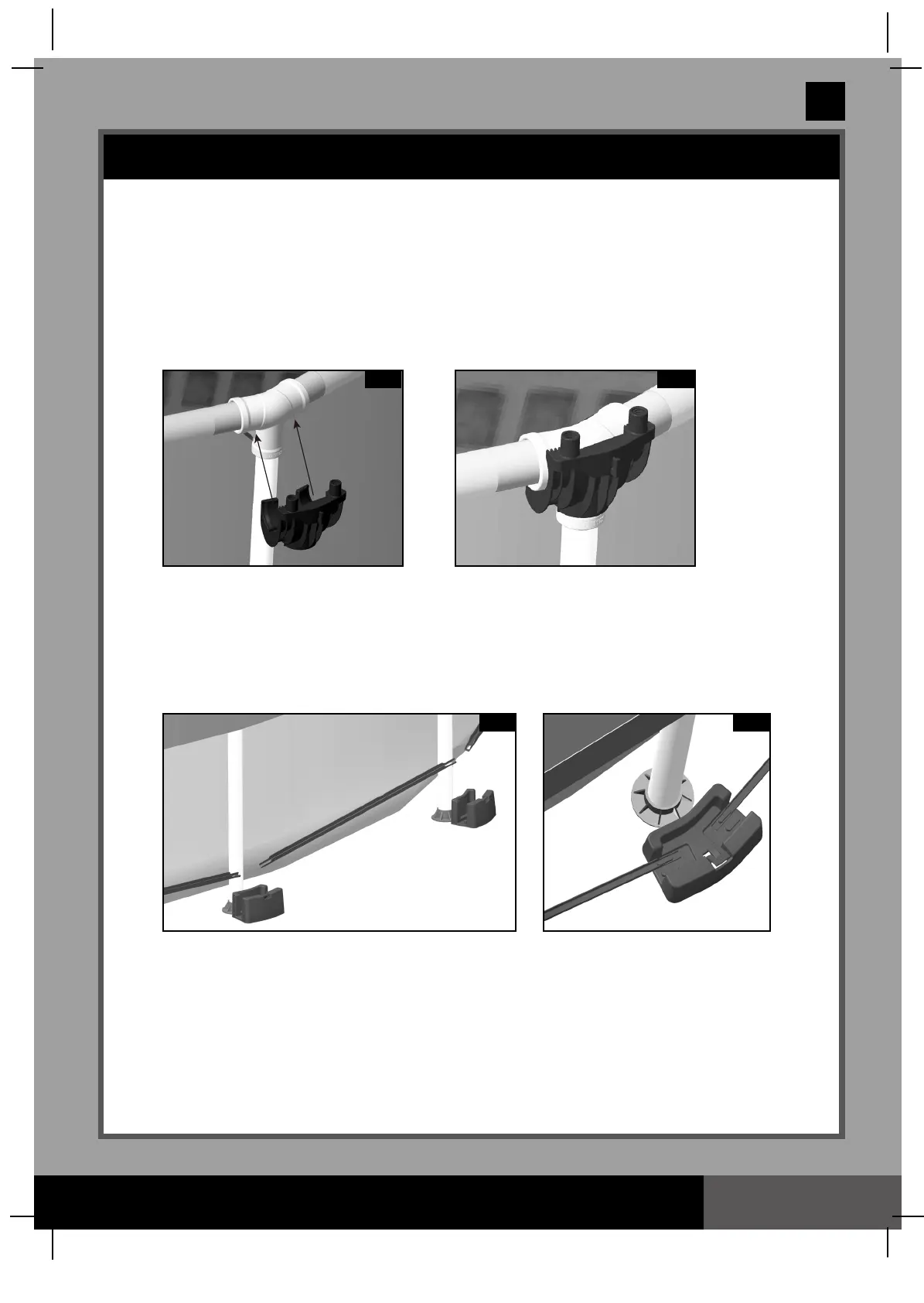

of the pool frame (see drawings 8.1 & 8.2).
2. Bottom cap and bottom rail installation
• Place a bottom cap (21) on the ground and align it with the leg cap. Place all bottom caps in position.
• Starting at any location, but always working in the same direction, connect a bottom rail (20) in between
two bottom caps (21). Ensure the pre-drilled holes on the bottom rail hook through the knobs on the
bottom cap. Repeat this procedure in a circular fashion until all the bottom rails and bottom caps have
been connected. Adjust the distance of the bottom cap to the leg cap by estimating that the support
post (14) will stand vertical after it is installed (see drawings 9.1 & 9.2).
8.1
8.2
9.1
9.2
