SAVE THESE INSTRUCTIONS
(120IO) GRAPHITE GRAY PANEL™ POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/20/2022
English
Page 14

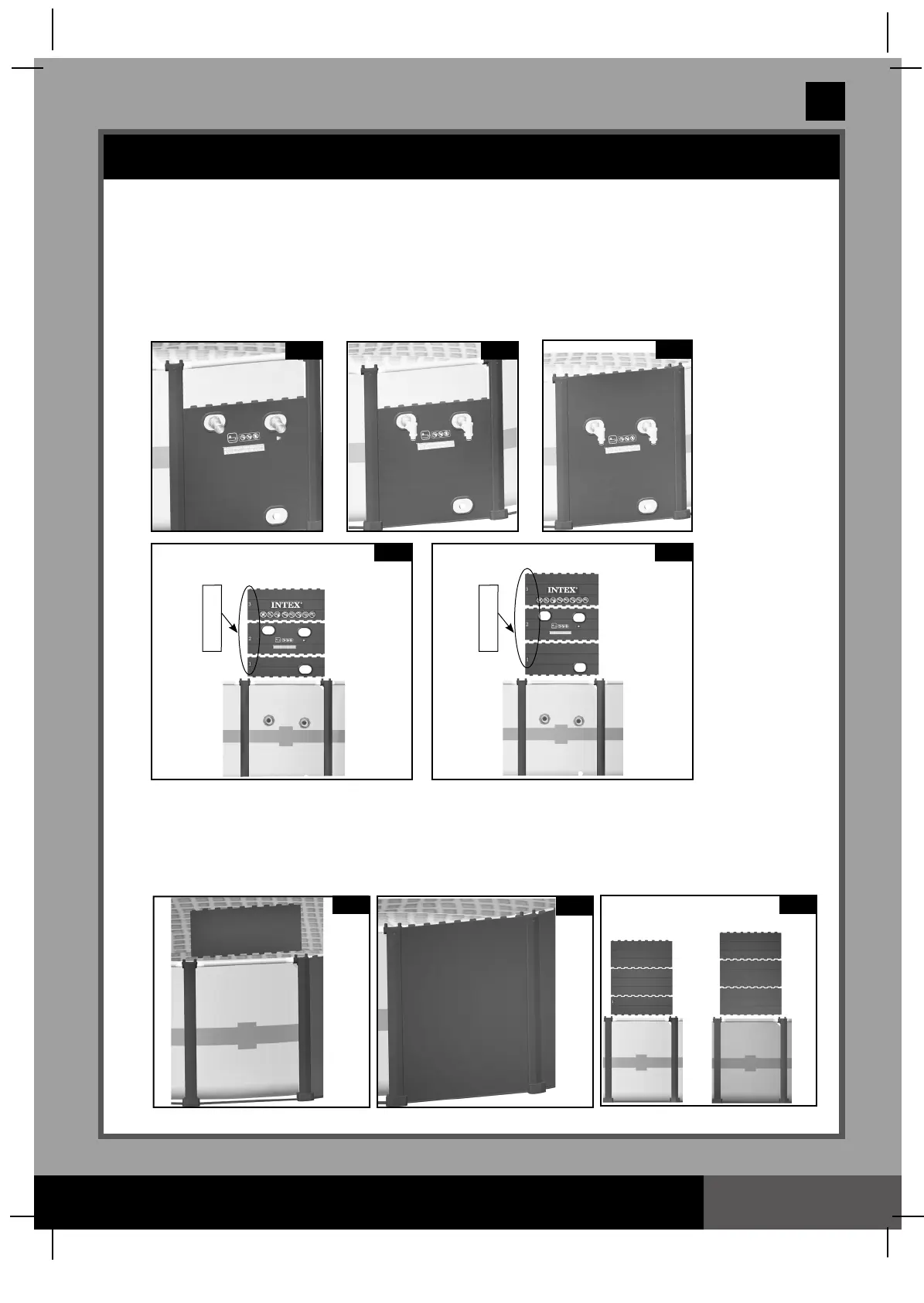

• In clockwise motion screw the plunger valve connectors (15) onto the threaded strainer connectors which
were already installed on the pool liner during the pool set up (see drawing 11.3). In a clockwise motion
screw the plunger valves onto the plunger valve connectors (15). Close the plunger valves by pushing the
handle down and turn in a clockwise direction to lock as described in filter pump manual. Now, the strainer
valve caps (16) can be unplugged out of the threaded strainer connectors from the inside of the pool
(see drawings 11.4 & 11.5).
• Continue to finish the side panel installation by installing the rest of the side board marked with number “3”
(see drawings 11.6 - 11.8).
4b. Other side panel installation
• Install the side boards one by one from bottom to top. Insert the groove of the first side board onto the
vertical edge of the bottom rail, and the groove of the other side boards onto the tongue of each previous
board. The side boards with wood veins printed need to be faced outward (see drawings 12.1 - 12.3).
• For 43” height pool, install the rest of the side panels by using one piece of side board B (17B) at the
bottom first plus two pieces of side board A (17A) for each section.
POOL ENCLOSURE SETUP (continued)
11.8
3
2
1
15’8” x 49” (478cm x 124cm)
11.7
3
2
1
13’8” x 43” (417cm x 109cm)
11.4 11.5
11.6
12.1
12.2
12.3
13’8” x 43”
(417cm x 109cm)
15’8” x 49”
(478cm x 124cm)
