Intex 128366NP User Manual

332A
SAVE THESE INSTRUCTIONS
English
(332IO) 48”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 04/26/2018
Page 4

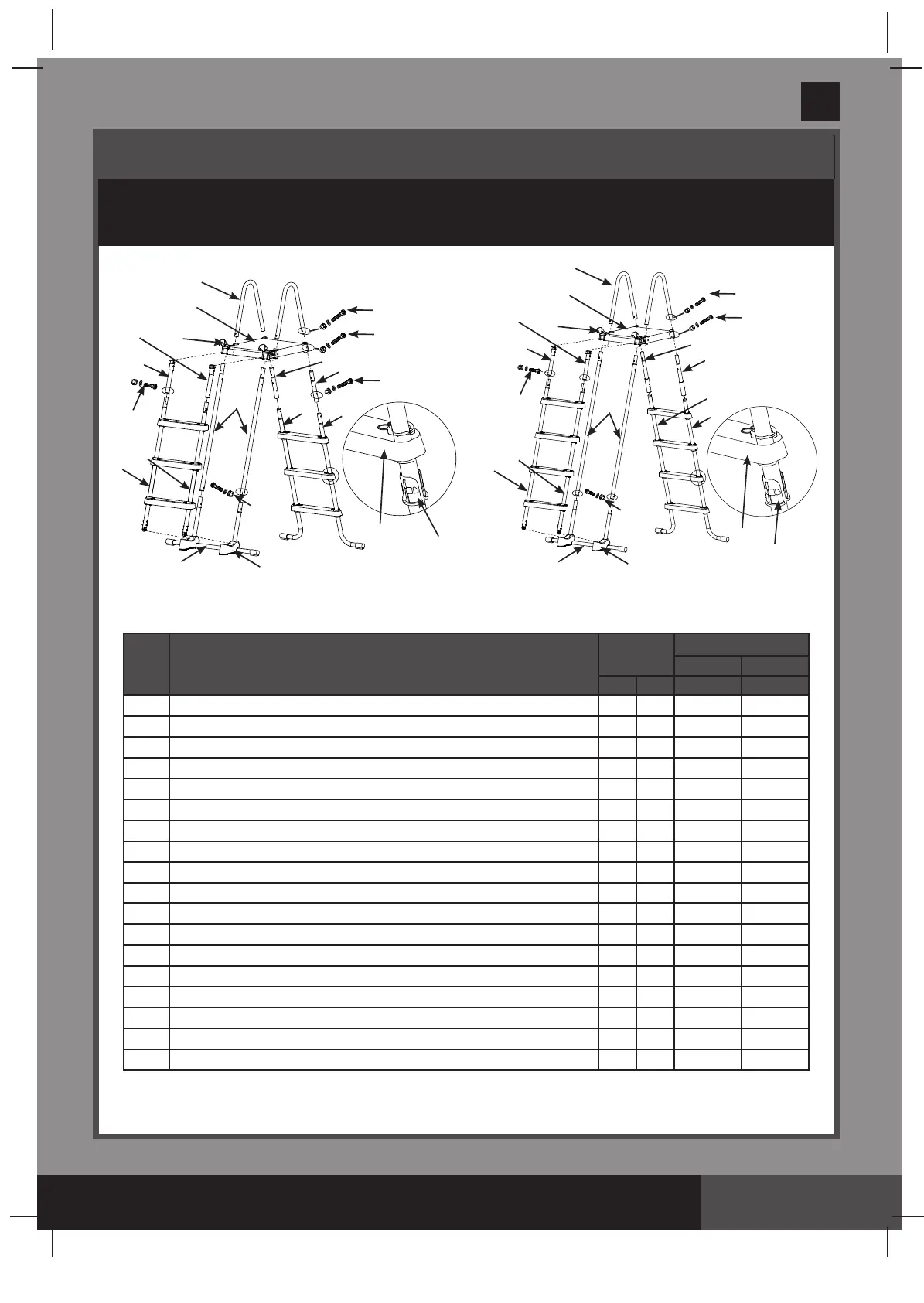

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF.
NO.
DESCRIPTION
QUANTITY
SPARE PART NO.
48in 52in
48in 52in #28076 #28077
1 U-SHAPED TOP RAIL
2 2 12512 12512
2 TOP PLATFORM
1 1 12182 12182
3 CLASP
2 2 12190 12190
4 SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
11 9 10810 10810
5 LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA)
5 5 10227 10227
6 A SIDE - UPPER SIDE LEG (MARKED “A”)
1 1 12669A 12643A
7 A SIDE - UPPER SIDE LEG (MARKED “B”)
1 1 12669B 12643B
8 A SIDE - LOWER J- LEG (MARKED “A” )
1 1 12670A 12644A
9 A SIDE - LOWER J- LEG (MARKED “B” )
1 1 12670B 12644B
10 STEP
6 8 12629 12629
11
STEP ANCHOR SLEEVE
12 16 12630 12630
12 B SIDE - UPPER SIDE LEG (MARKED “A1”)
1 1
12653A 12653A
13 B SIDE - UPPER SIDE LEG (MARKED “B1)
1 1 12653B 12653B
14 B SIDE - LOWER SIDE LEG (MARKED “A1)
1 1 12651A 12654A
15 B SIDE - LOWER SIDE LEG (MARKED “B1”)
1 1 12651B 12654B
16 C SIDE - UPPER SIDE LEG (MARKED “C”)
2 2 12652 12655
17 C SIDE - LOWER U-SHAPED SIDE LEG (MARKED “C”)
1 1 12650 12650
18 SUPPORT BASE
2 2 11356 11356
52in (132 cm)
model
2
1
4 (M6*35)
5 (M6*40)
10
17
18
7
9
6
8
11
16
3
12
4 (M6*35)
4 (M6*35)
14
13
15
TOOLS REQUIRED: One (1) Phillips screwdriver, one (1) small flat screwdriver
One (1) pair of pliers or a small adjustable wrench
48in (122 cm)
model
4 (M6*35)
5 (M6*40)
2
1
3
12
13
4 (M6*35)
4 (M6*35)
14
15
10
11
9
8
6
7
17
18
16
4 (M6*35)
