LADDER SETUP
Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate
and individual assembly experience may vary.)
These assembly instructions are the same for the 3-step and 4-step ladders. The
assembly drawings show the 4-step ladder.
TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.
WARNING
ASSEMBLE THE LEGS BEFORE INSTALLING THE LADDER STEPS. FAILURE TO
ASSEMBLE THE LEGS BEFORE INSTALLING THE STEPS MAY ALLOW THE
LEGS TO SEPARATE FROM THE LADDER DURING USE, POSSIBLY RESULTING
IN SERIOUS INJURY OR DEATH. INCORRECTLY CONNECTED PARTS MAY
RESULT IN AN UNSTABLE LADDER OR LADDER FAILURE WHICH CAN CAUSE
FALLING AND PERSONAL INJURY OR DEATH.

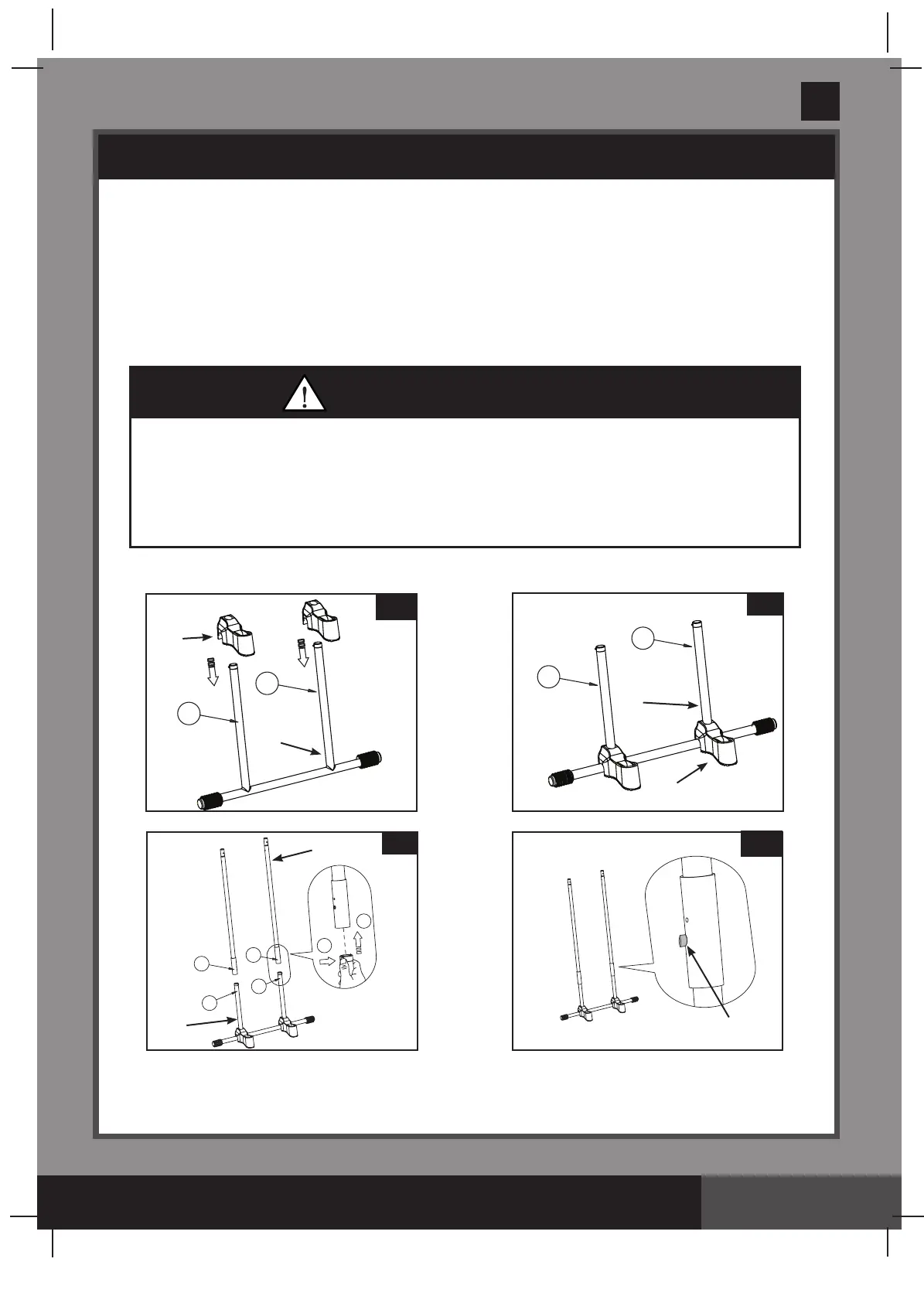

1. SIDE C LEGS ASSEMBLY
(refer to figures 1.1 through 1.4):
IMPORTANT: Make sure the legs are securely connected and locked. Check the
spring pins have snapped out before proceeding to the next step.
C
1
2
C
C
C
C
C
C
C
15
16
1.1
C
1
2
C
C
C
C
C
C
C
16
15
1.2
C
1
2
C
C
C
C
C
C
C
15
14
Press,
hold and
insert
1.3
C
1
2
C
C
C
C
C
C
C
C
C
Spring pin
1.4
