Intex CLEARVIEW PRISM FRAME 126730GN User Manual

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2020
108
GS
SAVE THESE INSTRUCTIONS
English
Page 7
1.
In a counter-clockwise motion unscrew
plunger valve union from the inlet
threaded air connector
(17) (see
drawing 5)
. Be careful not to lose the
step rubber washer
(11)
. Place the
plunger valve on the ground in a safe
place.
2.
In a counter-clockwise motion unscrew
the strainer nut
(12)
from the inlet
threaded air connector
(17)
. Leave the
flat washer
(13)
on the connector
(17)
.
3.
Install the nozzle and plunger valve at the
upper position of the pool inlet. From the
inside of the pool liner insert the nozzle
union
(15 & 17)
into one of the pre-cut
holes with the washer remaining on the
connector to be placed against the inside
of the liner wall.
4.
Before assembly, lubricate the threads
with a petroleum jelly. Then, with the flat
side of the strainer nut
(12)
facing the
outside wall of the liner in a clockwise
motion screw the strainer nut
(12)
back
onto the inlet threaded air connector
(17)
(see drawing 6)
.
5.
Finger tighten the adjustable pool inlet jet
nozzle
(15)
and the strainer nut
(12)
onto
the inlet threaded air connector
(17)
.
6.
Grasp the plunger valve assembly. Make
sure the step washer
(11)
is in place.
7.
Screw the air jet valve
(16)
over the inlet
threaded air connector
(17)
.
NOTE:
Make sure the air jet valve is
securely tighten and facing up. In a
clockwise motion screw the plunger valve
union back onto the inlet threaded air
connector
(17) (see drawing 7)
.
8.
In a clockwise motion turn the plunger
valve handle to close position. Ensure the
plunger valve is securely closed. This will
prevent water from flowing out during
filling of the pool
(see drawing 8)
.
9.
Adjust the direction of the nozzle head
pointing away from the pool outlet for a
better circulation result
(see drawing 9)
.
10.
The pool liner is now ready to be filled
with water. Consult the above-ground-
pool owner’s manual for the filling
instructions.

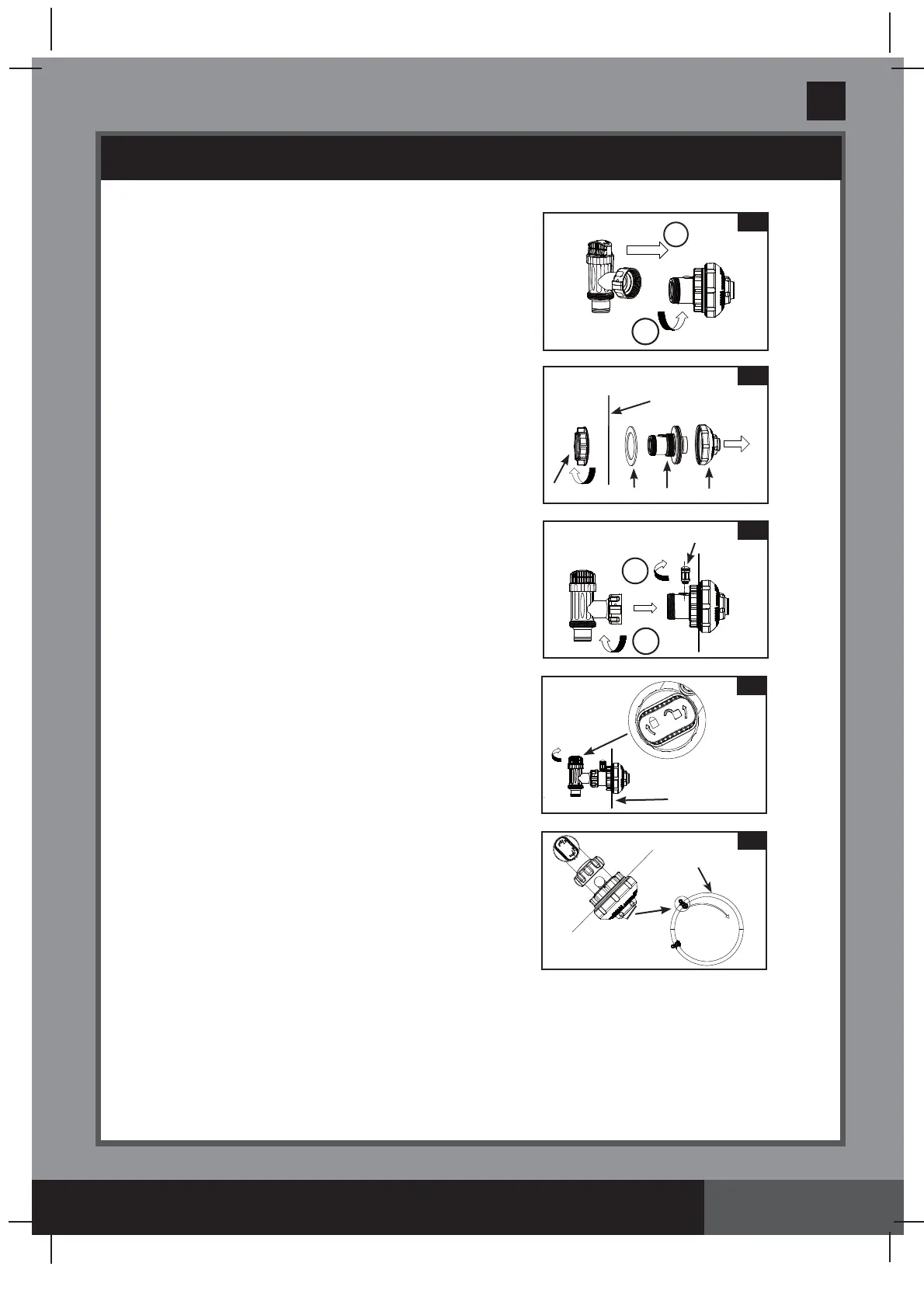

POOL INLET
-
NOZZLE & PLUNGER VALVE SETUP
(
optional
)
5
2
1
8
INSIDE
LINER WALL
9
WATER
FLOW
POOL
6
13
17
15
INSIDE LINER
WALL
12
7
1
2
16
NOTE:
Do not cover the air jet
valve
(16)
with the valve cap
(18)
under normal situation or when
the pump is operating. See
Troubleshooting Guide section
for more details.

Intex CLEARVIEW PRISM FRAME 126730GN Specifications

General

Brand	Intex
Model	CLEARVIEW PRISM FRAME 126730GN
Category	Swimming Pool Pump
Language	English
