SETTING UP FILTER PUMP
Some countries, especially in the European community, require the filter-pump to be secured to
the ground or to a base in a permanent upright position. Check your local authorities to determine
if there is a regulation in your area regarding above-the-ground swimming pool filter-pumps. If yes,
then the filter-pump can be mounted to a platform using the two holes located in the base. See
drawing below.
The filter-pump can be mounted on a cement base or onto a wooden platform to prevent
accidental falling over. Total assembly must exceed 18kg.
1.
The mounting holes are 6.4mm in diameter and spaced 130mm apart.
2.
Use two bolts and lock nuts with a maximum of 6.4mm in diameter.
For your own personal safety, it is very important that you place your transformer more than 3.5m
away from your pump.

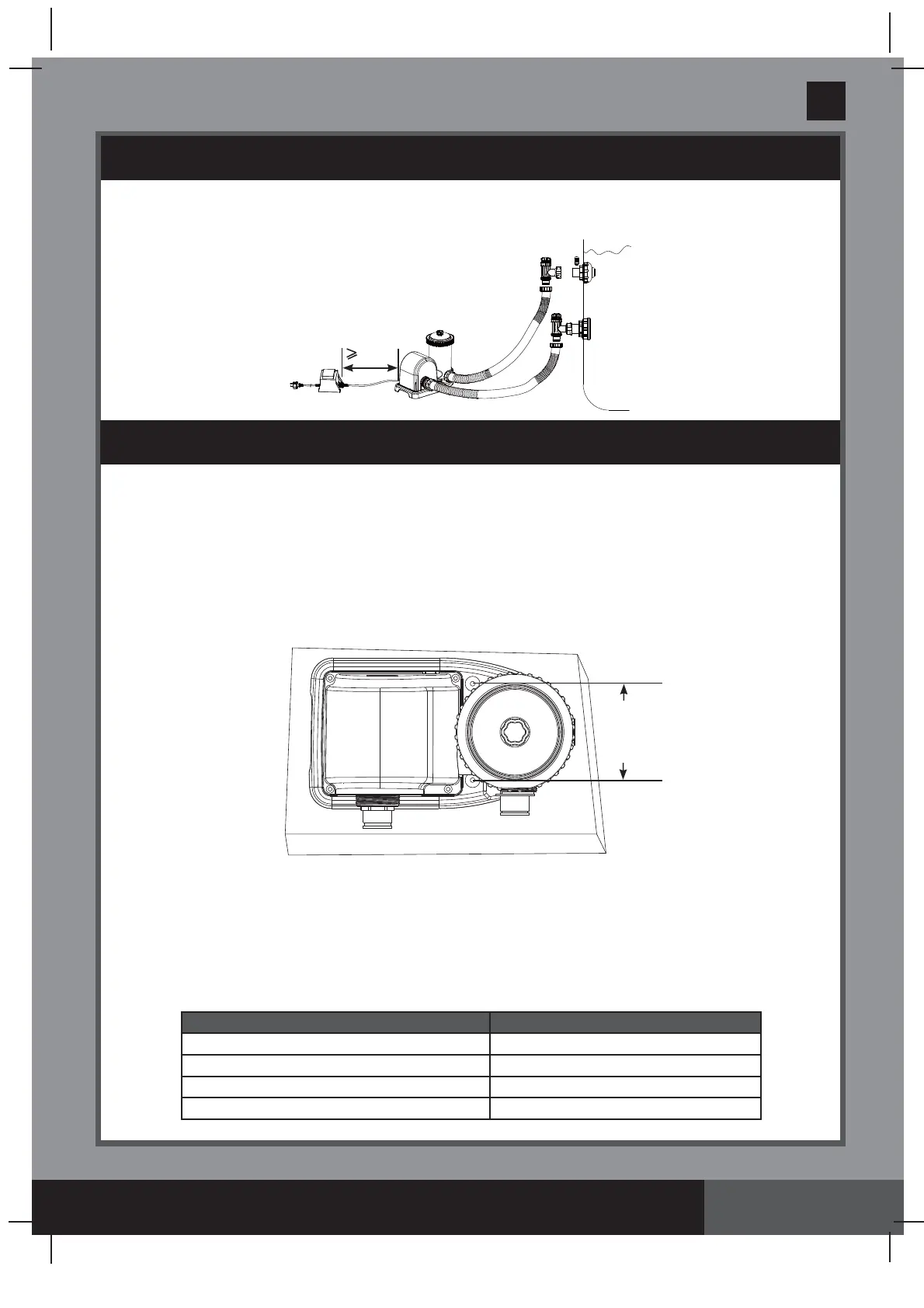

FILTER PUMP STATIONARY MOUNTING OPTION
130 mm
3.5 m
The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 3.5m away from the pool walls. Check your local authorities to determine the
appropriate standard and requirements for “electrical installation of swimming pools and basins
equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region
Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702
