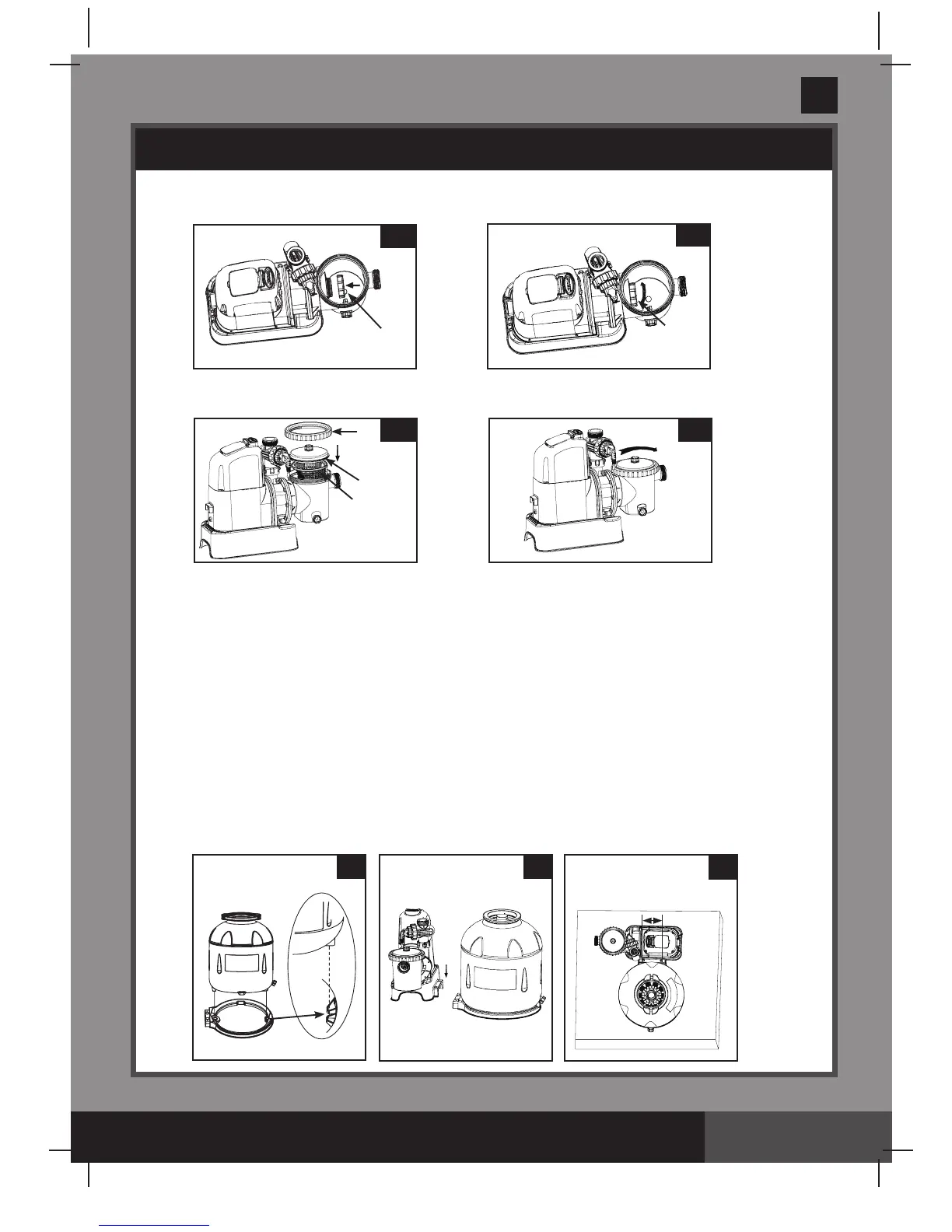

In a clockwise motion screw filter housing nut (17) onto the motor water inlet (See
drawings 12.1 & 12.2)
.
5.
Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing (See
drawings 13.1 & 13.2)
.
SETUP INSTRUCTIONS (continued)
13.2
14.1
14.2
14.3
12.2
12.1
17
17
13.1
16
14
40
115 mm
Sand tank installation:
1.
Place the tank support base at the selected location.
2.
Place the tank on the tank support base (See drawing 14.1).
3. Connect the motor pre-filtering assembly unit to the tank support base
(See drawing 14.2)
.
NOTE: Ensure the pre-filter housing water inlet hose connection is facing towards the pool.
IMPORTANT: Some countries, especially in the European community, require the
product to be secured to the ground or to a base in a permanent upright position.
Check your local authorities to determine if there is a regulation in your area
regarding above-the-ground swimming pool filter-pumps. If yes, then the product can
be mounted to a platform using the two holes located in the base. See drawing 14.3.
The product can be mounted on a cement base or onto a wooden platform to prevent
accidental falling over.
• Themountingholesare6.4mmindiameterandspaced115mmapart.
• Usetwoboltsandlocknutswithamaximumof6.4mmindiameter.
