POOL ENCLOSURE SETUP (continued)
4b. Side panel with “warnings” installation
• Locate the side panel with warnings such that the warnings will be easily seen by pool users before
entering the pool. Unwrap the side boards from pack and slide the side board first down the support
posts and insert onto the vertical edge of the bottom rail. Follow with the number sequence from bottom
to top. The groove of the board needs to be inserted fully onto the tongue of the previous board. The

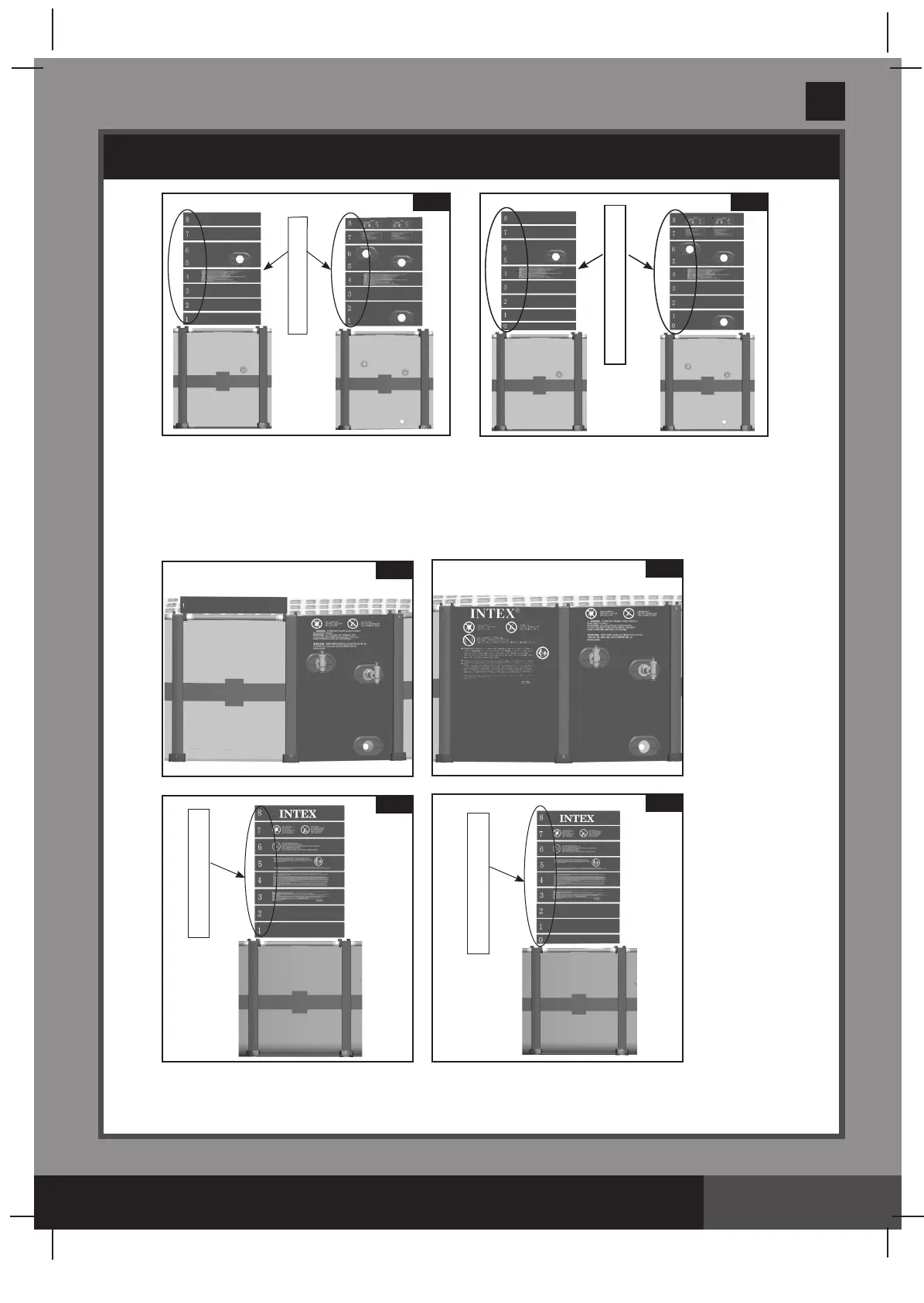

printing on the side boards needs to be facing outward (see drawings 12.1 & 12.2).
