120A
SAVE THESE INSTRUCTIONS
(120IO) SEQUOIA SPIRIT™ WOOD-GRAIN FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2016
English
Page 15

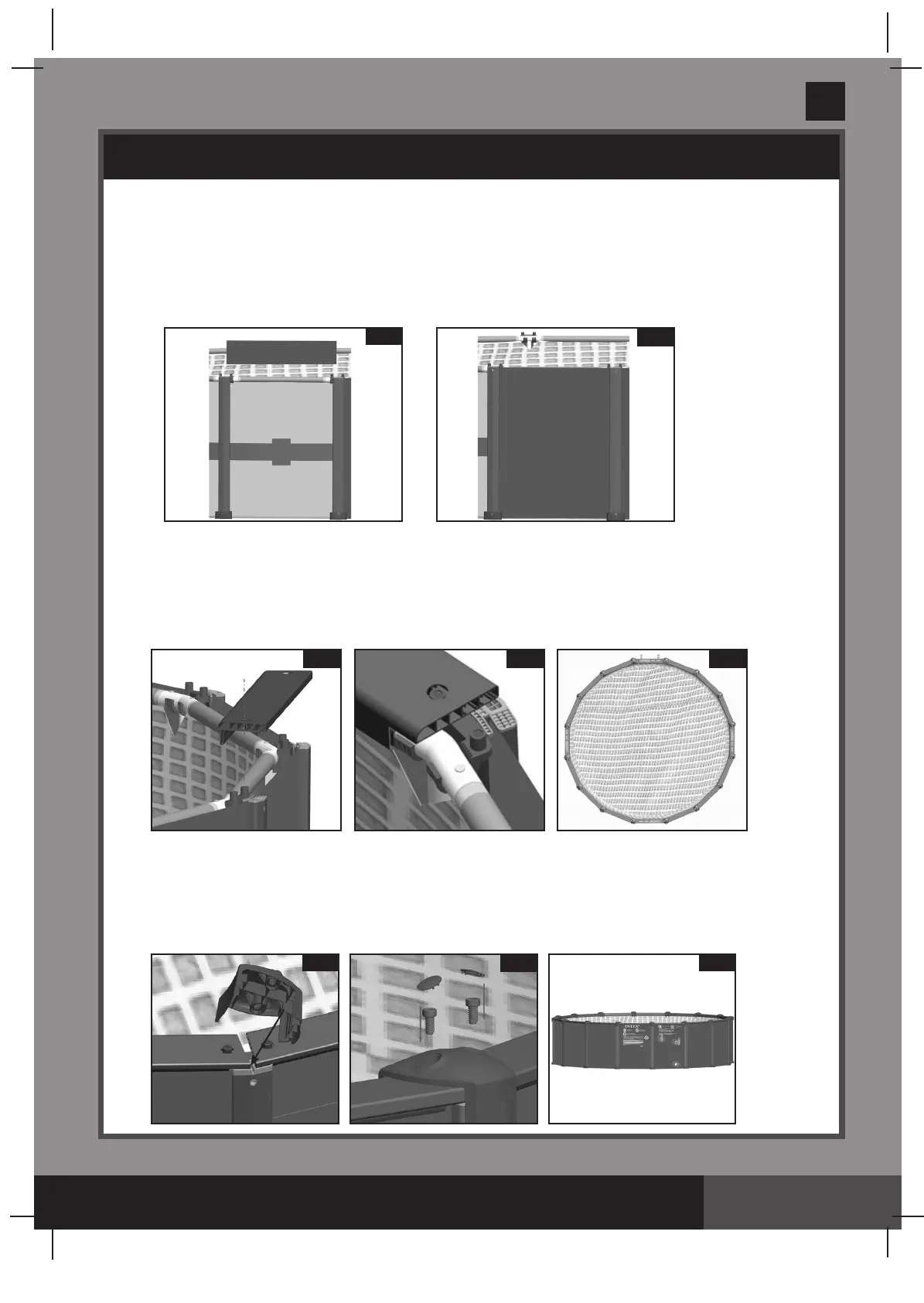

POOL ENCLOSURE SETUP (continued)
4c. Other side panel installation
• For 49” height pool, install the rest of the side panels by using eight pieces of side boards A
(20)
each.
For 53” height pool, install the rest of the side panels by using one piece of side board B
(21)
at the
bottom plus eight pieces of side boards A
(20)
each. Install the side boards one by one from bottom to
top. Insert the groove of the first side board onto the vertical edge of the bottom rail, and the groove
of the other side boards onto the tongue of each previous board. The side boards with wood veins
printed need to be faced outward (see drawings 13.1 & 13.2).
5. Top Board Installation
Attach the top board
(15)
on the top of the side panel, with the holes at its two ends aligning with the nuts
on the top clamps
(16)
. Make sure the groove underneath the top board fits firmly onto the tongue of the
top board
(15)
. Repeat this procedure until all the top boards are fixed to the top clamps and side boards.
NOTE:
There are four pieces of top board which are printed with warnings. Install those four top boards
three pieces apart from each other (see drawings 14.1, 14.2 & 14.3).
6. Top Clamp Cover Installation
Install the top clamp cover
(14)
where the two top boards meet. Insert the ridge of top clamp cover into
the slot on the top end of the support post. Align the top holes on top clamp cover with the nuts of the top
clamp. Insert and screw bolt
(13)
to each of the threaded holes by using the wrench
(26)
provided, and
then cover with the waterproof caps
(12)
. Repeat this procedure until all the top clamp covers are fixed to
the top clamps and support posts (see drawings 15.1, 15.2 & 15.3).
14.1
14.2
14.3
13.1
13.2
15.2
15.3
15.1
NOTE:
Drawings for illustration
purpose only.
