Intex Krystal Clear SF10220 User Manual

(179FR) MODEL SF10220 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/24/2012
179
FR
SAVE THESE INSTRUCTIONS
Page 11
English
PRODUCT SPECS & SETUP INSTRUCTIONS
PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
Power: 220-240 Volt AC
Wattage: 190 W
Maximum working pressure: 2.4 bar (35 psi)
Effective filtering area: 0.07 m
2
(0.8 ft
2
)
Maximum Flow Rate: 3500 liters/hour (925 gallons/hour)
Recommended filtering media: No. 20 silica sand or glass sand. Particle size
(Not included) range 0.4 to 0.8 mm (0.016 to 0.031 inches).
Uniformity Coefficient less than 1.75.
Recommended filtering media quantity: No. 20 silica sand 18 Kg (40 Lbs) or glass sand
12 Kg (26 Lbs).
Limited Warranty: see “Limited Warranty”
NOTE: NOT SUITABLE FOR USE WITH KCP-LOW -SALT AUTOMATIC SALTWATER
SYSTEM (MODEL 6110/6220 )
The sand filter removes suspended particles but does not sanitize your pool.
Pool chemistry is a specialized area and you should consult your local pool
service specialist for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• Thesystemmustbeinstalledonasolidlevelandvibration-freebase.
• Providealocationprotectedfromtheweather,moisture,floodingand 
freezing temperature.
• Provideadequateaccess,spaceandlightingforroutinemaintenance.
• Pumpmotorrequiresfreecirculationofairforcooling.Donotinstall 
the pump in a damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
Motor pre-filtering assembly setup:
1. Remove the sand filter and its accessories
from the packaging carefully and inspect for
any visible damage. If parts are damaged
contact your local service center listed at
the back of this owner’s manual.

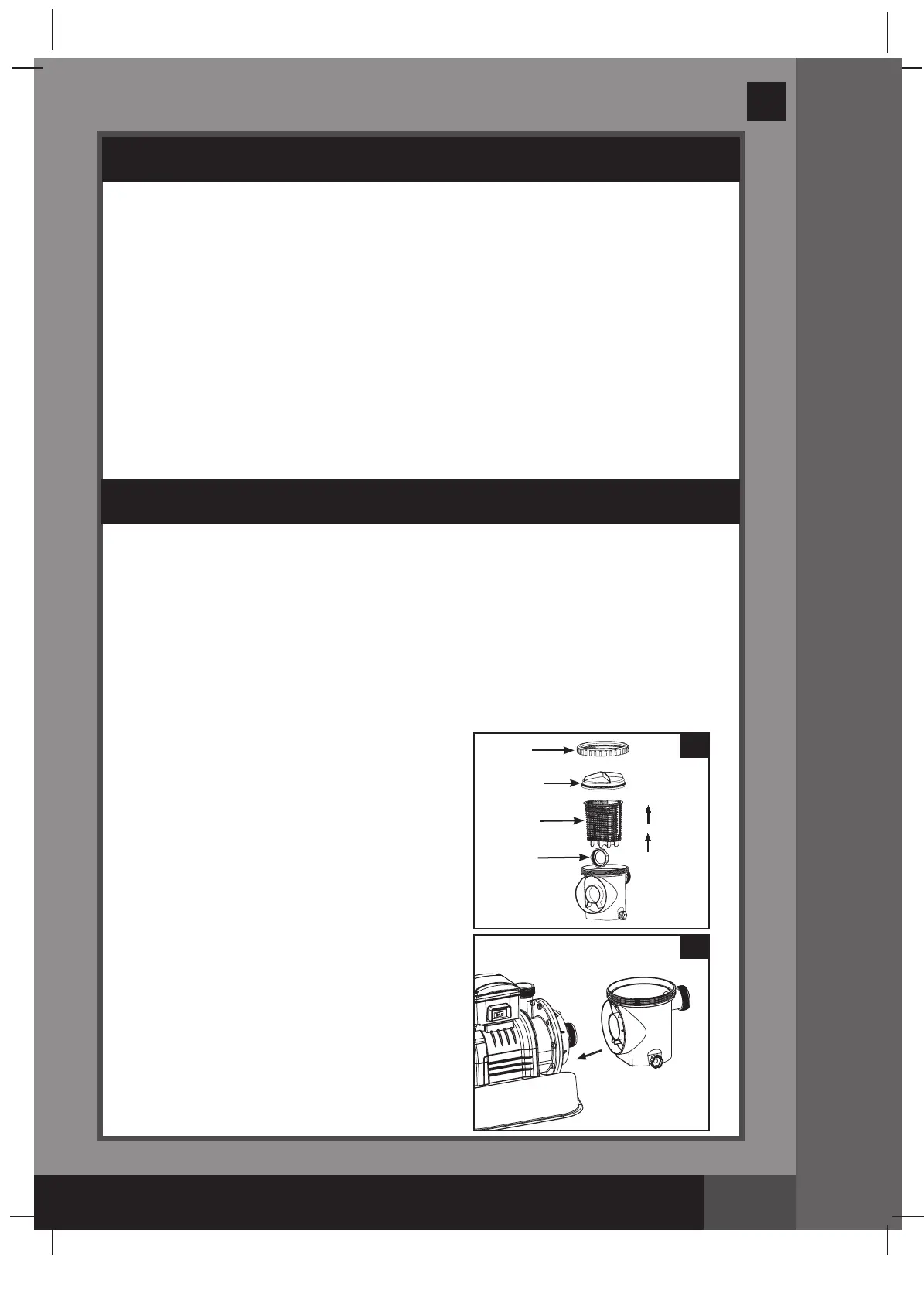

2. In a counter-clockwise motion unscrew the
leaf trap cover (14) from the pre-filter
housing. Take out the basket (16) and filter
housing nut (17) (see drawing 10).
3. Connect the pre-filter housing to the motor
water inlet. Note: Align the connector in the
pre-filter housing with the water inlet on the
motor (see drawing 11).
10
11
14
17
16
35
