261A
SAVE THESE INSTRUCTIONS
(261IO) Sand Filter Pump & Saltwater System with Electrocatalysis Oxidation (14” & 16”) ENGLISH 7.5” X 10.3” PANTONE 295U 05/25/2018
English

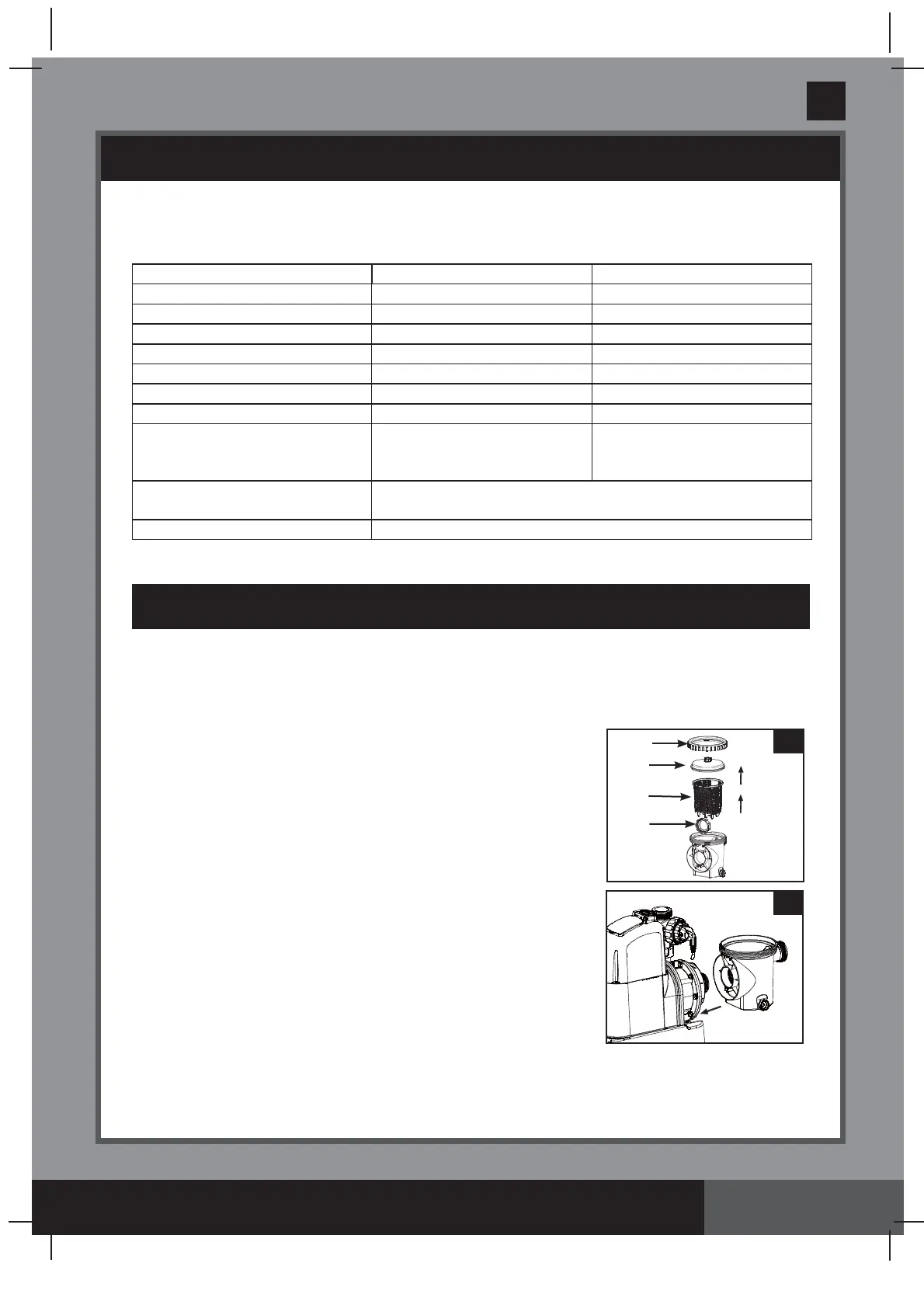

Page 8
PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
The sand filter removes suspended particles and sanitize your pool. Pool chemistry is a
specialized area and you should consult your local pool service specialist for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• The system must be installed on a solid level and vibration-free base.
• Provide a location protected from the weather, moisture,
flooding and freezing temperature.
• Provide adequate access, space and lighting for routine
maintenance.
• Pump motor requires free circulation of air for cooling.
Do not install the pump in a damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
The appliance is intended only for household use.
Motor pre-filtering assembly setup:
1.
Remove the sand filter and its accessories from the
packaging carefully and inspect for any visible damage.
2.
In a counter-clockwise motion unscrew the leaf trap cover
(14)
from the pre-filter housing. Take out the basket
(16)
and filter
housing nut
(17) (see drawing 10)
.
3.
Connect the pre-filter housing to the motor water inlet.
Note: Align the connector in the pre-filter housing with the
water inlet on the motor
(see drawing 11)
.
10
11
14
17
16
40
Model: ECO20220-1/ECO20230-1 ECO15220-1/ECO15230-1
Wattage: 650 W 350 W
Ideal Salt Level: 3000 ppm (parts per million) 3000 ppm
Maximum Sanitizer Output/hour: 11 grams/hour 7 grams/hour
Secondary Cell Output Current: 800mA 500mA
Maximum working pressure:
2 bar (30 psi) 2 bar (30 psi)
Effective filtering area: 0.13 m
2
(1.44 ft
2
) 0.1 m
2
(1.1 ft
2
)
Pump flow rate (at pump outlet):
10.0 m
3
/h (2650 GPH) 6.0 m
3
/h (1600 GPH)
Recommended filtering
media quantity:
No. 20 silica sand 45 Kg
(100 Lbs) or glass sand 32 Kg
(70 Lbs).
No. 20 silica sand 25 Kg
(55 Lbs) or glass sand 18 Kg
(40 Lbs).
Recommended filtering
media (Not included):
No. 20 silica sand or glass sand. Particle size range 0.45 to 0.85
mm (0.018 to 0.033 inches). Uniformity Coefficient less than 1.75.
Limited Warranty: see “Limited Warranty”
