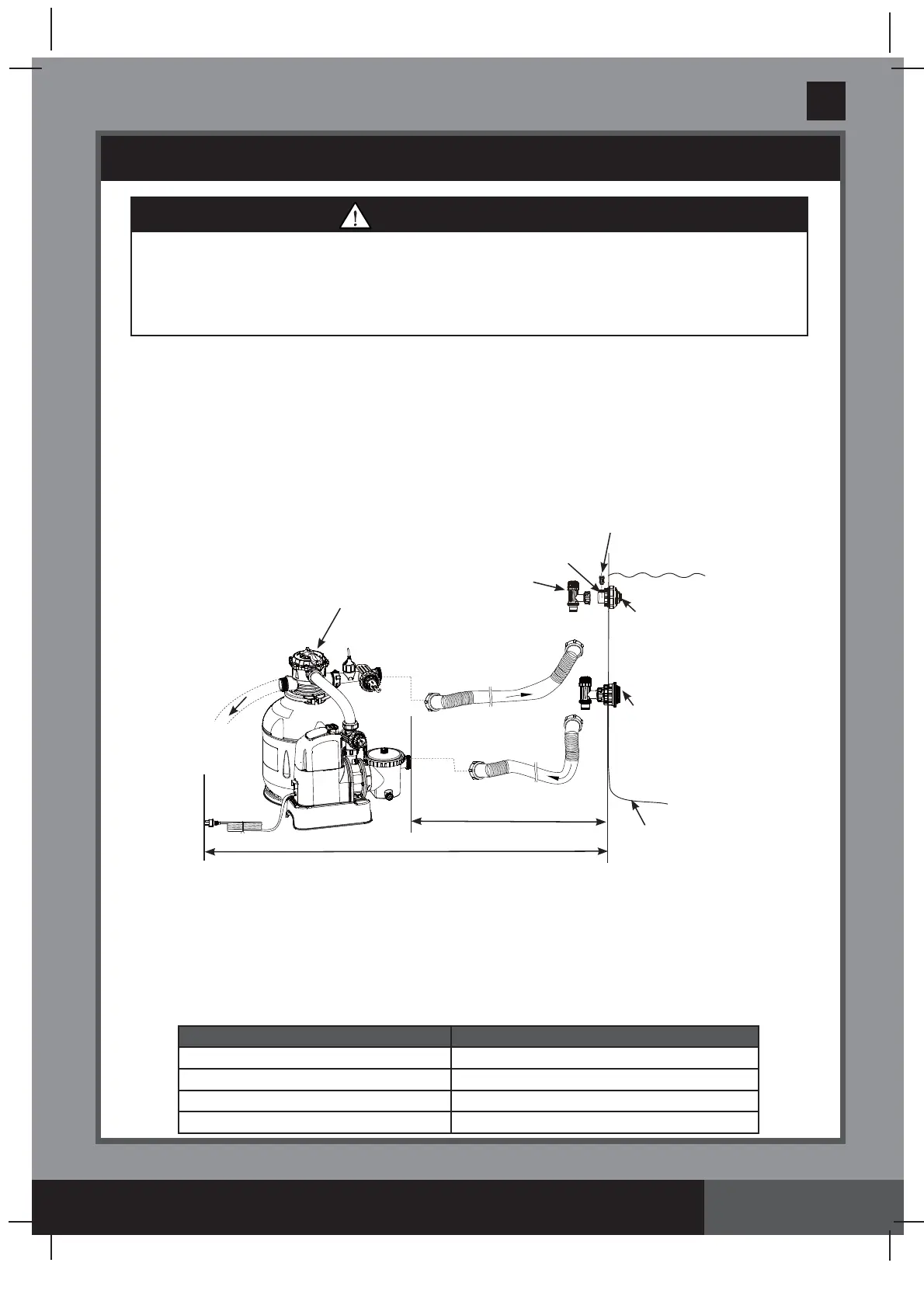

SAND FILTER PUMP HOSE CONNECTION SETUP
The 6-way valve has three hose connection ports.
1.
Connect one hose
(12)
end to the pre-filter inlet and the other end of the hose to the lower
plunger valve with the strainer. Ensure the hose nuts are securely tightened.
2.
Connect the second hose
(12)
between the electrolytic cell outlet and the upper plunger valve
with the inlet-nozzle. Ensure the hose nuts are securely tighten.
3.
The third hose connection port (drain/waste outlet) on the 6-way valve shall be directed to
a proper draining receptacle using a hose or pipe (not provided). Remove the drain cap before
attaching the drain/waste hose or pipe.
4.
The sand filter pump is now ready to filter the pool.
WARNING
• Keep this product more than 2 m away from the pool.
• Keep this product more than 3.5 m away from the pool (for France only).
• Keep the plug of this product more than 3.5 m away from the pool.
• Position this product away from the pool, so as to prevent children
from climbing on it and accessing the pool.
(ILLUSTRATION NOT TO SCALE)
According to the International Standard, IEC 60364-7-702, on electrical installation of swimming
pools and other basins equipment, the following installation distances must be respected:
• The filter pump must be positioned more than 2m away from the pool walls.
• The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 3.5 m away from the pool walls.
Check your local authorities to determine the appropriate standard and requirements for “electrical
installation of swimming pools and basins equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region
Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702
WATER LEVEL
>3.5M
>2M
6-WAY VALVE
ADJUSTABLE POOL INLET
JET NOZZLE
THREADED
STRAINER
CONNECTOR
OUTSIDE
LINER WALL
PLUNGER
VALVE
TO
DRAIN
INLET THREADED AIR
CONNECTOR
AIR JET VALVE
