Introspect E Series User Manual

Q U I C K S T A R T H A R D W A R E D E S C R I P T I O N
SV4E-I3C I3C Test and Debug Module
I N T RO S P E C T . C A
4
HARDWARE DESCRIP TION

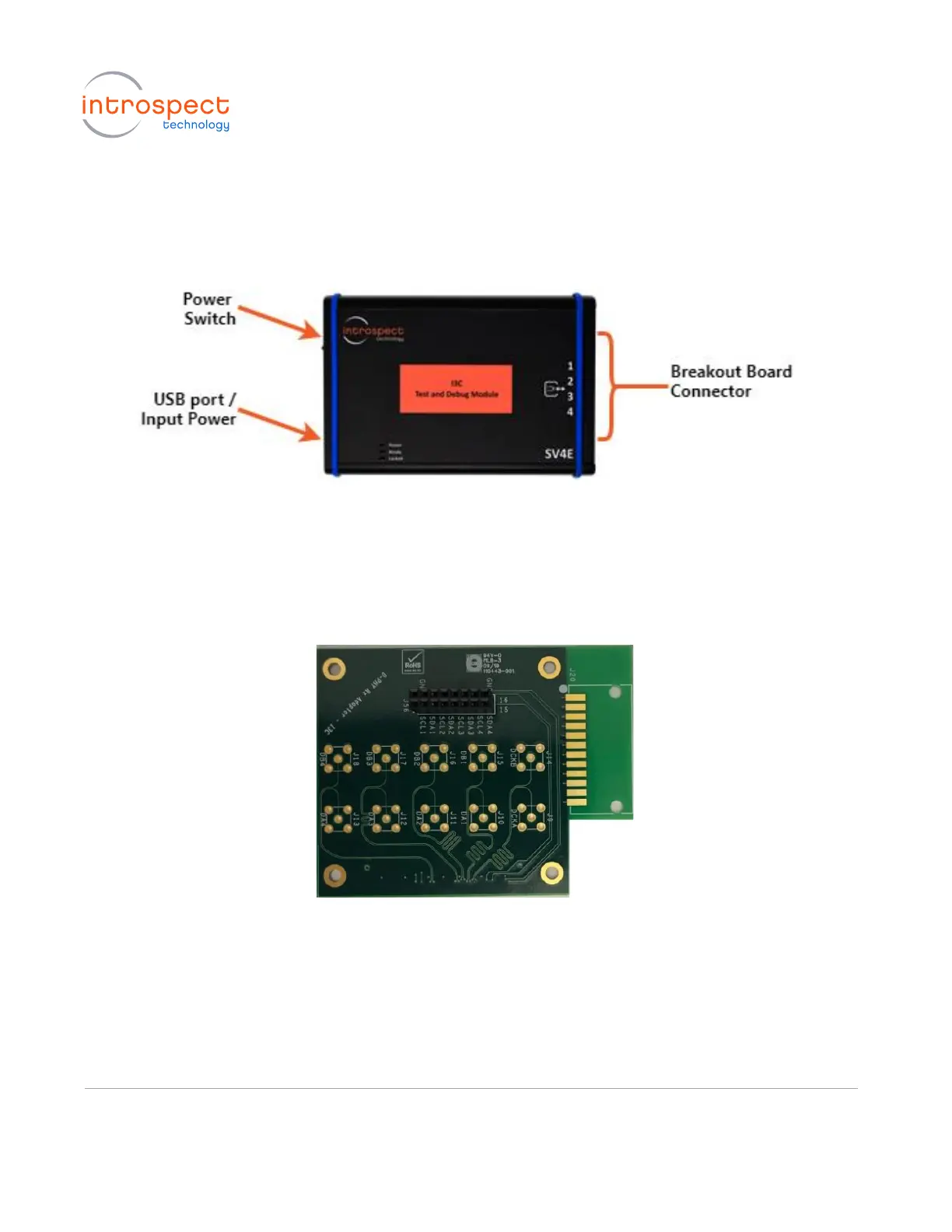

The following figure shows a diagram of the physical ports of the SV4E-I3C module.
The I3C Adapter for SV4E breakout board shown below is used to connect the different internal I3C
devices together or to connect internal I3C devices to external devices. For example, if you want to use
two internal devices, a master and a slave, connect SCL1 to SCL2 and SDA1 to SDA2, as will be shown in
the upcoming test example.
