SECTION 2—PARTS AND INSTALLATION
Recessed Side Entry Bath Tubs 14 Part No 1150695
SECTION 2—PARTS AND
INSTALLATION
Parts Information
Forpartsinformation,pleasecontactICCGTechnicalServiceat(800)668‐2337.
About Installation
 WARNING
Access for servicing the tub MUST be provided. If necessary, install a service access
panel in the wall with a minimum size of 16 x 14-inches.
CAUTION
The door MUST be closed and latched during installation to avoid deformation of
the tub shell.
DO NOT lift the tub by the plumbing.
DO NOT remove or relocate the pump. Modifications to the pump location may
cause the system to malfunction and will void the warranty.
NOTE:Forthisprocedure,refertoFIGURE 2.1.
Thetubsaredesignedtobebuilt‐inagainstone,twoorthreewalls,muchthesameway
atraditionaltub/showerunitisinstalledinanalcove.Optionalendpanelsareavailable
forcorneroronewallinstallationandareonlyavailableatthetimeoftuborder.

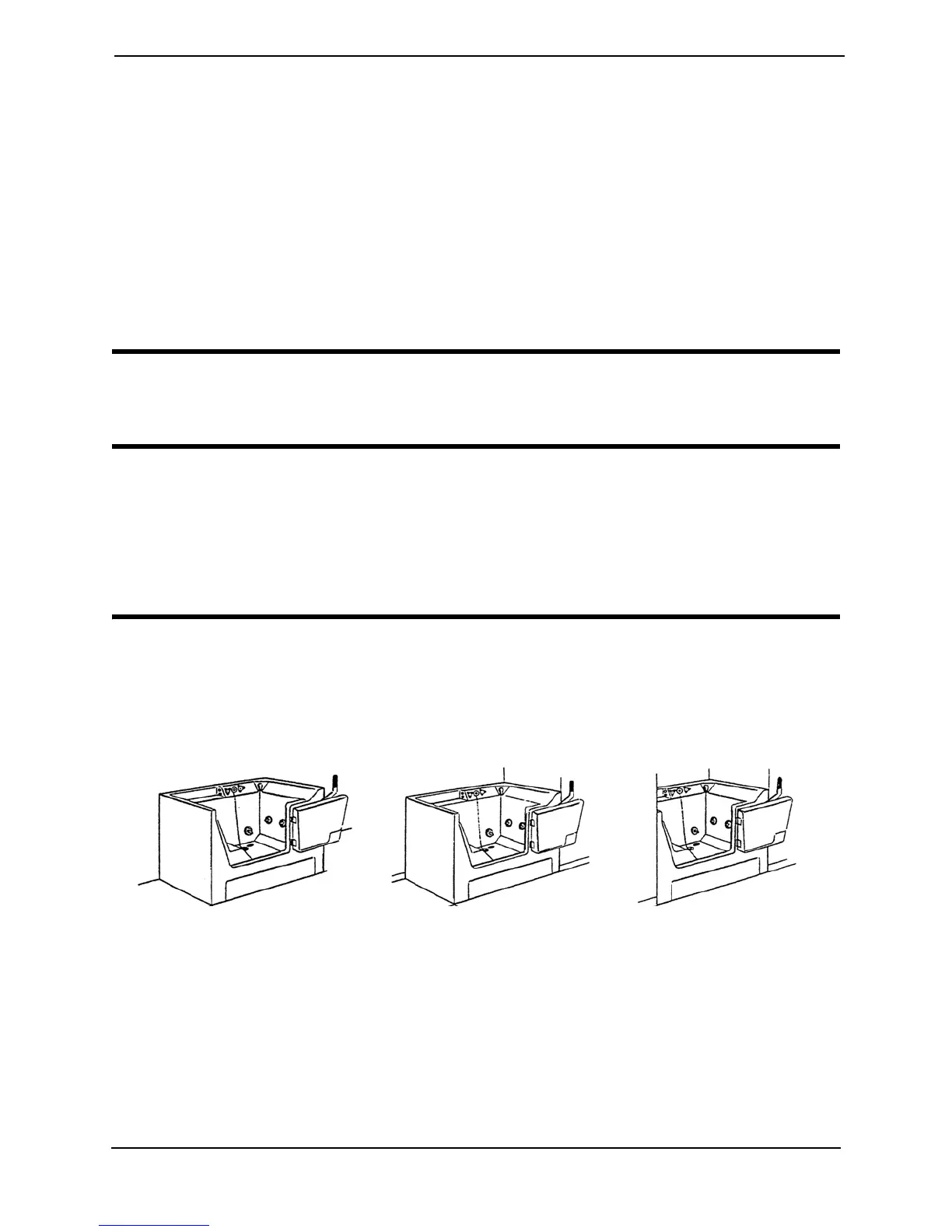

FIGURE 2.1 Tub and surrounding wall configurations
One Wall Installation -
Wall Mount
Two Wall Installation -
Corner Mount
Three Wall Installation -
Recess Mount
