SECTION 2—PARTS AND INSTALLATION
Part No 1150695 17 Recessed Side Entry Bath Tubs
Electrical and Plumbing Hook-up Locations on the Tub
NOTE:Forthisprocedure,refertoFIGURE 2.5onpage17.
NOTE:ForinstallationdetailsrefertoElectricalInstallationonpage 18andPlumbing
Installationonpage 20.

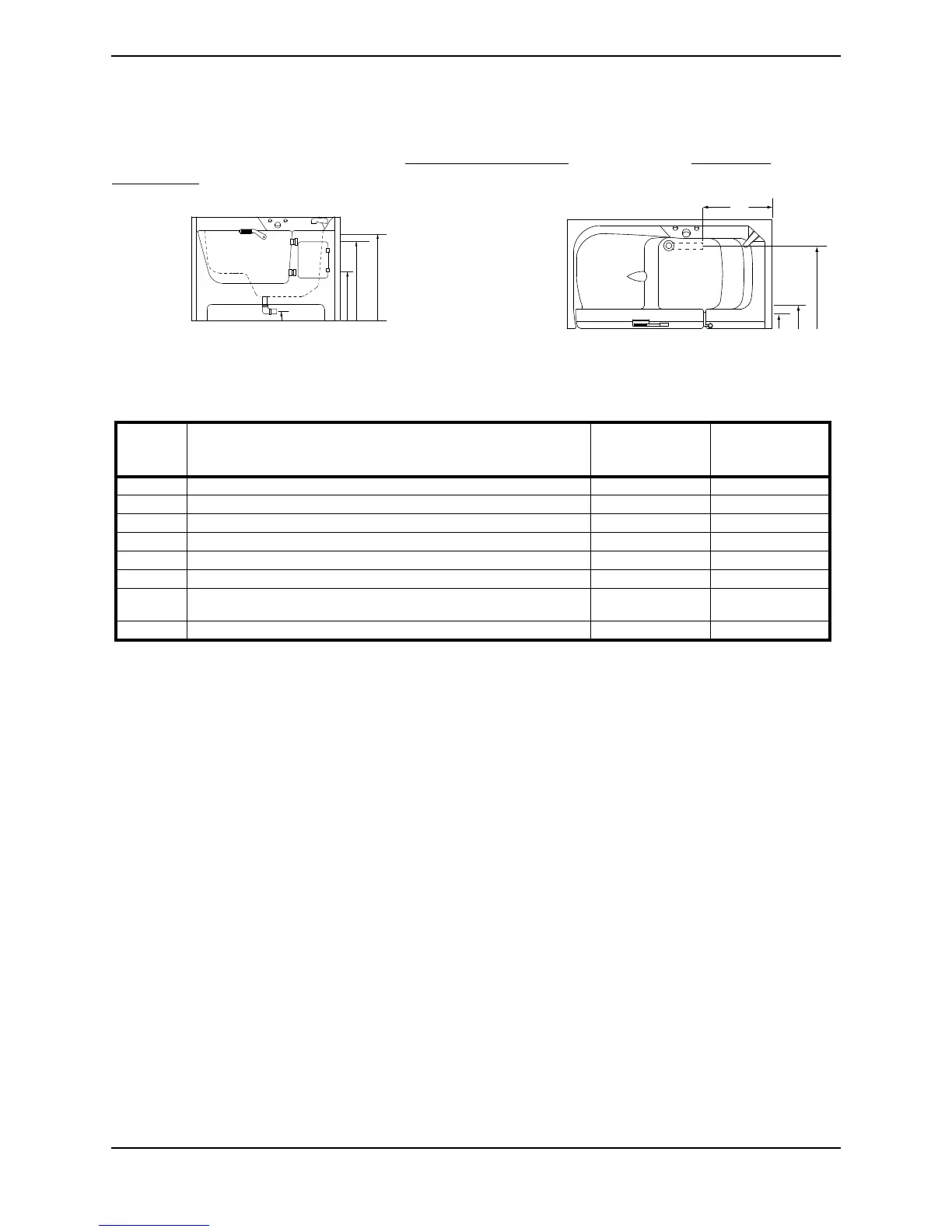

FIGURE 2.5 Electrical and Plumbing Hook-up Locations on the Tub
A
Top
View
Front
View
NOTE:Model3750shown.
LETTER DESCRIPTION MODEL 3750
DIMENSIONS
IN INCHES
MODEL 3800
DIMENSIONS
IN INCHES
A Height of Motor (Electrical) Input (115V AC, 60 Hz, 15A) 18 18
B Height of ¾-inch Hot Water Stub with Recommended Shut Off Valve 31 31
C Height of ¾-inch Cold Water Stub with Recommended Shut Off Valve 34 34
D Height of 2-inch Drain Pipe (Center) from Floor 5.25 5.25
E Distance of End of 2-inch Drain Pipe from Right End of Tub 20 15
F Distance of Motor Input (115V AC, 60 Hz, 15A) from Front of Tub 7 7
G
Distance of ¾-inch Hot and Cold Water Stubs with Recommended
Shut Off Valves from Front of Tub 8 8
H Distance of End of 2-inch Drain Pipe from Front of Tub 21.5 17
BCD
E
FG H
