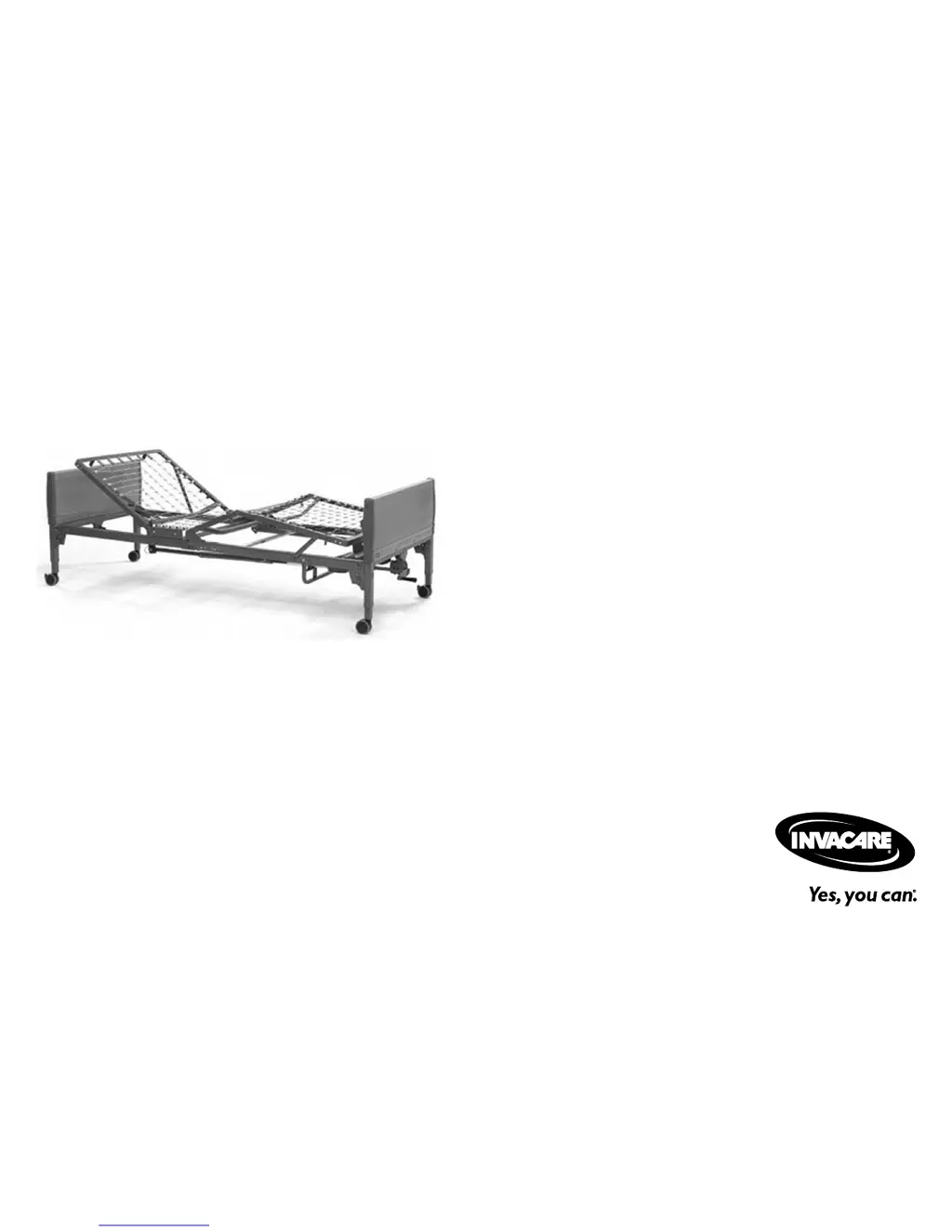

Invacare 5310IVC - User Manual

Questions and Answers

G
Gregory UnderwoodAug 16, 2025
What to do if Hi/Lo function on my Invacare Full Electric Bed doesn't work?
- A
  Angela LeeAug 16, 2025
  If the Hi/Lo function isn't working, first ensure the power cord is plugged into a power source. Check that the pendant is correctly connected to the junction box and that the pendant cable isn't entangled or pinched. Also, check the cables for entanglement or pinching. Verify the household fuse/breaker box. If none of these steps work, allow the bed unit to sit for 30 minutes and retry. If the issue persists, it may be due to a broken cable lock or malfunctioning motors, in which case you should call your dealer.
M
Michael HudsonAug 18, 2025
What to do if my Invacare Indoor Furnishing bed spring won't stop moving?
- M
  Melissa WillisAug 19, 2025
  If the bed spring doesn't stop moving, check the pendant for depressed or stuck buttons. If a button is stuck, call your dealer for repair.
M
masoncoltonAug 22, 2025
How to fix Invacare Indoor Furnishing bed that does not stay in place?
- A
  anne46Aug 22, 2025
  If the bed does not stay in place, the casters might be unlocked. Make sure to lock the casters.
L
lfloresAug 25, 2025
What causes Invacare Indoor Furnishing bed Hi/Lo movement not to stop?
- T
  Timothy ScottAug 26, 2025
  If the bed Hi/Lo movement does not stop, check the cables for damage. If the cables are damaged, call your dealer.
R
Richard HallAug 28, 2025
What to do if my Invacare Indoor Furnishing bed spring does not move?
- D
  David HodgesAug 28, 2025
  If the bed spring does not move, you may have reached the end of the stroke. Try operating the opposite button.
C
christopher54Aug 31, 2025
Why don't the bed springs on my Invacare Indoor Furnishing move?
- S
  shelia09Aug 31, 2025
  The pull tube(s) might be binding. Check the pull tube(s) and call your dealer for repairs. If you have manual beds, the cranks might not be working, in which case you should also call your dealer.
M
Michele StevensonSep 2, 2025
What to do if pressing a function on my Invacare Indoor Furnishing pendant results in unintended motion?
- M
  mallory10Sep 3, 2025
  If pressing a function on the pendant results in motion other than that intended, the motor cable connections to the junction box might be incorrect. Call your dealer.
J
jedwardsSep 5, 2025
Why are the bed ends on my Invacare Indoor Furnishing moving in opposite directions?
- G
  Gregory JohnsonSep 6, 2025
  If the bed ends are moving in opposite directions, the drive shaft may be connected to the wrong gear box shaft. Contact your dealer.
H
hallrobertSep 8, 2025
What to do if the Hi/Lo function on my Invacare Indoor Furnishing doesn't work?
- C
  Christine HaleSep 8, 2025
  If the Hi/Lo function does not work, the crank might not be properly installed, or the drive shaft might be disconnected. Call your dealer.
J
Jonathan DavisSep 12, 2025
What to do if my Invacare Indoor Furnishing bed is making unusual sounds?
- M
  Melissa LopezSep 12, 2025
  If the bed is producing unusual sounds, burning odors, or movement deviations are observed in the controls, motors, or the limits switch functions, the motors may not be functioning properly. Call your dealer.

Summary

General

1.1 Symbols

Defines signal words (DANGER, WARNING, CAUTION) used for hazards and warnings in the manual.

1.2 Intended Use

Specifies the bed's purpose as a mattress support system for patient positioning.

Overview

2.1 Label Locations

Identifies the location of important warning labels and the pendant cord on the bed.

2.2 Technical Specifications

Lists detailed technical specifications for the Invacare Full Electric 5410IVC, 5411IVC bed.

2.3 Accessories and Accessory Weight

Provides a list of available accessories and their corresponding weights for reference.

2.4 Operating Conditions

Outlines recommended conditions for storage, shipping, and operation of the bed.

Safety

3.1 General Guidelines

Presents crucial general safety guidelines, warnings, and precautions for using the bed.

3.2 Operating Information

Details essential operating procedures and safety measures to prevent injury.

3.3 Servicing Double-Insulated Products

Explains safety requirements and precautions for servicing double-insulated products.

3.4 Disposal

Provides guidance on the proper and environmentally responsible disposal of the bed.

Set-up

4.1 Receiving

Instructions for receiving the shipment, checking cartons, and inspecting merchandise.

4.2 Unpacking

Procedures for safely unpacking the bed components and checking for damage.

4.3 Inspecting

Details how to inspect electrical and mechanical components for damage or defects.

4.4 Assembling the Head and Foot Spring Sections

Step-by-step instructions for correctly assembling the head and foot spring sections.

4.5 Assembling the Spring Fabric

Instructions for connecting the spring fabric to the bed frame using provided links.

4.6 Adjusting and Reconnecting the Head Section Pull Tube

Guidance on adjusting and reconnecting the head section pull tube to the lift arm.

4.7 Installing the Casters

Detailed instructions for properly installing the bed casters, including locking mechanisms.

4.8 Assembling the Universal Bed Ends

Step-by-step guide for assembling the universal bed ends onto the bed frame.

4.9 Installing Low Bed Ends

Specific requirements and procedures for installing low bed ends onto the bed.

4.9.1 Installing the Casters onto the Low Bed Ends

Instructions for installing casters specifically for the low bed ends.

4.10 Assembling;Installing;Removing Drive Shaft

Guides on how to assemble, install, and remove the drive shaft for bed functions.

4.11 Inspecting the Bed

Procedures for inspecting electrical components, connections, and wiring for safety.

4.11.1 Installing;Removing Cable Lock

Step-by-step instructions for installing and removing the cable lock for securing cables.

4.11.2 Installing the Manual Crank for Hi;Lo Function

Instructions for installing the manual crank for the Hi/Lo bed function.

4.11.3 Installing;Removing the Pendant

Procedures for installing and removing the pendant control for the bed.

Operation

5.1 Bed Operation and Component Overview

An overview of the bed's operation and its main components, including safety notes.

5.2 Operating Full Electric Bed

Detailed instructions for operating the full electric bed using the six-function pendant.

5.3 Operating the Semi-Electric Bed

Instructions for operating the semi-electric bed using its pendant and hand crank.

5.3.1 Using the Emergency Crank

Guidance on how to properly use the emergency crank in case of power failure.

5.4 Operating the Manual Bed

Instructions for operating the manual bed using its hand cranks.

5.5 Optional Bed Rails

Safety warnings and installation guidelines for optional bed rails.

Maintenance

6.1 Service Life

Information regarding the expected service life of the bed and maintenance importance.

6.2 Wear and Tear Items

Lists components that are subject to normal wear and tear during usage.

6.3 Cleaning the Bed

Provides instructions and safety precautions for cleaning the bed components.

6.4 Maintenance and Cleaning Checklist

A comprehensive checklist for conducting regular maintenance and cleaning procedures.

Troubleshooting

7.1 Troubleshooting Mechanical

Lists common mechanical problems with the bed and their corresponding solutions.

7.2 Troubleshooting Electrical

Lists common electrical issues with the bed and their corresponding solutions.

Warranty

8.1 Limited Warranty

Outlines the terms, conditions, limitations, and duration of the product warranty.

Invacare 5310IVC Specifications

General

Product Type	Hospital Bed
Model	5310IVC
Brand	Invacare
Weight Capacity	450 lbs
Adjustable Height	Yes
Head and Foot Adjustment	Yes
Wheels	Yes
Side Rails	Optional
Power Source	Electric
Mattress Size	80" x 36"
Type	Full Electric
