Ben 9 Plus
Page 2.6
04/02

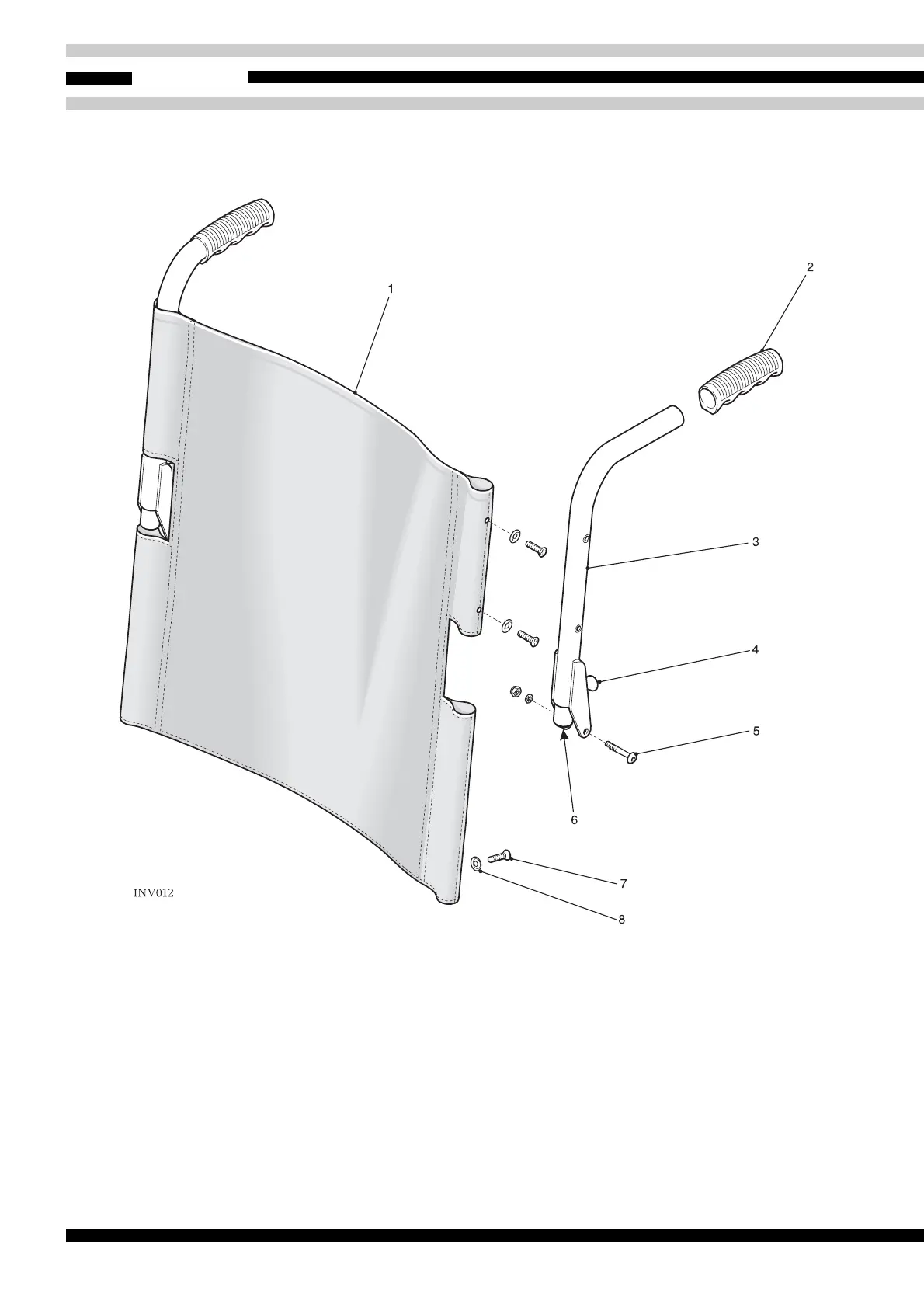

Figure 2.1 Folding Backrest Assembly
1 Backrest canvas 5 Pivot bolt
2 Hand grips 6 Plunger
3 Push handles 7 Countersunk screw
4 Plunger knob 8 Cup washer
