Ben 9 Plus
Page
2.8
04/02

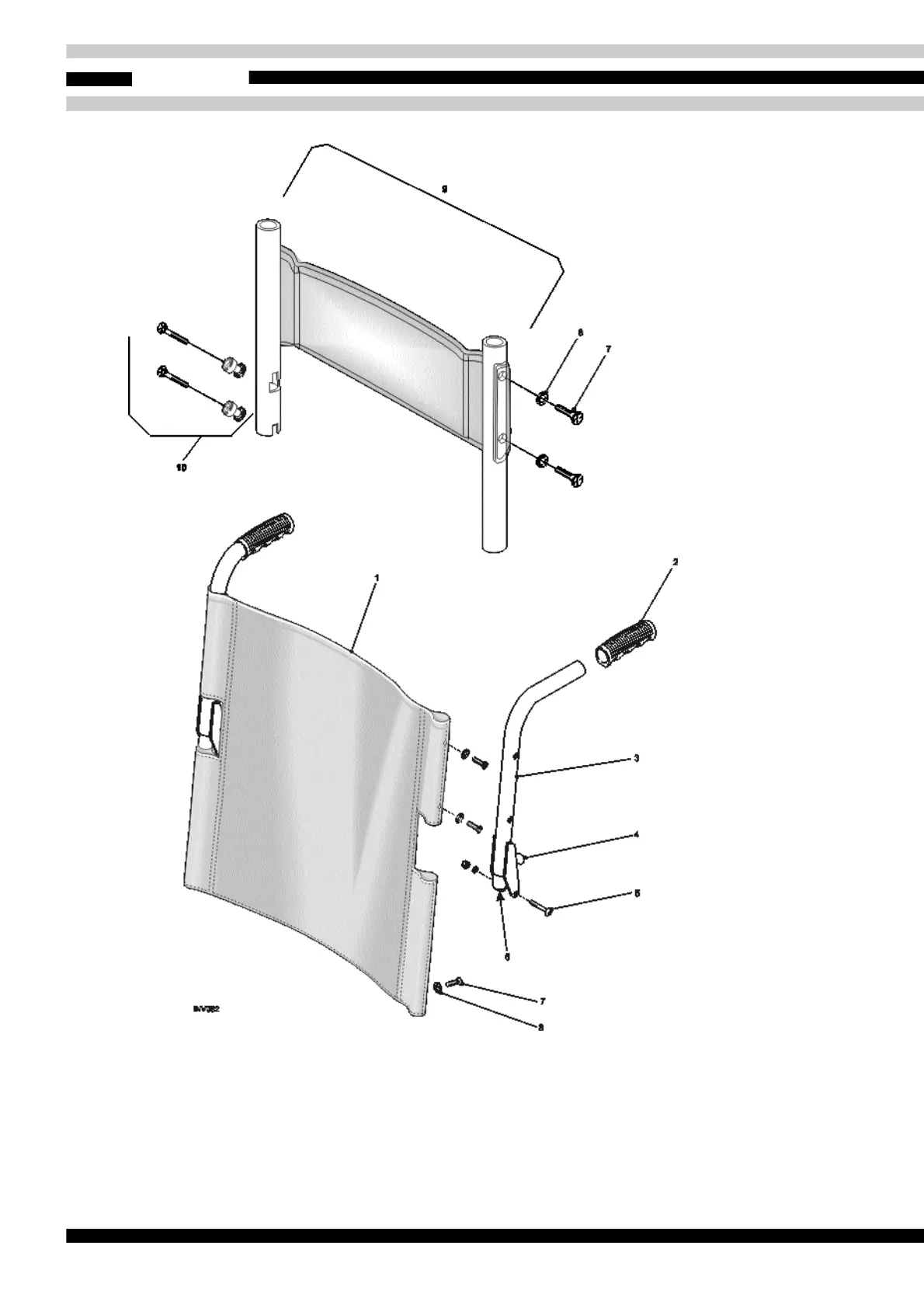

Figure 2.1.1 Backrest Extension Assembly
1
Backrest canvas
6
Plunger
2
Hand grips
7
Countersunk screw
3
Push handles
8
Cup washer
4
Plunger knob
9
Backrest extension
5
Pivot bolt
10
Locating ring kit
