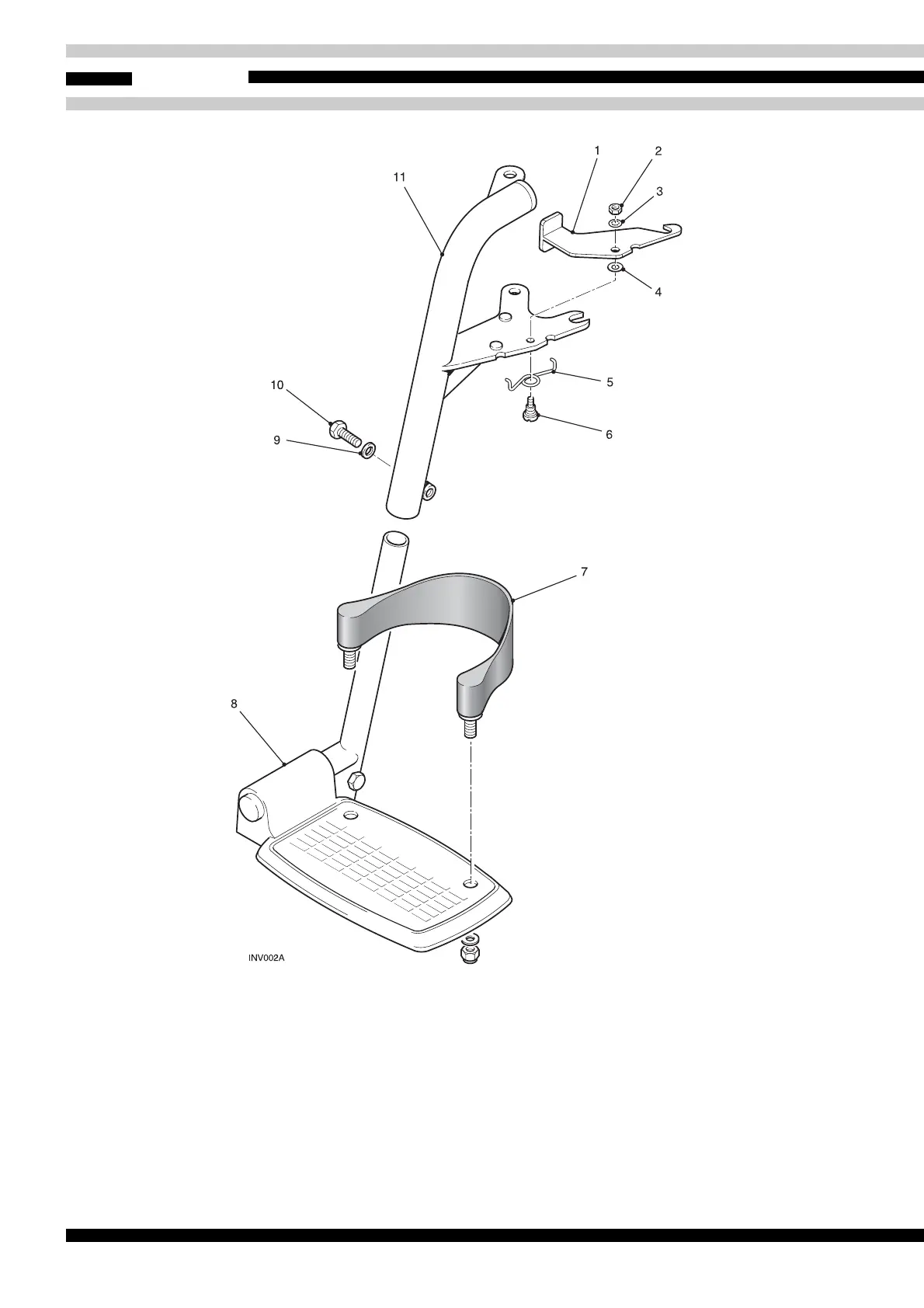

Figure 2.6 Swinging/Detachable Footrest Assembly
1 Latch plate 6 Shouldered bolt
2 Nut 7 Heel loop assembly
3 Washer 8 Foot plate
4 Shim 9 Washer
5 Spring 10 Bolt
11 Footrest bracket assembly
