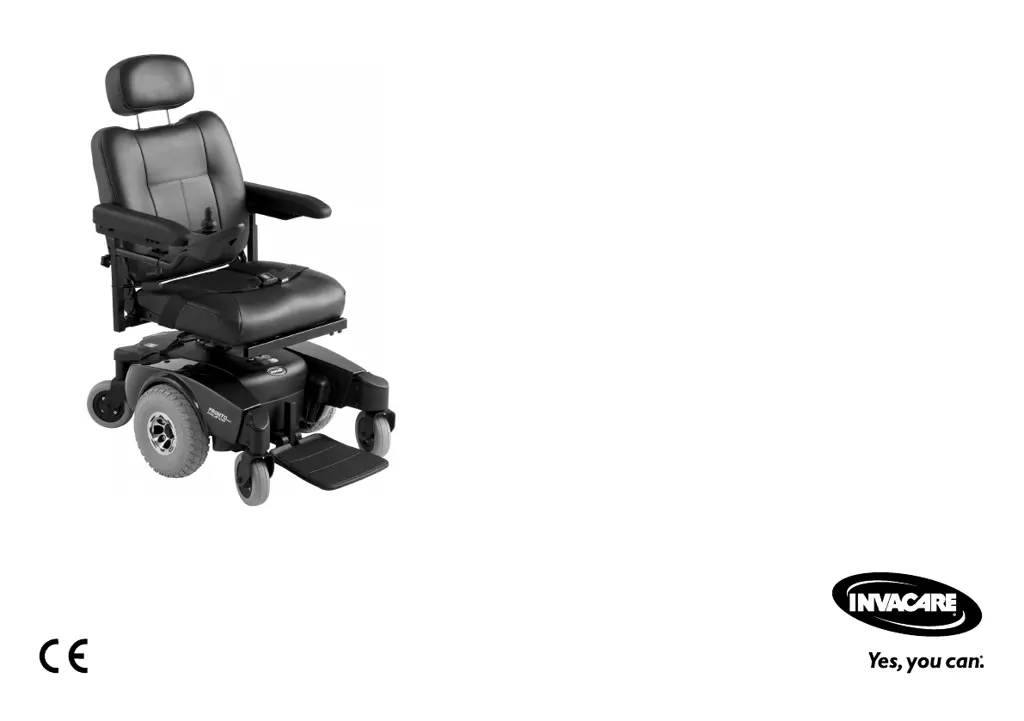

Invacare Pronto M61 - User Manual

Other manuals for Invacare Pronto M61

Service Manual28 pages

Questions and Answers

P
pamela23Sep 23, 2025
Why are there no LEDs on my Invacare Wheelchair charger?
- M
  Morgan RodriguezSep 23, 2025
  If there are no LEDs on your Invacare Wheelchair charger, it could be because the charger is not plugged into the outlet or is disconnected from the wiring harness on the mobility device. Make sure the charger is plugged into the outlet and check the wiring on the mobility device. Another possibility is that there is no AC power at the outlet, so check for AC power with a digital volt meter. Finally, a damaged power cord could be the issue, so check for damage on the power cord, replace it if damaged, or send it to Invacare for repair.
B
Briana MyersAug 25, 2025
Why does my Invacare Wheelchair have a short battery life?
- H
  Haley SpencerAug 25, 2025
  A short driving range on a single charge for your Invacare Wheelchair could be due to several reasons. Ensure you are charging the batteries for at least 8–10 hours minimum. Weak batteries can also cause this issue, so perform a load test or check the 'Battery Quality Menu' with the programmer. Additionally, check the programming settings, as torque and power level settings may be too high. Finally, consider the weight distribution on the chair, as a heavy load on the motors due to offset weight distribution (front-loaded mobility device) can also reduce battery life.
D
Daniel GarzaAug 25, 2025
What to do if my Invacare Wheelchair loses all power while driving?
- M
  Michael OlsenAug 26, 2025
  If your Invacare Wheelchair loses all power while driving, turn the power OFF, wait 10 seconds, and then turn the power back ON. This may resolve a bad connection issue.
S
Sarah FreemanAug 27, 2025
How to fix no power to the motors of my Invacare Wheelchair?
- G
  George GloverAug 27, 2025
  If there is no power to the motors of your Invacare Wheelchair, check all connections and housings for damage, as a bad connection or blown fuse could be the cause. Also, check the battery voltage and replace the batteries if necessary. Loose battery connections can also cause this issue, so check the battery cable connections, as they may have vibrated loose when driving on rough terrain.
M
Michelle JacksonAug 27, 2025
What to do if Invacare Pronto M61 Wheelchair motor fails to start after initial installation?
- S
  Stephen ScottAug 27, 2025
  If the motor on your Invacare Wheelchair fails to start after initial installation, check the batteries and recharge them if necessary, as the battery voltage may be too low. Also, check the connector for a bad connection. Ensure the brake is engaged.
A
anthonysimonSep 14, 2025
Why is my Invacare Wheelchair driving rough?
- T
  tmurphySep 14, 2025
  If your Invacare Wheelchair is driving rough, it could be due to gearbox shaft movement or a bent shaft. In this case, replace the motor/gearbox.
A
Aaron SolomonSep 12, 2025
Why is there excessive clicking coming from the Invacare Pronto M61 Wheelchair motor/gearbox?
- D
  Dr. Elizabeth HarrisSep 12, 2025
  If there is excessive clicking coming from the motor/gearbox of your Invacare Wheelchair, it could be due to a bad bearing in the motor or gearbox. Replace the motor/gearbox. Another possible cause is loose wheel hardware, so tighten the hardware (use removable Loctite™ on the hardware).
C
Christina CarrollSep 13, 2025
Why do the motors stall and start up again on my Invacare Pronto M61?
- S
  Samuel LawrenceSep 13, 2025
  If the motors on your Invacare Wheelchair stall and then start up again, it is likely due to current rollback. Stop driving and let the electronics cool down.
A
Anne MeyerSep 5, 2025
Why does my Invacare Wheelchair motor chatter or run erratically?
- C
  Cynthia BurkeSep 5, 2025
  If the motor in your Invacare Wheelchair chatters, runs erratically, or only the motor turns, it could be due to a damaged connector, worn brushes, or a bad motor or gearbox. Ohm out the motors and replace the motor/gearbox if a high reading is present (normal reading is 0–5 Ohms). Another possible cause is that the motor engaging lever is disengaged, so engage the motor engaging levers. Finally, a power module malfunction could be the issue, so check for error codes with a programmer.
K
Katie HallSep 2, 2025
Why is my Invacare Wheelchair turning sluggishly?
- K
  Krystal HarperSep 2, 2025
  If your Invacare Wheelchair has sluggish turning or performance, it could be due to incorrect or unequal tire pressure. If the tires are pneumatic, check them for correct and equal pressure. Another possible cause is loose stem nuts/bolts, so tighten them.

Summary

Safety Precautions

General Safety Notes

Covers essential safety warnings related to product usage, impairment, and accidental motion.

Electrical System Safety

Details safety precautions regarding electrical components, wiring, and potential hazards.

Driving and Freewheel Mode Safety

Care and Maintenance Safety

Adjusting Seating Posture

General Seat Adjustment Information

Guidelines for adapting the device to the user's seating needs for optimal performance and safety.

Usage and Operation

Driving the Mobility Device

Getting In and Out of the Device

Taking Obstacles

Procedures and safety precautions for navigating various obstacles with the mobility device.

Electrical System

Batteries: General Information

Information on the power source, including charging, maintenance, and usage of batteries.

Battery Charging Instructions

Battery Usage Instructions

Maintenance Procedures

Inspection Checks

Outlines regular inspection procedures to ensure the device's safety and operational status.

Inspection Before Each Use

Repair Instructions

Transporting the Mobility Device

Transferring to a Vehicle

Safe procedures and precautions for loading the mobility device into a vehicle.

Disassembling for Transport

Lifting and Stairway Procedures

Technical Data

Technical Specifications Overview

Detailed technical specifications, dimensions, weight, and performance data of the mobility device.

Invacare Pronto M61 Specifications

General

Type	Power Wheelchair
Range	15 miles
Range Per Charge	15 miles
Motor	24V DC
Tires	Solid
Weight Capacity	300 lbs
Seat Width	18"
Seat Depth	16"
Maximum Speed	4 mph
Battery	2 x 12V
Drive Wheel Size	10 inches (25.4 cm)
Battery Type	Lead Acid
Drive System	Rear Wheel Drive
Overall Width	24 inches (61 cm)
