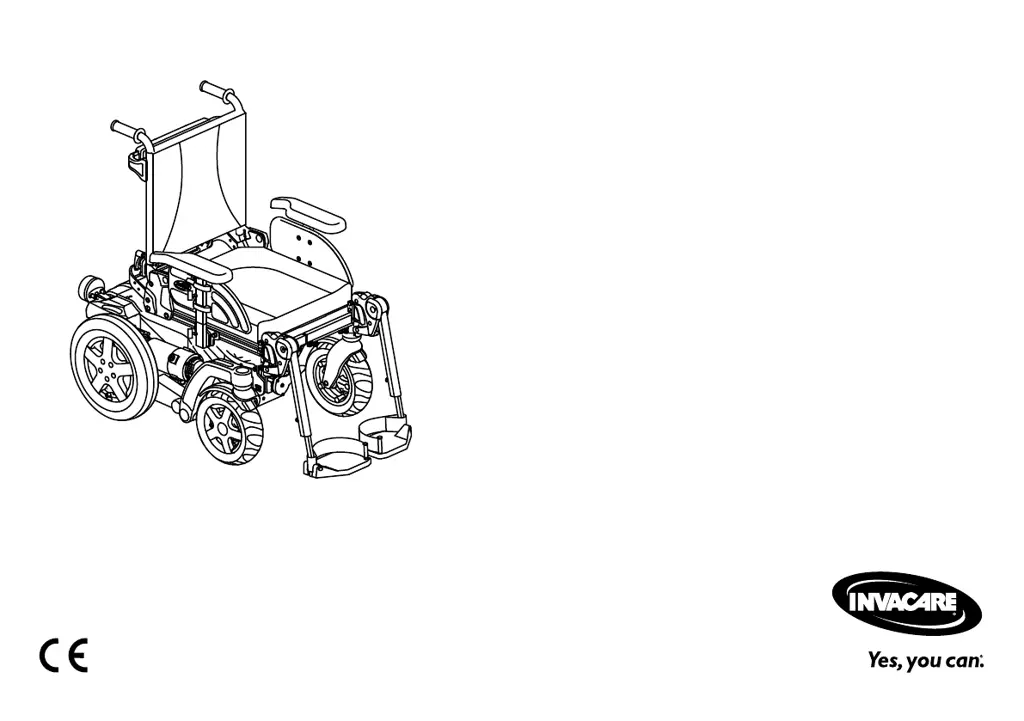

Invacare Storm 4 Series

Other manuals for Invacare Storm 4 Series

Service Manual102 pages

Questions and Answers

A
Alexandria BowenJul 27, 2025
Why Invacare Wheelchair batteries not being charged?
- K
  Katie ParkerJul 27, 2025
  If the batteries on your Invacare Wheelchair aren't charging, start by checking the cabling and replacing the fuse if it's burnt out. Defective batteries can also cause charging issues, so consider replacing them. To determine if the battery charger is the problem, use a battery charger you know is working properly. If your batteries still do not charge, send the defective battery charger to Invacare Service for repair.
R
rileykimberlyAug 2, 2025
What to do if Invacare Wheelchair motors lose power while driving?
- D
  Dean PayneAug 2, 2025
  If the motors on your Invacare Wheelchair lose power while you're driving, switch the mobility device off, wait 10 seconds, and then switch it back on. Check all the cabling to ensure there are no bad connections.
A
acarpenterAug 7, 2025
Why my Invacare Storm 4 Wheelchair will not start?
- H
  Henry LewisAug 7, 2025
  If your Invacare Wheelchair won't start, there are several potential causes. First, ensure the drive motors are engaged. If they are disengaged, engage them. Defective batteries can also prevent starting, so consider replacing them. A completely discharged battery will also prevent the device from starting; in this case, pre-charge the batteries. Check the main fuse if the power supply to the remote is interrupted. Inspect the cables between modules for loose connections or damage. Finally, the remote itself might be defective, requiring replacement.
M
Maurice SalasAug 11, 2025
What to do if Invacare Storm 4 motors stop and do not start again?
- M
  mortizAug 11, 2025
  If the motors on your Invacare Wheelchair stop and won't restart, there are several things to investigate. A high motor load might cause the power module to lower the voltage; leave the mobility device switched on and let the power module operate, then charge the batteries overnight with the device still switched on. Also, check the fuse, and replace it if it's burnt out. Inspect the carbon brushes on the motor and replace them if needed. Finally, the power module itself could be defective and require replacement.
R
Ruth MckayAug 16, 2025
How to fix Invacare Storm 4 juddering in drive mode?
- S
  samantha97Aug 16, 2025
  If your Invacare Wheelchair judders while driving, it could be due to a few reasons. The batteries might be defective, causing an unstable voltage, in which case you should replace them. Another possibility is defective drive motors, which would also require replacement. Replacing the carbon brushes is also recommended.
C
Christopher MedinaAug 21, 2025
Why my Invacare Wheelchair pulls to the left or right?
- M
  Mason EllisonAug 22, 2025
  If your Invacare Wheelchair pulls to the left or right, it could be due to drive motors running asymmetrically. Try changing the programming to synchronize the motors. Also, check the air pressure in the tires and replace the inner tube and/or valve if necessary.

Summary

Safety

General Safety Notes

Covers critical warnings for safe operation, including risks of fire, injury, and improper use.

Safety Information on Electrical System

Details safety precautions related to the mobility device's electrical components and potential hazards.

Safety Information on Driving and Freewheel Mode

Provides safety guidance for operating the device in driving and freewheel modes.

Safety Information with Regard to Care and Maintenance

Highlights risks associated with incorrect maintenance and servicing.

Safety Information Regarding Changes and Modifications

Safety Information on Wheelchairs with a Lifter

Setup

General Setup Information

Details crucial safety aspects and general guidelines for setting up the mobility device.

Adjustment Possibility for Remote

Explains how to adjust the remote's position for optimal user access and safety.

Adjustment Options for Standard Armrests

Adjustment Options for Parallel Sliding Armrests

Adjusting Manual Chin Control

Provides instructions for adjusting various chin control types like extremity joysticks and egg switches.

Adjustment Options for the Modulite Seat Unit

Adjusting the Backrest

Seat Support

Adjusting the Suspension and Shock Absorbance

Center-mounted Legrests - Adjustable Legrest

Powered Elevating Legrests (ADE Legrests)

Usage

Driving

Provides guidance on driving the mobility device, including load capacity and pre-drive checks.

Getting In and Out of the Mobility Device

Taking Obstacles

Driving Up and Down Gradients

Controls System

Controls Protection System

Batteries

Covers battery types, general charging information, and instructions for safe charging.

Transport

Transferring Mobility Device to Vehicle

Use of the Mobility Device as a Seat in a Vehicle

How the User is Secured Within the Mobility Device

Maintenance

Inspection Checks

Lists user inspection checks for daily, weekly, and monthly intervals to ensure proper function.

Technical Data

Technical Specifications

Presents detailed technical specifications including operating conditions, electrical system, and dimensions.

Service

Inspections Performed

Invacare Storm 4 Series Specifications

General

Frame Material	Steel
Folding	No
Type	Powered Wheelchair
Overall Width	640 mm
Front Caster Size	8 inches (20.3 cm)
Weight Capacity	150 kg
Maximum User Weight	150 kg
