Goodrive20 inverters Product Overview
10
Model Voltage degree
Rated
output power(kW)
Rated input
current(A)
Rated output
current(A)
GD20-022G-4 22 51 45
GD20-030G-4 30 70 60
GD20-037G-4 37 80 75
GD20-045G-4 45 98 92
GD20-055G-4 55 128 115
GD20-075G-4 75 139 150
GD20-090G-4 90 168 180
GD20-110G-4 110 201 215

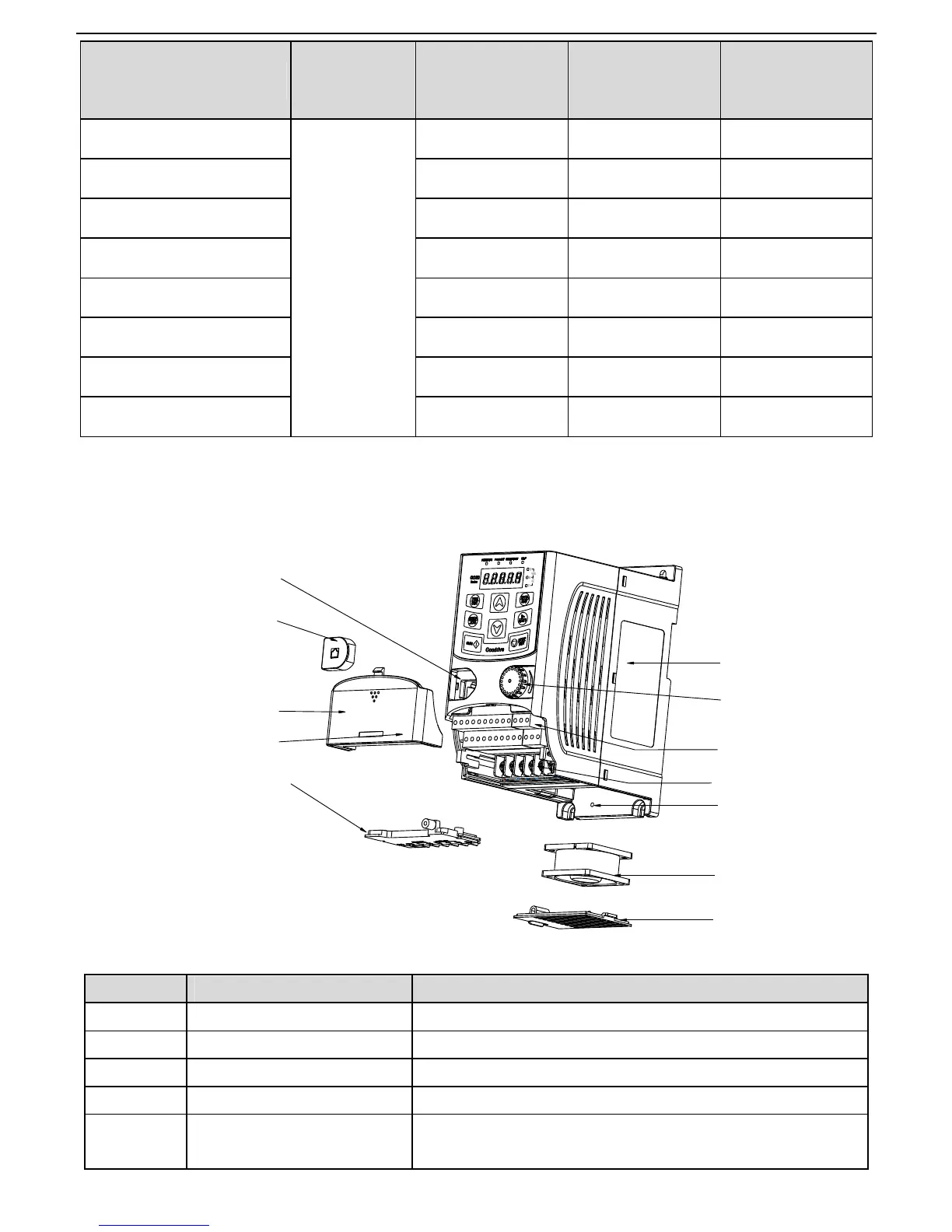

2.6 Structure diagram
Below is the layout figure of the inverter (Three phase 380V, 2.2kW) (take the inverter of 0.75kW as the
example).
6
12
8
10
7
3
2
5
1
9
11
4
Figure 2-3 Product structure (Three phase 380V, 2.2kW)
Serial No.
Name Illustration
1 External keypad port Connect the external keypad
2 Port cover Protect the external keypad port
3 Cover Protect the internal parts and components
4 Hole for the sliding cover Fix the sliding cover
5 Trunking board
Protect the inner components and fix the cables of the main
circuit
