GD200A series VFD Installation guidelines
-19-

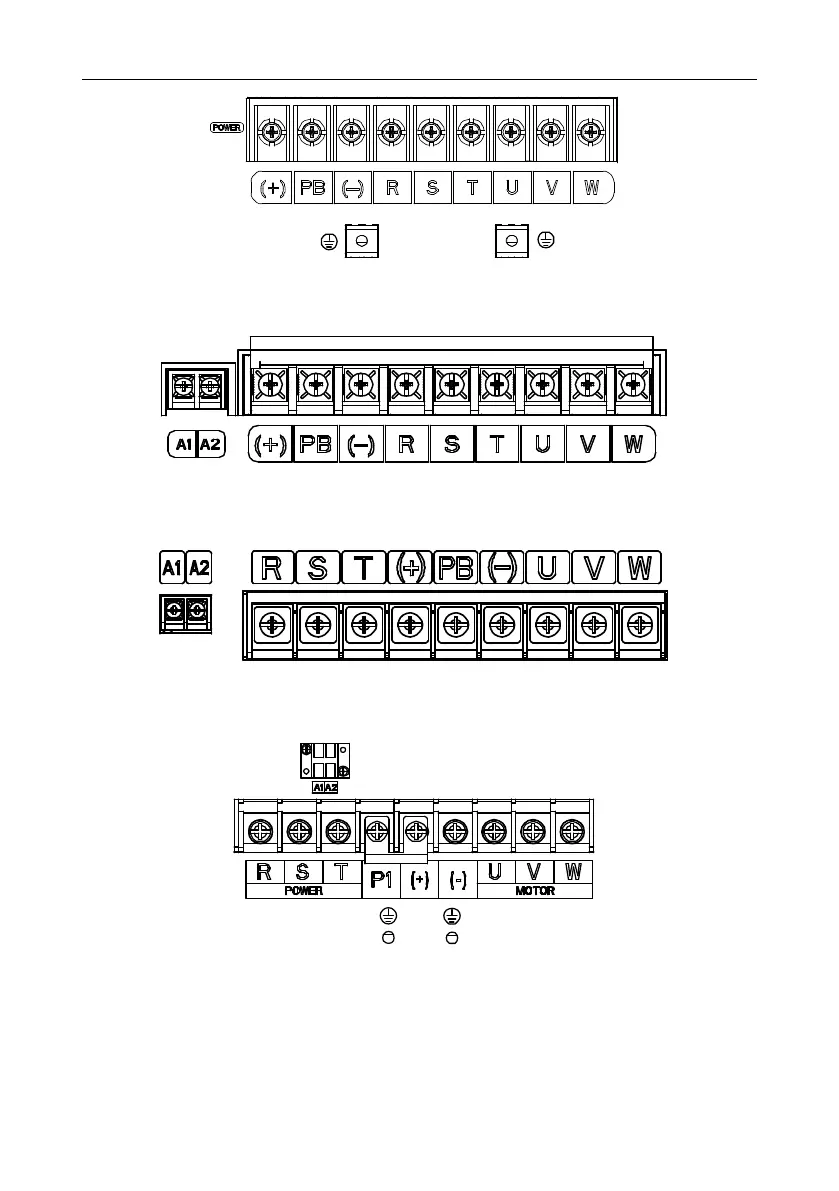

Figure 4-10 Main circuit terminals for the 7R5G/011P–015G/018P models
Figure 4-11 Main circuit terminals for the 018G/022P model
Figure 4-12 Main circuit terminals for the 022G/030P–030G/037P models
Figure 4-13 Main circuit terminals for the 037G/045P–055G/075P models
