GD200A series VFD Installation guidelines
-20-

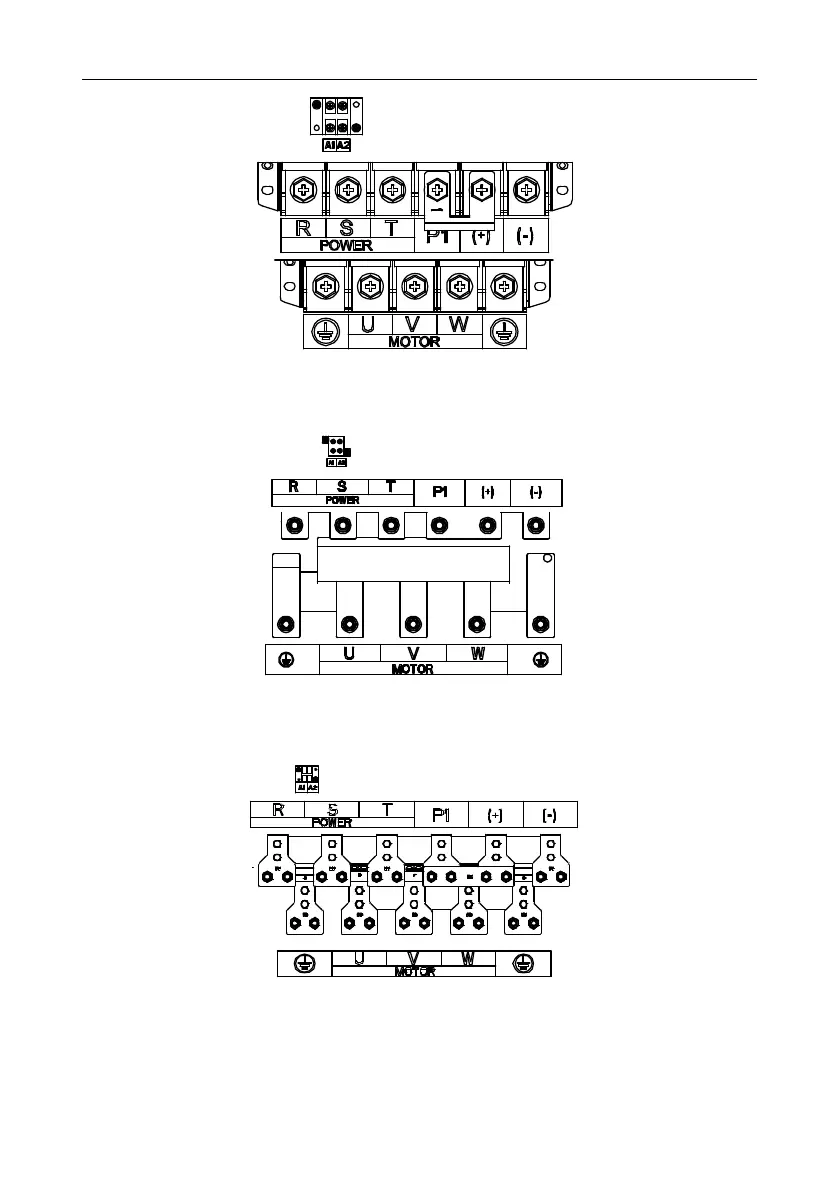

Figure 4-14 Main circuit terminals for the 075G/090P–110G/132P models
Figure 4-15 Main circuit terminals for the 132G/160P–200G/220P models
Figure 4-16 Main circuit terminals for the 220G/250P–315G/355P models
