Goodrive350 IP55 High-ingress Protection Series VFD Dimension drawings
-340-
Appendix C Dimension drawings
C.1 What this chapter contains
This chapter describes the dimension drawings of Goodrive350 IP55 high-ingress protection
series VFDs. The dimension unit used in the drawings is mm.
C.2 VFD structure

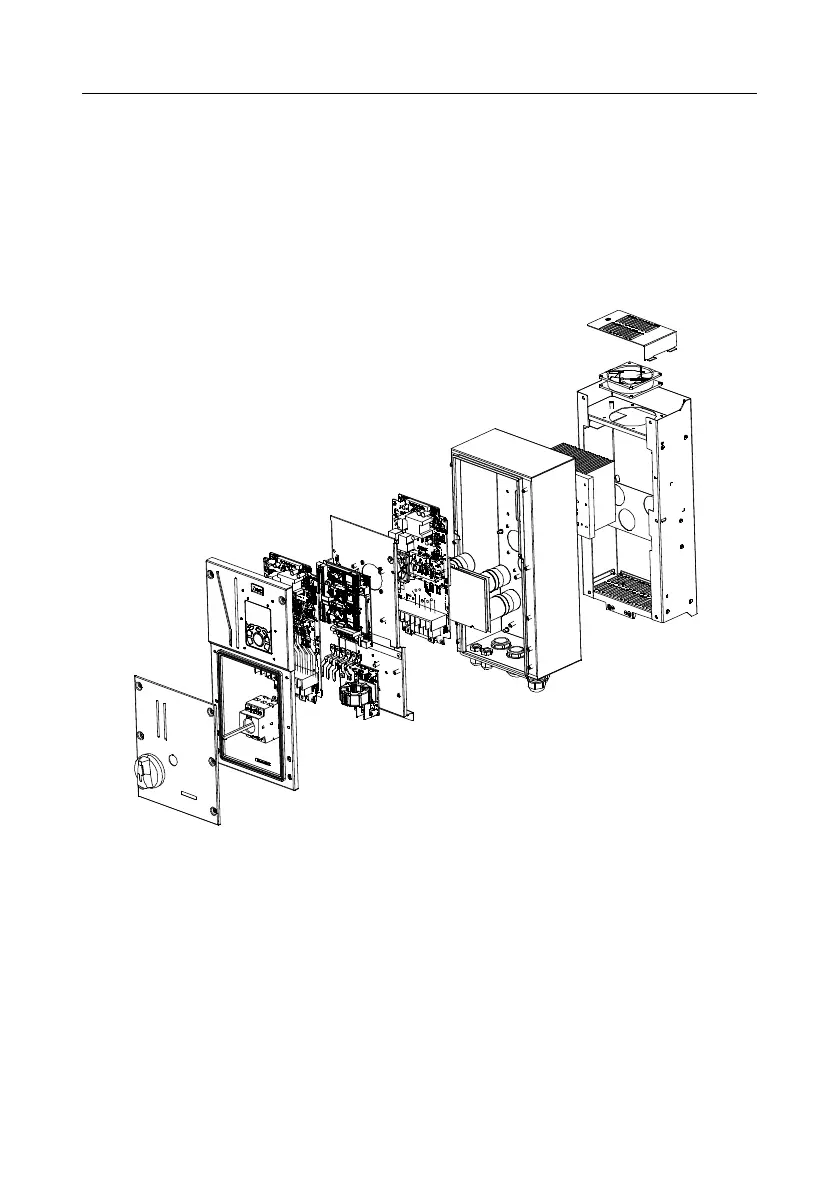

Figure C-1 VFD structure diagram
