Instruction of LEDs
Display state
Description
Green LED flickering
The boost module has been powered on, and the control
circuit is working.
Green LED on
The boost module is running.
Red LED on
The boost module is faulty.

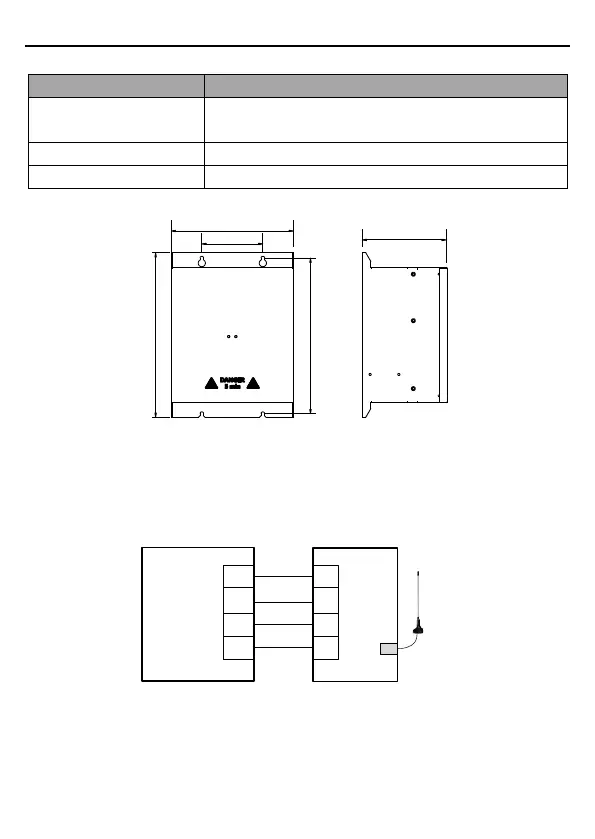

The figure below shows the installation dimensions of the boost module.
FAULTRUN FAULT
170
85
117
230
217.5
A.2 GPRS module and monitoring APP
The pumping VFDs support the installation of the GPRS module to implement remote
monitoring. The GPRS module connects to the VFDs through 485 communication. The VFD
operation state can be monitored on the APP in the mobile phone or web page in real time.
Method for connecting the GPRS to the VFD:
24V
COM
485+
485-
GD100-PV
VFD
GPRS
module
24V
GND
A
B
Antenna
Figure A-2 Connecting the GPRS module to the VFD
For more information, see the GPRS/GPS adaptor operation guide matching the GPRS
module or contact the local office. When consulting, provide the product models and serial
numbers.
