Installation
True Online 6-20k UPS User Manual
12
other insulated wire which complies with AWG Standard for the UPS input and output
wirings.
4) For 15kL/20kL UPS, it is recommended to select the UL1015 6AWG(25mm
2
) wire or
other insulated wire which complies with AWG Standard for the UPS input wires and
output wirings. It is better to use 3 wires (UL1015 10AWG) connecting input A/B/C
separately from same source as fig.4.
NOTICE：Do not use the wall receptacle as the input power source for the UPS, as its rated
current is less than the UPS’s maximum input current. Otherwise the receptacle may be burned
and destroyed. For the long backup time modes, make sure that the capacity of batteries is
larger than 24AH to avoid over charging.
5) For 6-10K, connect the input and output wires to the corresponding input and output
terminals according to the fig.3. Make sure that wires be connected to terminals
through cable entry protector shown as fig.3:

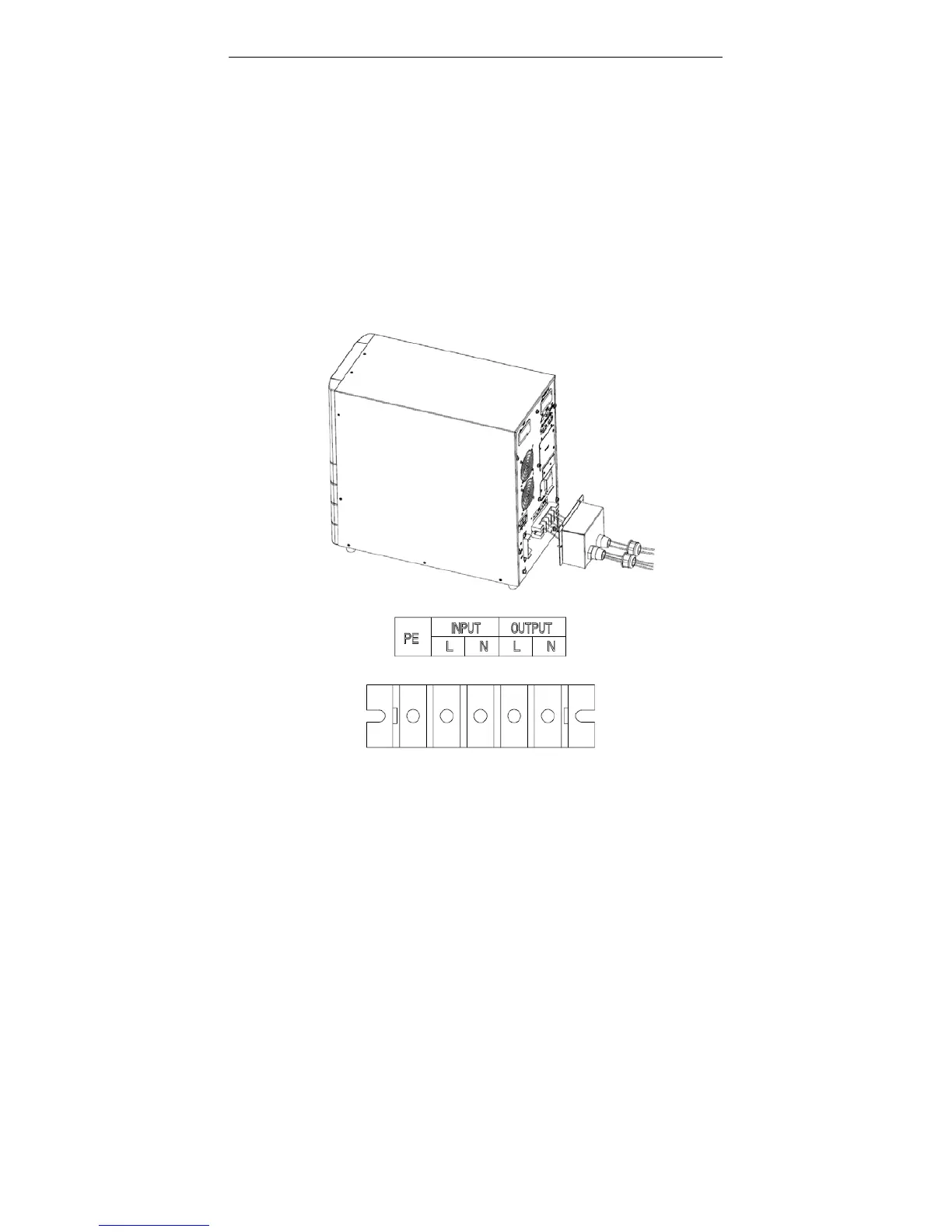

(a) Cables entry
(b) Wiring connection
Fig 3. Input and Output Terminal Block Wiring Diagram of 6K(L)/10K(L)
