Installation
True Online 6-20k UPS User Manual
13
6) For 15KL/20KL,connect the input 3 line wires to input A/B/C separately as fig.4. Or
connect 1 input wire to input C.

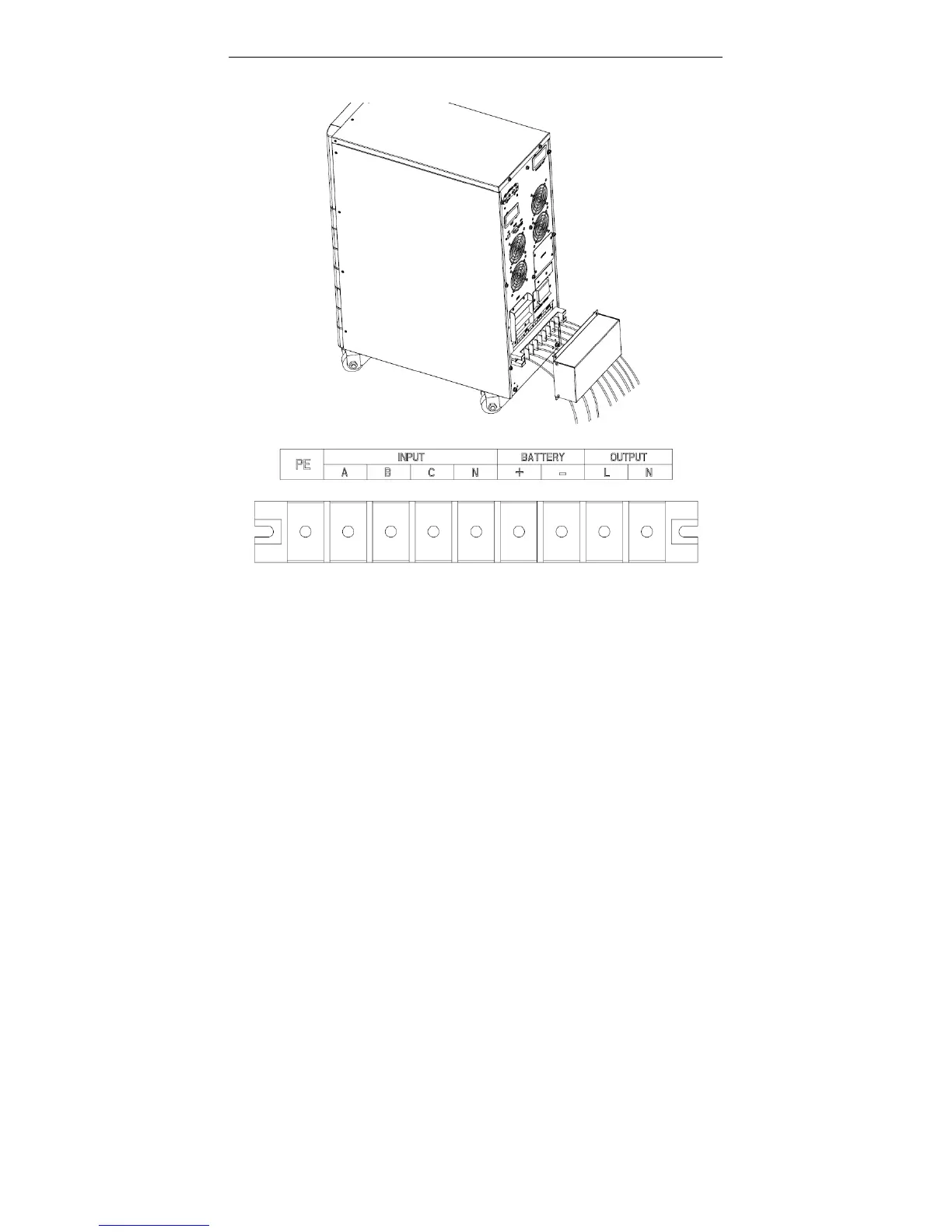

(a）Cables entry
(b) Wiring connection
Fig 4. Input and Output Terminal Block Wiring Diagram of 15KL/20KL
NOTICE：You must make sure that the input and output wires and the input and output
terminals are connected tightly.
NOTICE: Please make sure that if there is a copper bar shorting input A/B/C terminal for UPS
15KL/20KL, or else you must contact with supplier.
7） The protective earth ground wire refers to the wire connection between the
equipment which consumes electric equipment and the ground wire. The wire
diameter of protective earth ground wire should be at least as above mentioned for
each model and green wire or green wire with yellow ribbon wire is used.
8） For 6K and 10K UPS,
