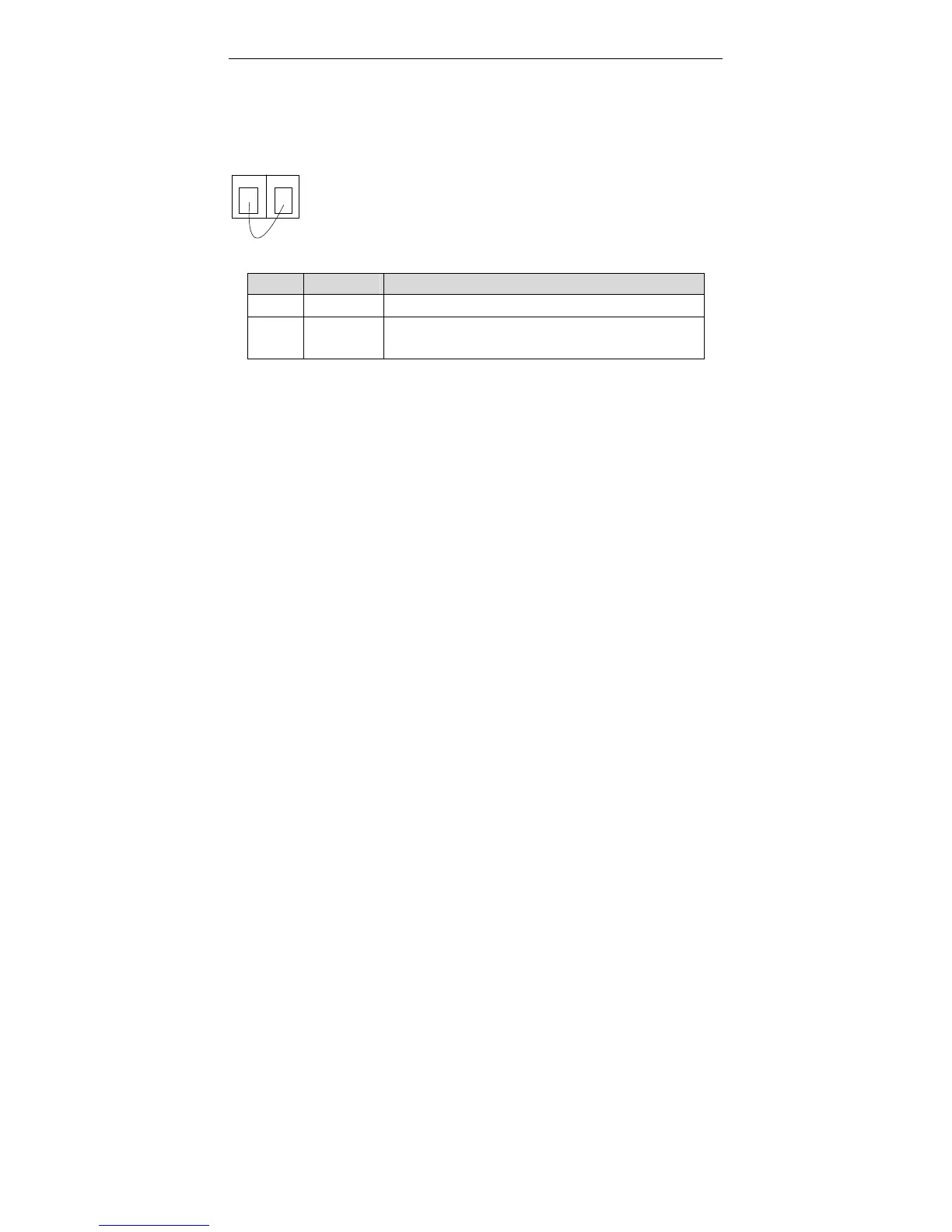

Annex C. EPO
EPO is used to quickly cut off machine under emergency, the function is triggered by
customer’s connector. By shorting common-open point NO with +24V, EPO function is
effective.
Far-away EPO connector denotation:
Pins Name Denotation
P1
＋
24V +24V
，
the same connect points for NC and NO
P2 EPO_NO
EPO function is effective by Shorting common-open point
NO and +24V
