INVT iMars BG4KTR

iMars grid-tied solar inverters Product overview
12
2.2 Products appearance

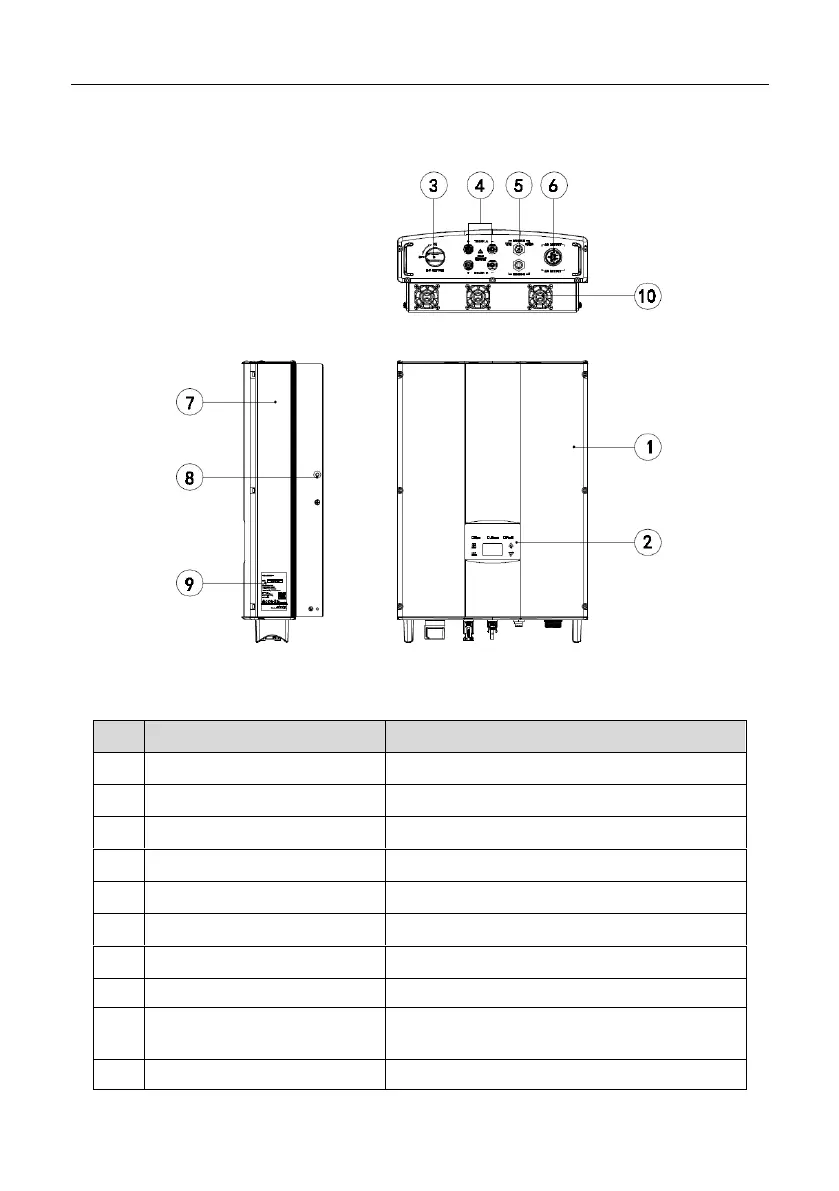

Figure 2.3 Products appearance
Table 2-1 Parts instruction
No.
Name
Instruction
1
Cover
2
Operational panel
LED status light, LCD display, keypad
3
DC switch
On–off of the DC input (optional)
4
DC input port
For the connection of solar modules
5
Communication port
RS485 and EXT communication port
6
AC terminal
For the connection of AC output
7
Cooling chamber
8
Back panel mounting screws
9
Name plate
For rated parameters and safety precautions
of the inverter
10
FAN
4~6kW(NO FAN) , 8~10kW(Air cooling)
