iMars grid-tied solar inverters Display panel
40
6.3 LCD screen

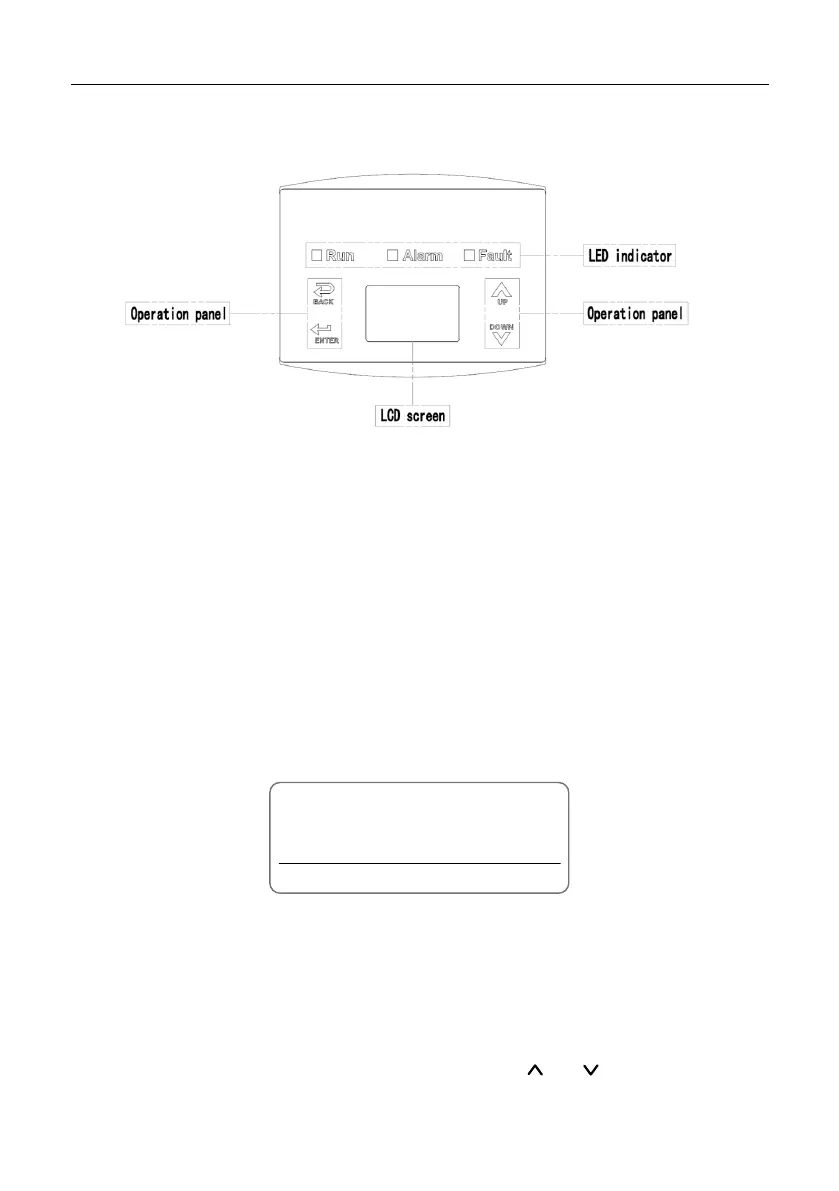

Figure 6.1 Operation panel
All information is displayed on the LCD screen. The background illumination of LCD screen will go
out to save power if there is not button operation in 15 seconds. But it can be activated by pressing
any button. Press “ENT” to enter into the main interface if the background illumination is on. All
parameters can be viewed and set on the interface.
There are main interface and menu interfaces on the LCD screen, of which the main interface is
the default one after power on, while the menu interfaces are used to watch and set parameters or
other manual operation, such as viewing the monitoring parameters, history record, system
information, statistics and fault information and setting the displayed language, time,
communication address, password and factory defaults.
Text Parameter
Display Area
Fault Code Status Area
Figure 6.2 Main interface
The main interface of the LCD screen is shown as the Figure6.2:
(1) The curve displays the power changing at the current day;
(2) The words on the screen display the current key parameters of the inverter. Three lines of
words are displayed at a time, but if the inverter is in operation or stand-by state, the words
are rolling forward at every 3s. And the user can press “ ” or “ ” to look up the
information freely;
