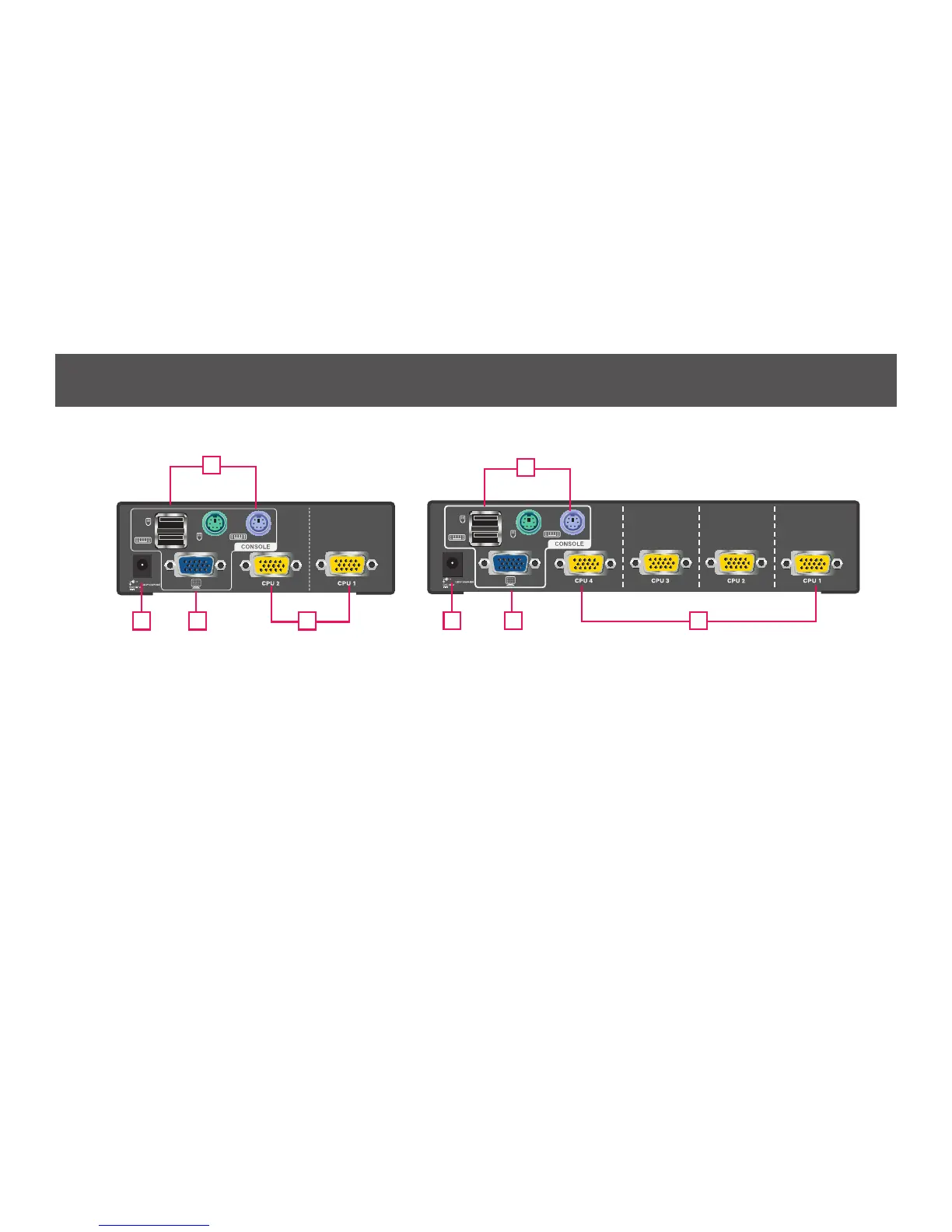

IOGear GCS1722 - Back Panel Components

1
2 3 4
1
2 3 4
- 8 -
1. Console Keyboard and Mouse Ports
The cables from your USB or PS/2 console keyboard
and USB or PS/2 console mouse plug in here. Each
connector is marked with an appropriate icon to
indicate itself.
2. Power Jack
If you choose to use an external power, the power
adapter cable plugs into this jack. (Power Adapter is
optional and not included).
Note:
1. Use of a power adapter (DC5V) is optional, and requires a separate purchase.
2.TheshapeoftheyellowKVMconnectorshasbeenspecicallymodiedsothatonlycustomKVMcablesdesignedtoworkwiththisswitchcan
plug in. Do NOT attempt to use ordinary 15-pin VGA connector cables to link these ports to the computer.
3. Console Monitor Port
The cable from your VGA console monitor plugs into this
port.
4. KVM Port Section
The custom KVM cable sets that link the GCS1722 /
GCS1724 to your computers plug in here. Each KVM
port section is comprised of a single female SPHD-
18 port, which incorporates the USB, PS/2, and VGA
connection.
Back View
