ION 902 - Install Shutoff Valve and Elbow Fitting

www.naturalchoicewater.com ION 900 Series Owners Manual

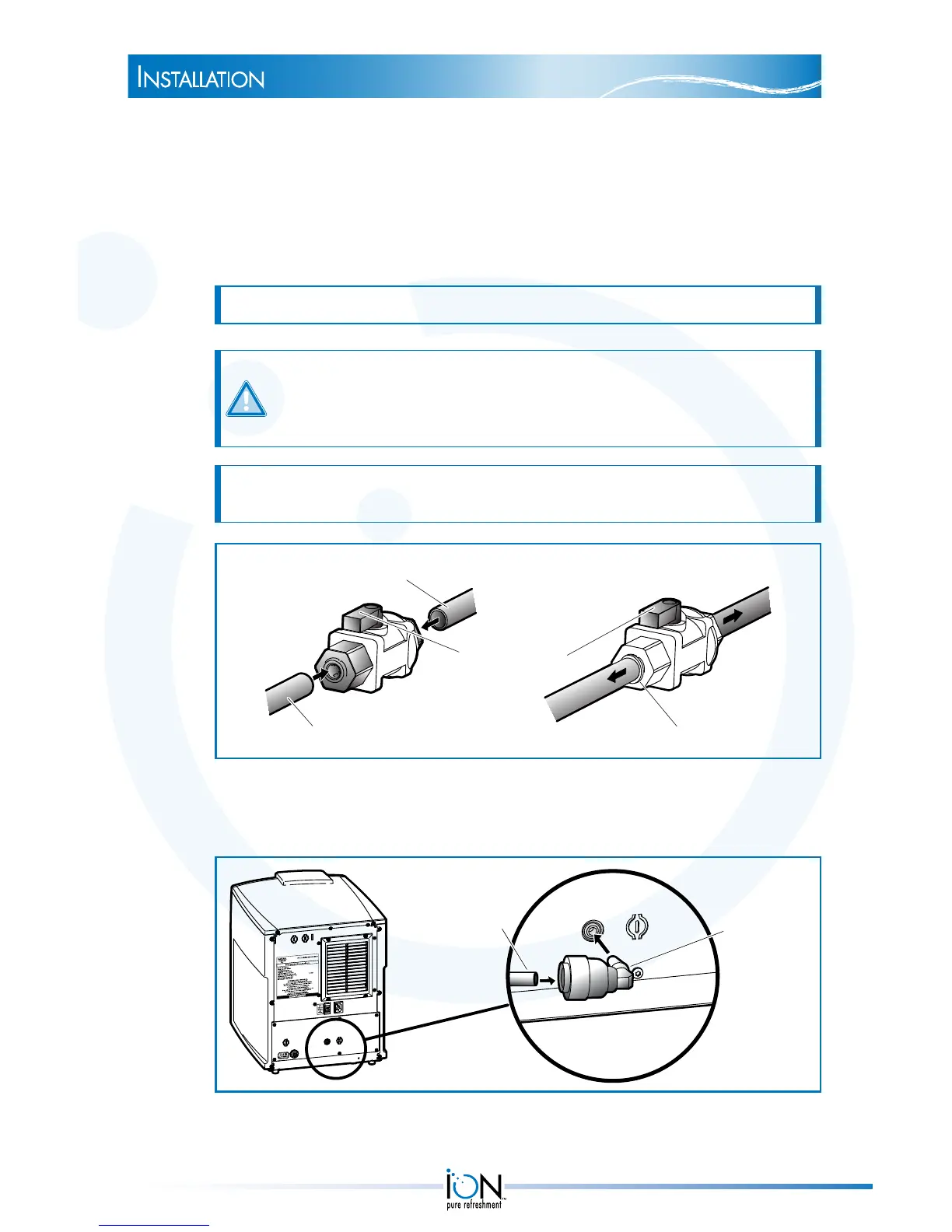

2. Install the Shutoff Valve about 12 inches from the back of the ION.
a. Cut the Blue Tubing squarely with a sharp knife.
b. Ensure the tubing has smooth, round outside diameter without
burrs or scratches.
c. Firmly push the tubing into the Shutoff Valve, past the collet and
through the internal orings for a secure connection.
NOTE: The tubing should move about ½” when fully inserted into the fitting.
CAuTION: Quick Connect fittings require special care and handling.
If uncertain about the connection, pull back on the collet and remove
the tubing. Re-cut the tubing as needed to ensure a smooth round
surface and try connecting the tubing into the fitting again.
NOTE: Leave the Shutoff Valve in the Open position as shown in the
following illustration.
To ION
Open position
From water supply
Collet
3. Firmly push the other end of the tubing into the Elbow Fitting. The stem of
the Elbow Fitting is then pushed into the back of the ION at the location
marked Water Inlet.
1/4 inch
plastic tubing
Elbow fitting
instaLLation
11
