Physical Layout
The iDM02 includes seven main types of controls, along with a group of connectors

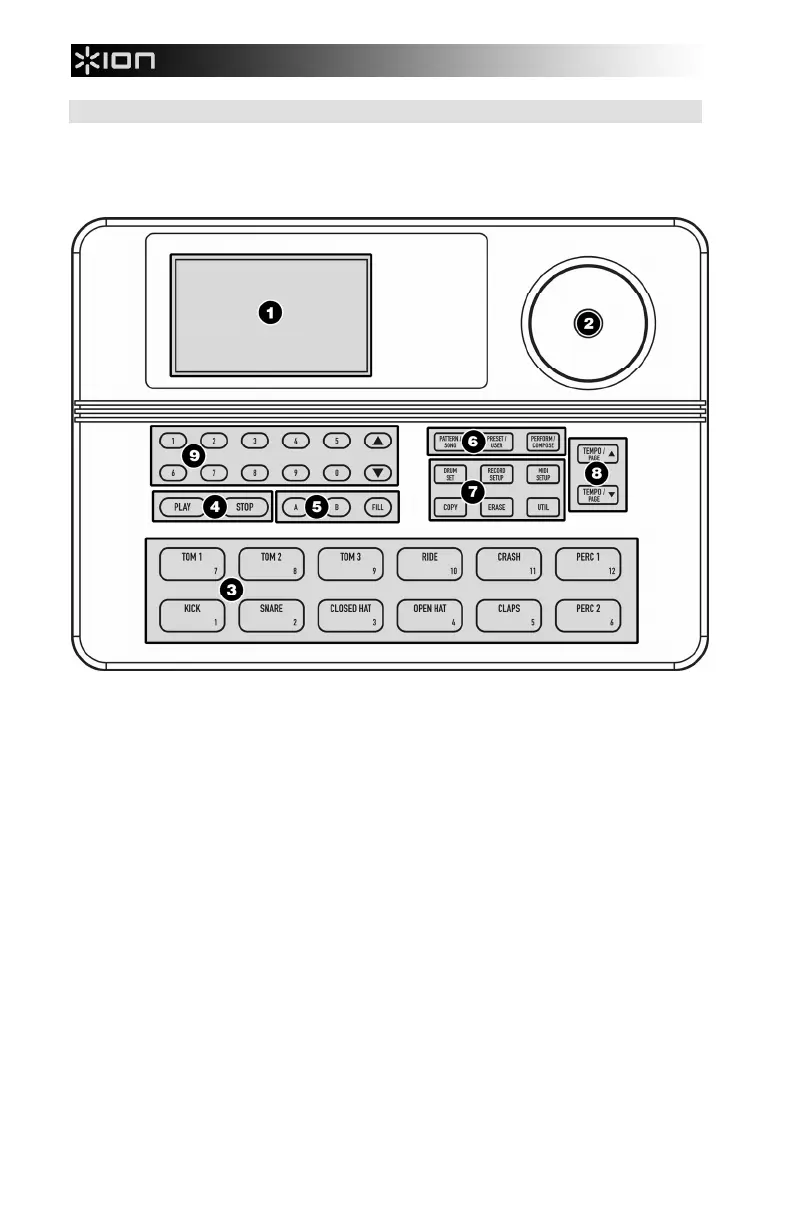

(located on the back panel). The control groups (see diagram) are:
1. Display. The display informs you of the instrument's status, and also prompts you
for data from time to time. A detailed description of the display follows shortly.
2. Volume knob. This controls the volume of the headphone and main outputs.
3. Pads (play buttons). Tapping each button triggers an iDM02 voice.
4. Playback buttons. These control playback and stop, and work similarly to a tape
recorder.
5. Pattern select buttons. These choose between the A, B, and Fill variations for a
Pattern.
6. Mode buttons. These choose between Pattern and Song modes, Perform
(playback) and Compose (record) modes, and the Preset and User patterns.
7. Function buttons. These six buttons select various functions, some of which include
multiple "pages" of options.
8. Tempo/Page buttons. These alter the tempo and also select different "pages"
present in the Drum Set, Record Setup, MIDI Setup, and Backup functions.
9. Data entry buttons. The data entry buttons include number entry buttons (0-9) and
up arrow (increment, or INC) and down arrow (decrement, or DEC). The latter
increase or decrease parameter values on step at a time.
