IONIC Zero PPM - System Fuse Box Details

Machine Component Identification
9
System Fuse
Box
The fuse-box holds all the fuses for the 12v side of the system. Depending upon the
specification, up to five fuses may be installed. The position, application and value are
depicted in the table below.

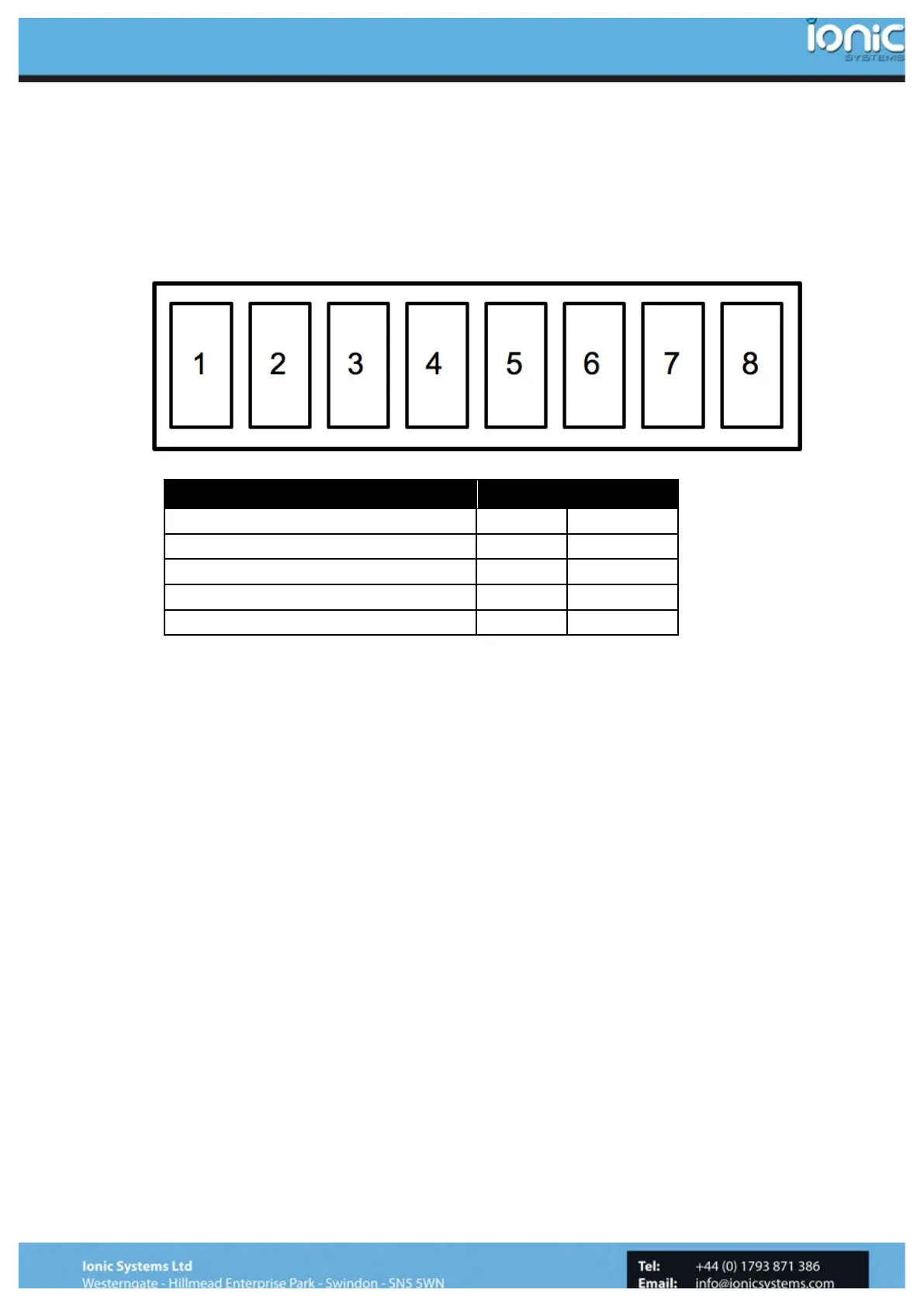

Fuse Box Diagram
(Fuse box positions 6-8 are not used)
Function
Amps
Position
Supply
15 A
1
Pump 1
15 A
2
Pump 2 (Hot pump on ThermoPure™ system)
15 A
3
Thermopure™ Heating Unit
20 A
4
Thermopure™ Switch
5 A
5
