IonOpticks Aurora Series - Using Bruker Column Toaster

For Bruker CaptiveSpray source

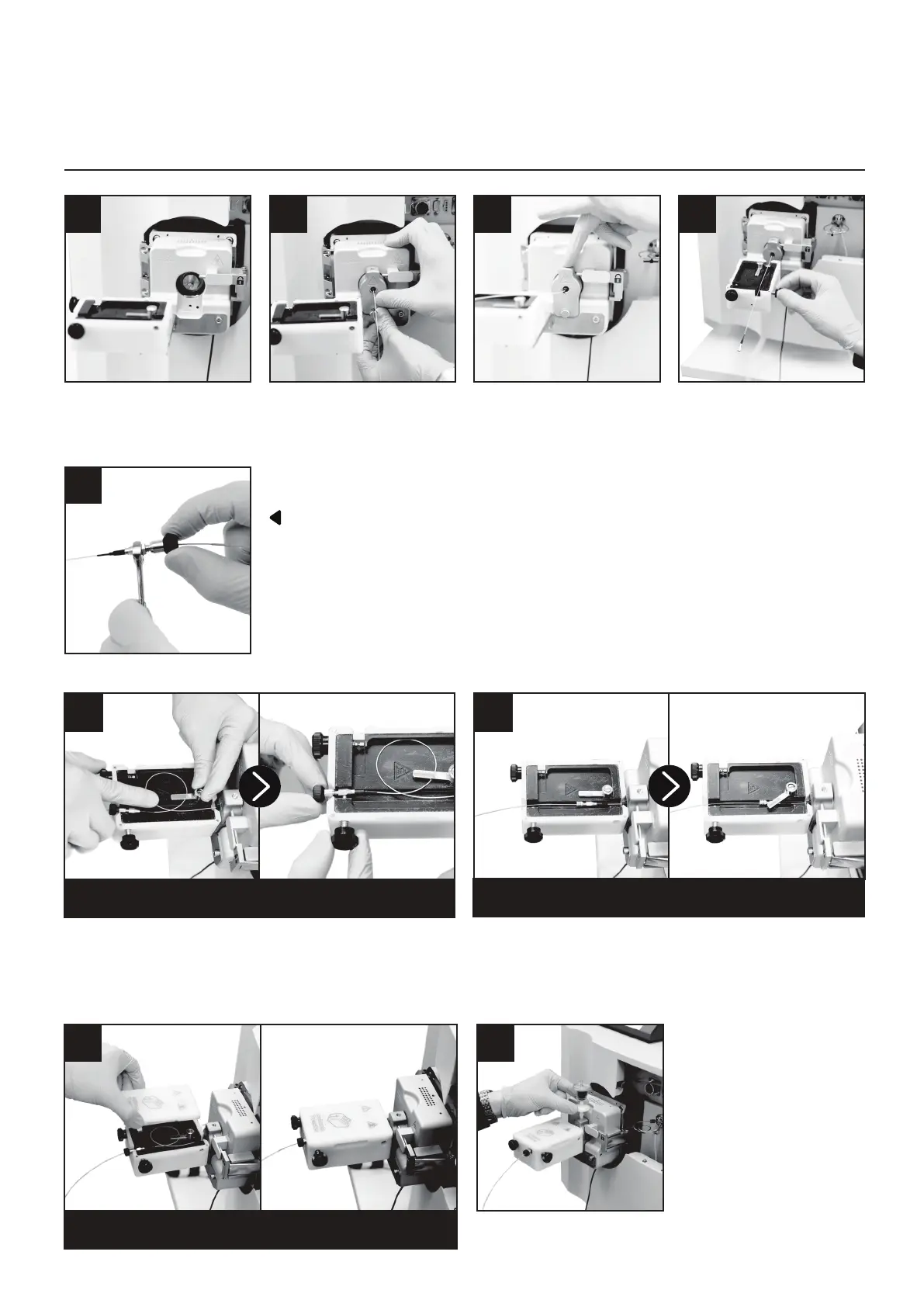

Retract the column heater from
the CaptiveSpray source
Insert the CSI Housing into the
source, press with a small
amount of pressure and tighten
the screw until finger tight.
Using a gloved finger, block the
air inlet and monitor the Fore
pressure. The Fore vacuum
needs to drop to below 3e-01
mbar within 10 seconds to be
considered usable.
If not sealed, try refitting before replacing
rubber seals (Refer Bruker CSI
troubleshooting guide).
Move the column heater in front
of the CaptiveSpray source.
10 11 12 13
16 17
15.2
Place column directly into the heater recess. Hold in position by
placing the holding arm onto the nanoZero®. This requires a
replacement metal holding arm (supplied by IonOpticks) to allow an
earth connection with the nanoZero®.
For Aurora Rapid75 and Aurora Rapid150 columns
Curl the column inside the
heating plate and hold in
position by placing under
the holding arm.
15.1
Tighten the earth screw onto the
nanoZero® to ensure that the
nanoZero® is grounded and held
in position.
For Aurora Frontier, Aurora Ultimate and Aurora Elite columns
Place lid on heater
Holding the nanoZero® with a
spanner, tighten the nanoViper
fitting finger tight until you reach
a firm stop.
14
Install filter into the CSI housing
air inlet.
if using Bruker Column Toaster
The column is now
installed in the heater
and ready for
operation.
