IonOpticks Aurora Series - Using Sonation Column Oven (PRSO-V1 and PRSO-V2)

To Next Page

To Previous Page

15.2

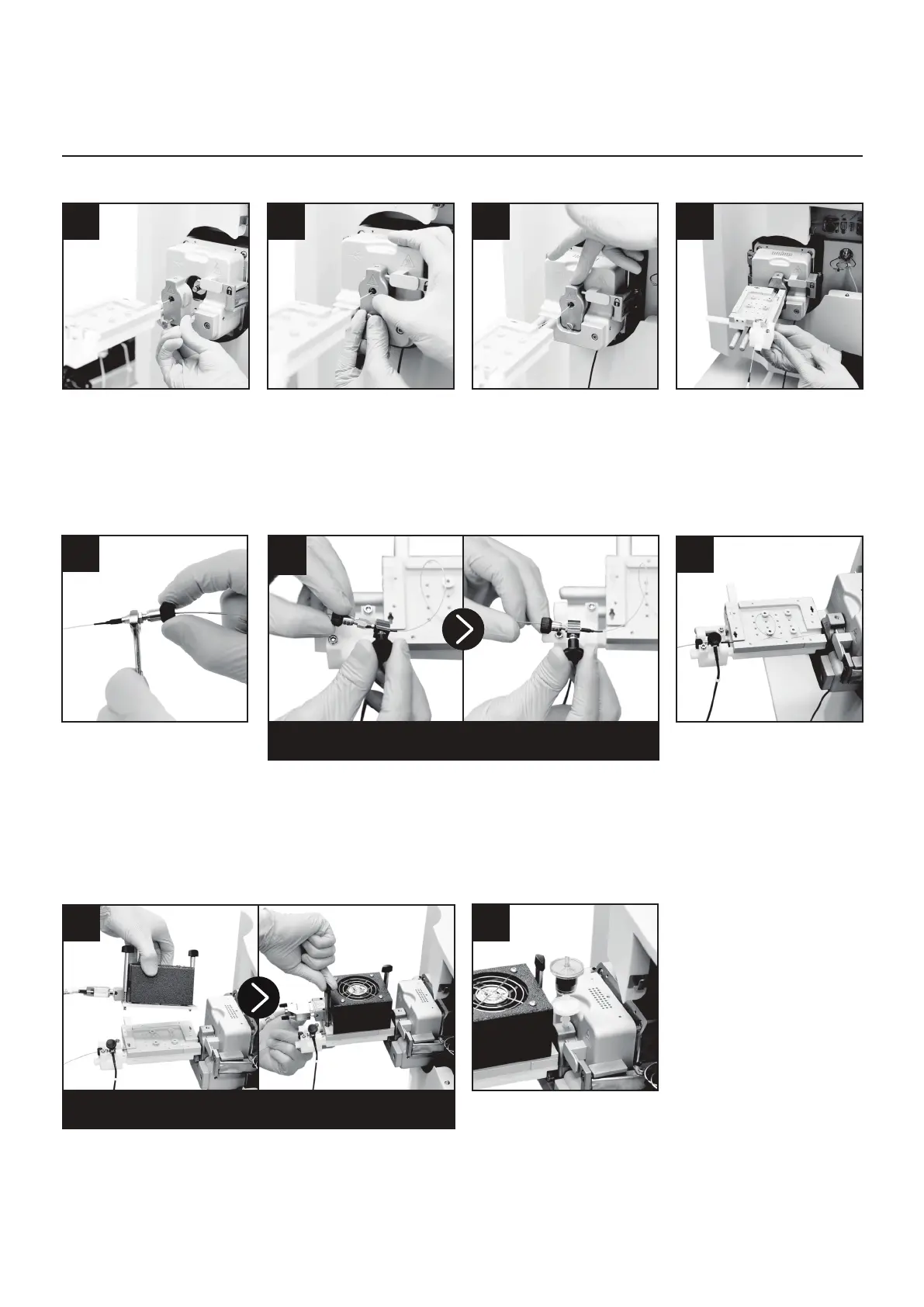

Place the earth cable clip over the thin section of the nanoZero® and

slide over the hexagonal section to make a firm connection. If the clip

feels loose, remove the clip, pinch in the clip arms and repeat the

process.

Earthing

For Bruker CaptiveSpray source

if using Sonation Column Oven (PRSO-V1 and PRSO-V2)

Retract the column heater from

the CaptiveSpray source

Using a gloved finger, block the

air inlet and monitor the Fore

pressure. The Fore vacuum

needs to drop to below 3e-01

mbar within 10 seconds to be

considered usable.

If not sealed, try refitting before replacing

rubber seals (Refer Bruker CSI

troubleshooting guide).

Move the column heater in front

of the CaptiveSpray source.

10 11 12 13

Closing the heater

Holding the nanoZero® with a

spanner, tighten the nanoViper

fitting finger tight until you reach

a firm stop.

Curl the column inside the

heating plate and place the

nanoZero® and earth clip into

the plastic holder.

Press the CSI Housing with a

small amount of pressure and

tighten the screw until finger

tight.

Place top plate on heater and secure in position using the press pins.

Be careful to avoid pinching the column during this process.

Install filter into the CSI housing

air inlet.

The column is now

installed in the heater

and ready for

operation.
