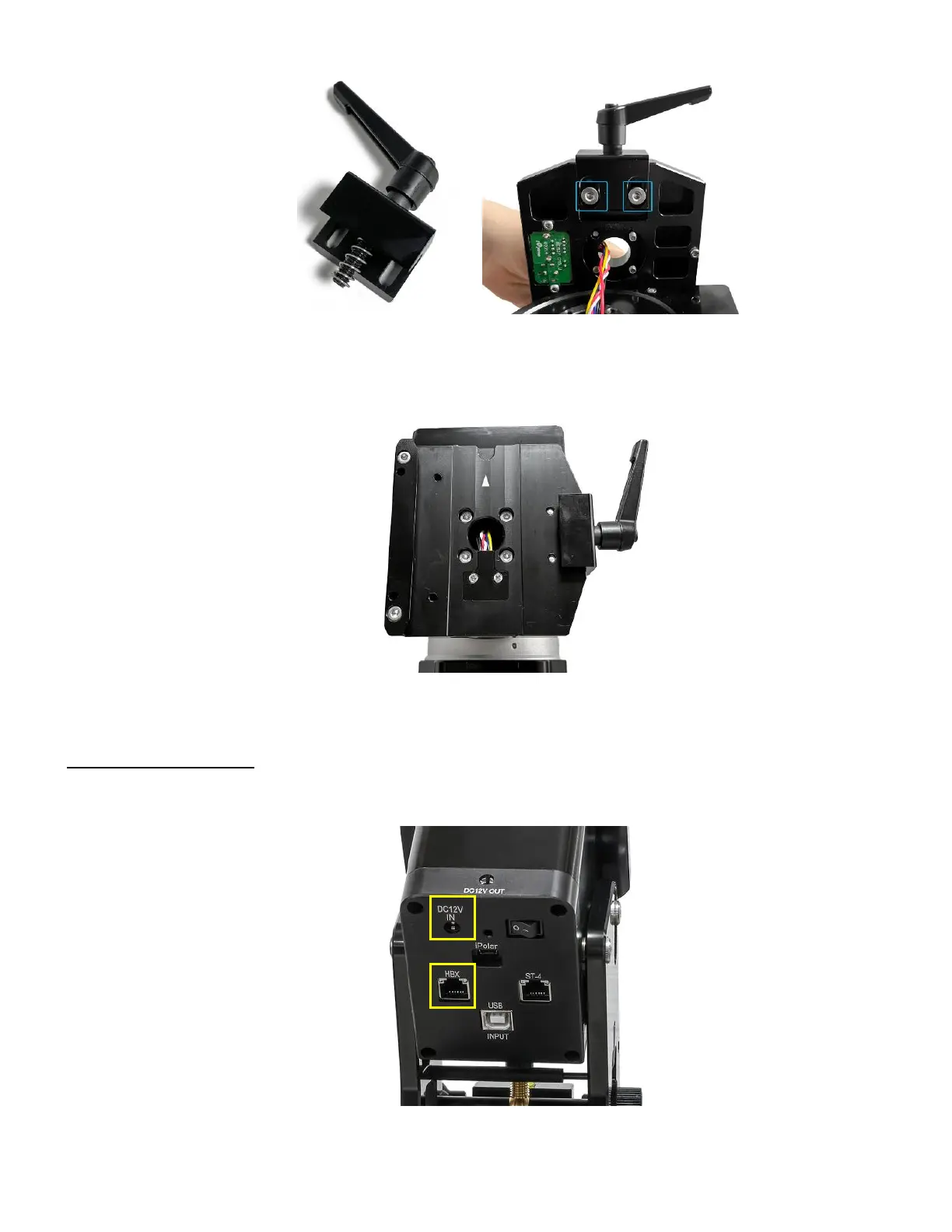

Figure 14. Convert dovetail saddle to accept a Losmandy-D plate (2)
(4) Put the dovetail saddle back and retighten the four yellow circled screws.
Here is a dovetail saddle that can receive a Losmandy-D dovetail bar.
Figure 15. Dovetail saddle for Loasmandy bar
Step 5. Connect cables
Connect the Go2Nova® 8409 Hand Controller to the HBX port on the mount back. Plug in a 12V DC
power supply to the DC12V IN socket.
Figure 16. DC power and HBX ports
