32
* Payload calculated with payload center of gravity to the RA rotation axis is 200mm. Or an OTA size of
~220mm.

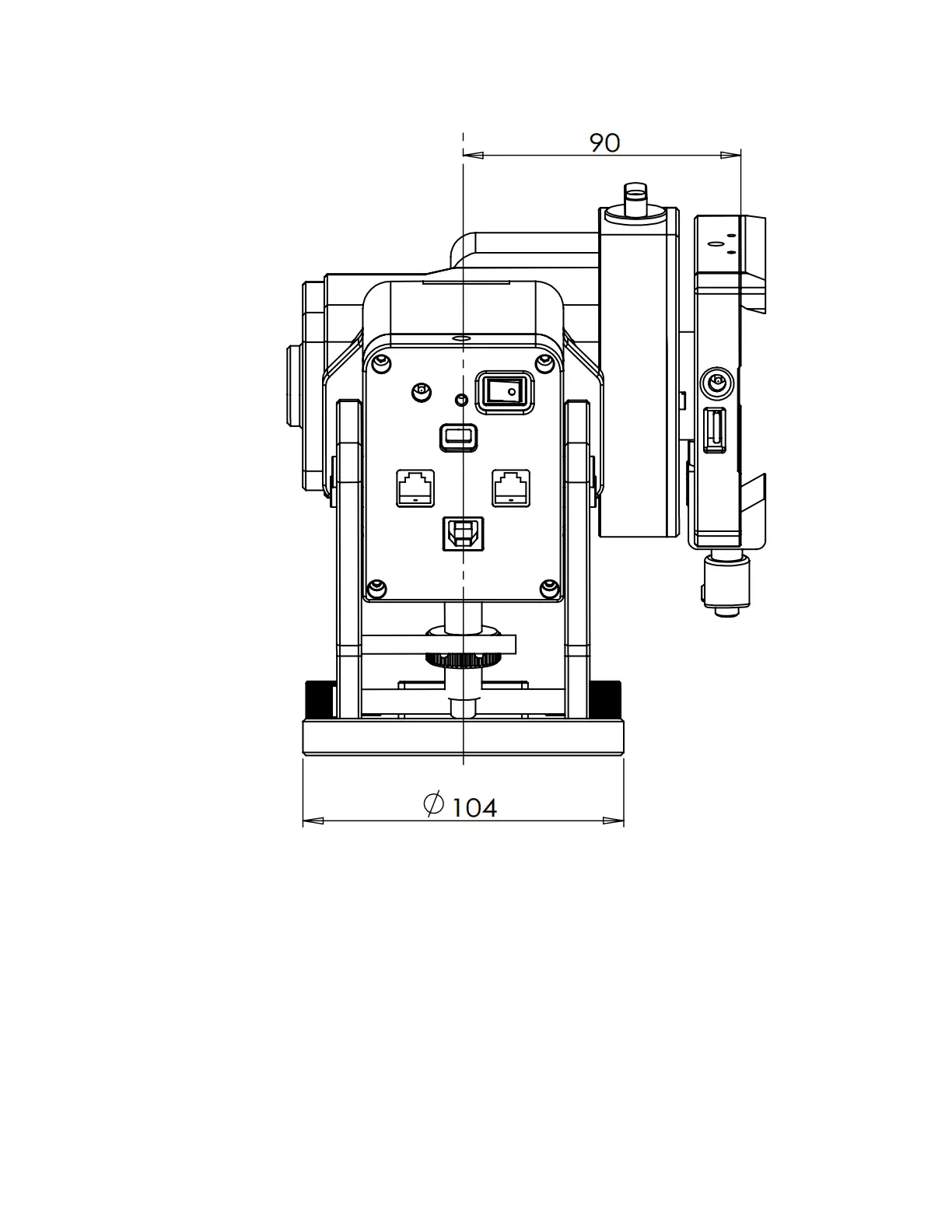

Figure 22Distance between HEM RA axis and base of dovetail saddle
