iOptron Pier User Manual

3

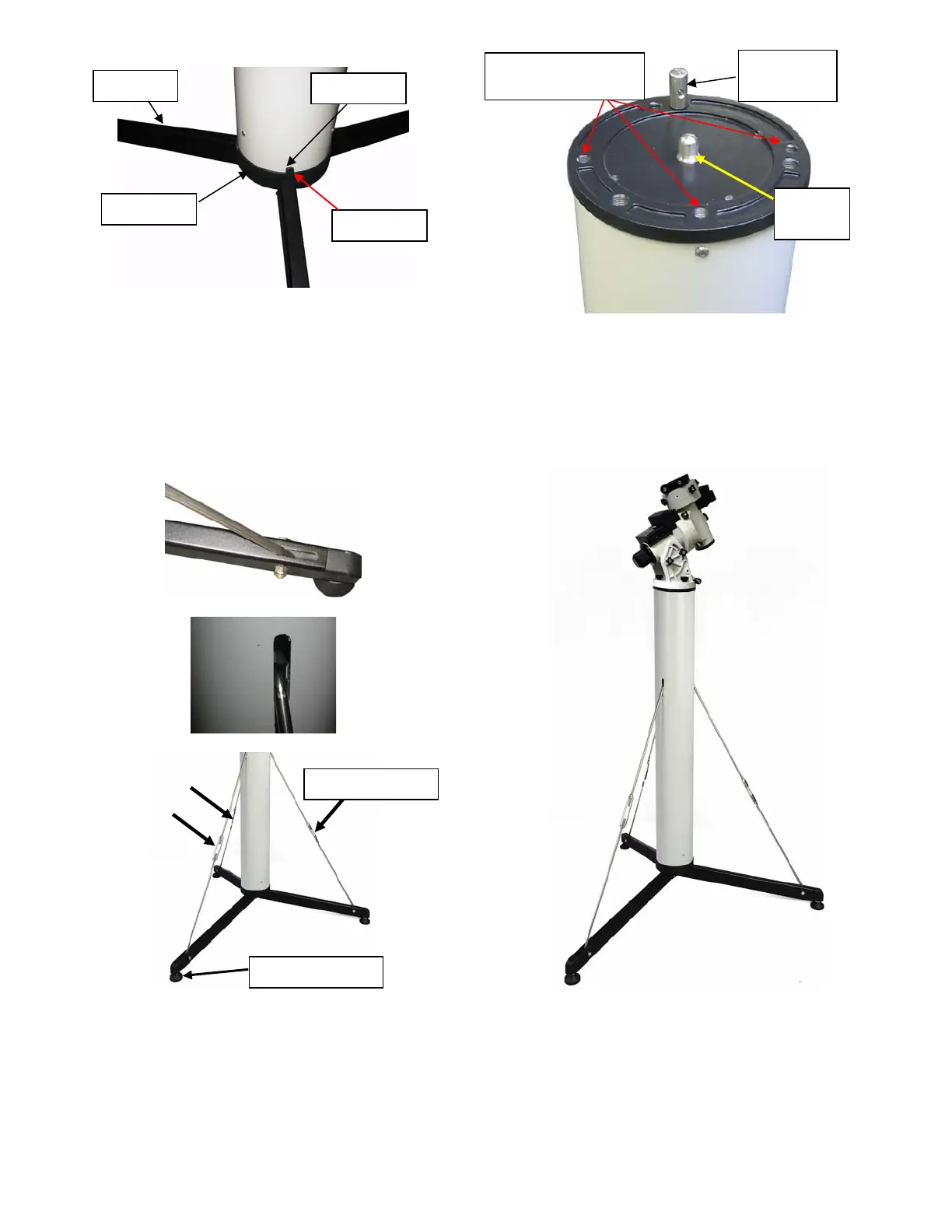

Figure 5
Adjust the length of the three Pull Rods. Hook one
end of a Pull Rod onto a bolt located on the Pier
Leg and the other Pull Rod end onto the mounting
beam inside the Pier Tube. Evenly tighten the Pull
Rods. Make sure there is no gap between the Pier
Base and Pier Tube.
Figure 6
There are three sets of holes/threads on top flange
of the pier. They are designed for mounting an
iEQ45, an iEQ30 or a MiniTower series mount, as
indicated in Figure 7.
Figure 7 Pier with Alignment Peg and Center Stud
for iEQ45
To install an iEQ45 mount onto the pier, just simply
face the alignment peg north (if you are located in
northern hemisphere), and install the iEQ45 mount.
Tighten 3 Azimuth Locking Screws.
Figure 8 iEQ45 on a pier
To install an iEQ30 mount onto the pier, remove the
iEQ45 alignment peg. Thread an iEQ30 alignment
peg into the middle threaded hole located on inner
circle. Then face the alignment peg north (if you are
Tighten evenly
Adjustable Feet
Pier Leg
Pier Base
Align Slot
Align Tab
For iEQ45 Azimuth
Lockin
g
Screw
Alignment
Peg
Center
Stud
