iOptron Pier User Manual

4
located in northern hemisphere), and install the
iEQ30 mount. Tighten 2 Azimuth Locking Screws.

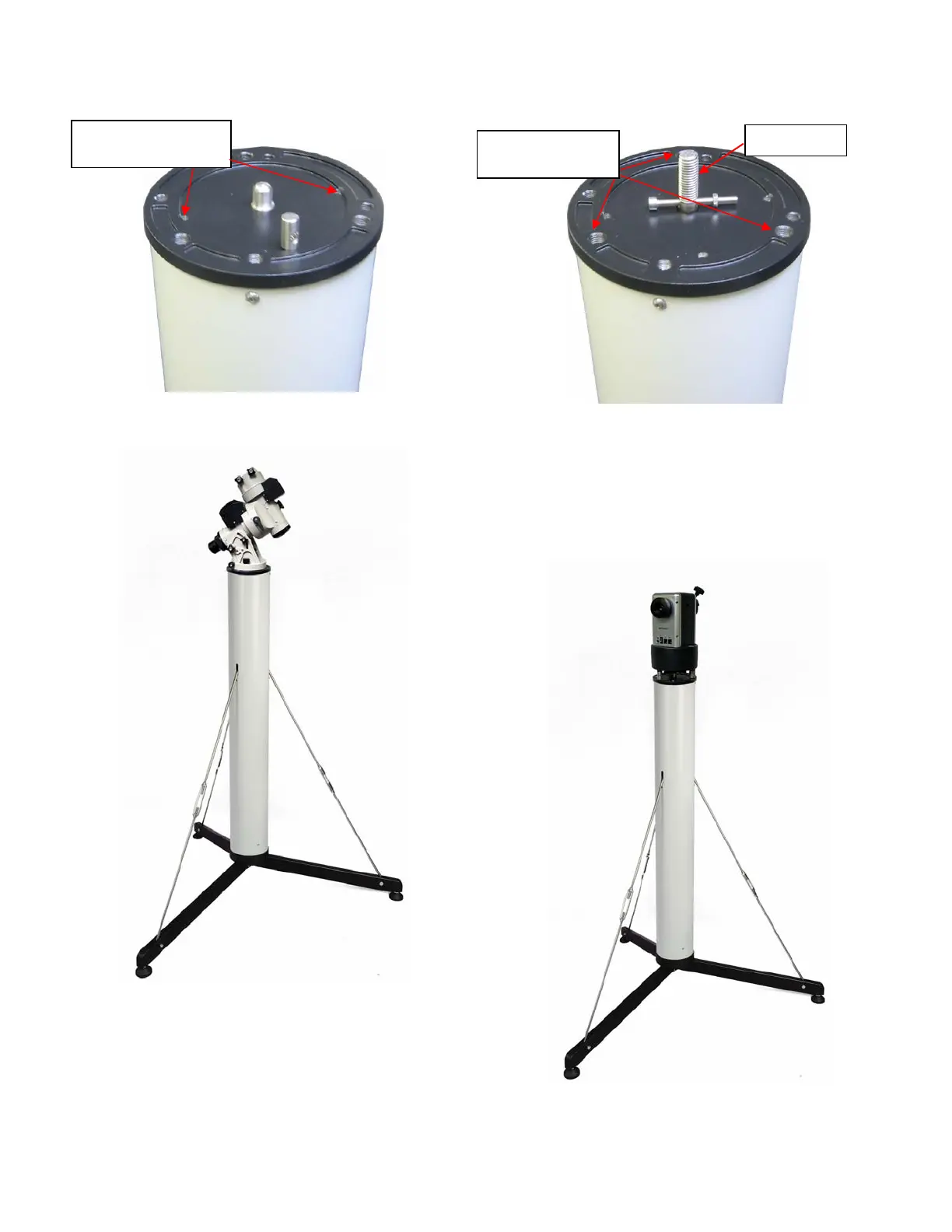

Figure 9 Pier with Alignment Peg and Center Stud
for iEQ30
Figure 10 iEQ30 on a pier
To install a MiniTower series mount (MiniTower,
MiniTower II or MiniTower Pro) onto the pier,
remove the top flange from the Pier Tube by
remove three mounting screws. Remove iEQ
Center Stud and Alignment Peg. Insert the
MiniTower Center Bolt through the center hole.
Install the Turning Lever. Mount the Top Flange
back to the Pier Tube.
Figure 11 Pier with MiniTower Center Bolt
Install 3 MiniTower level adjustment screws and
threaded in about half of the threads. Put the
MiniTower on to it. Level it. Thread the MiniTower
Center Bolt into the MiniTower and tighten it. Make
sure the mount is leveled while rotating the mount.
Figure 12 MiniTower on a Pier
For iEQ30 Azimuth
Lockin
g
Screw
For MiniTower
Levelin
g
Screws
Center Bolt
