When connecting to the input terminal block, torque lugs (L1, L2, G) to 65 lb-in.
If the cable comes in from the back
The cable will enter straight into the cable

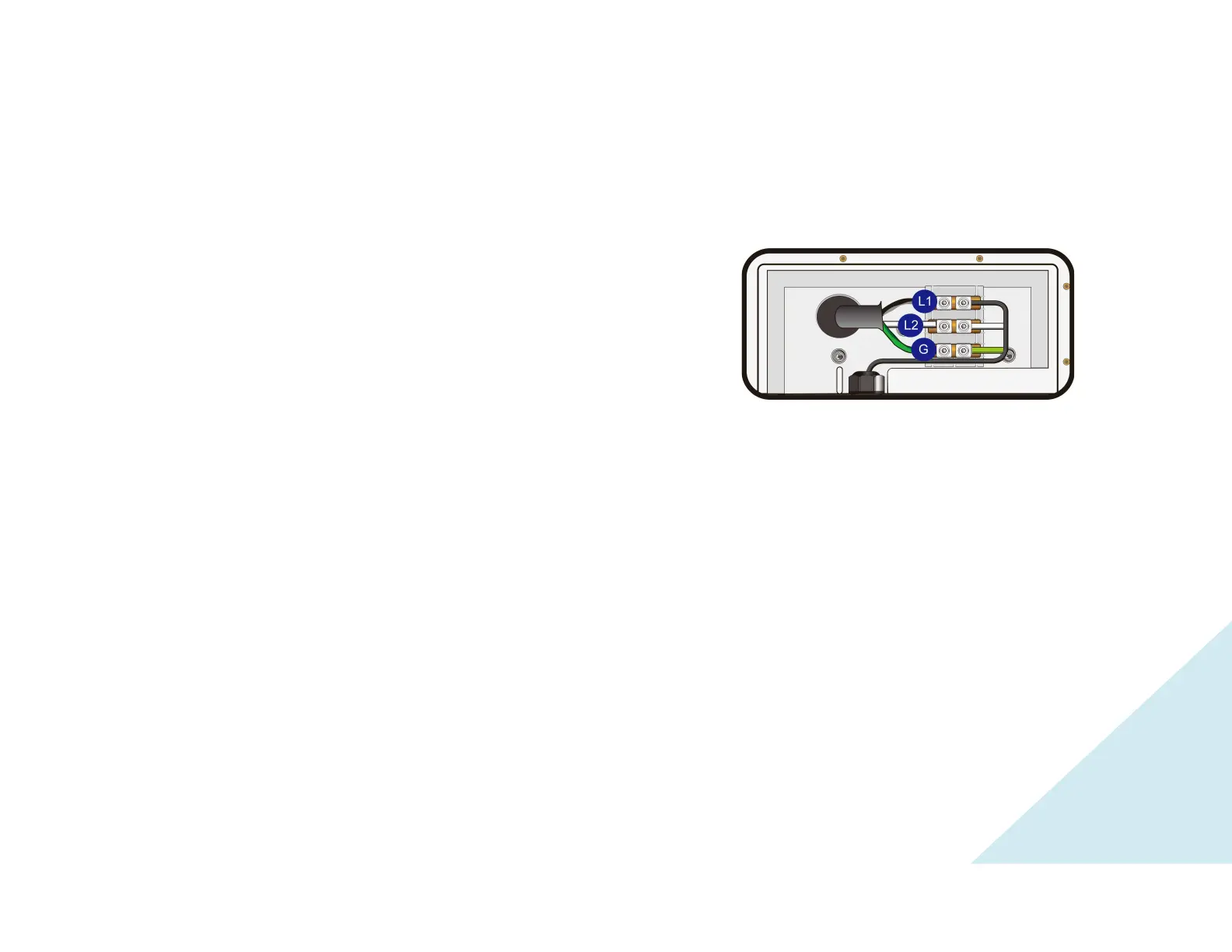

terminal cabinet. Secure the 3 wires to the
corresponding terminals as shown on the right.
NOTE: The cable hole needs to be sealed properly to keep the terminal cabinet watertight.
CAUTION: To reduce the risk of fire, connect only to a circuit with appropriately sized
conductors as recommended in “Table 2 - Minimum Required Conductor Size”, and using
branch circuit rating as defined in Table 1 - Current Selection and Branch Circuit Rating.
