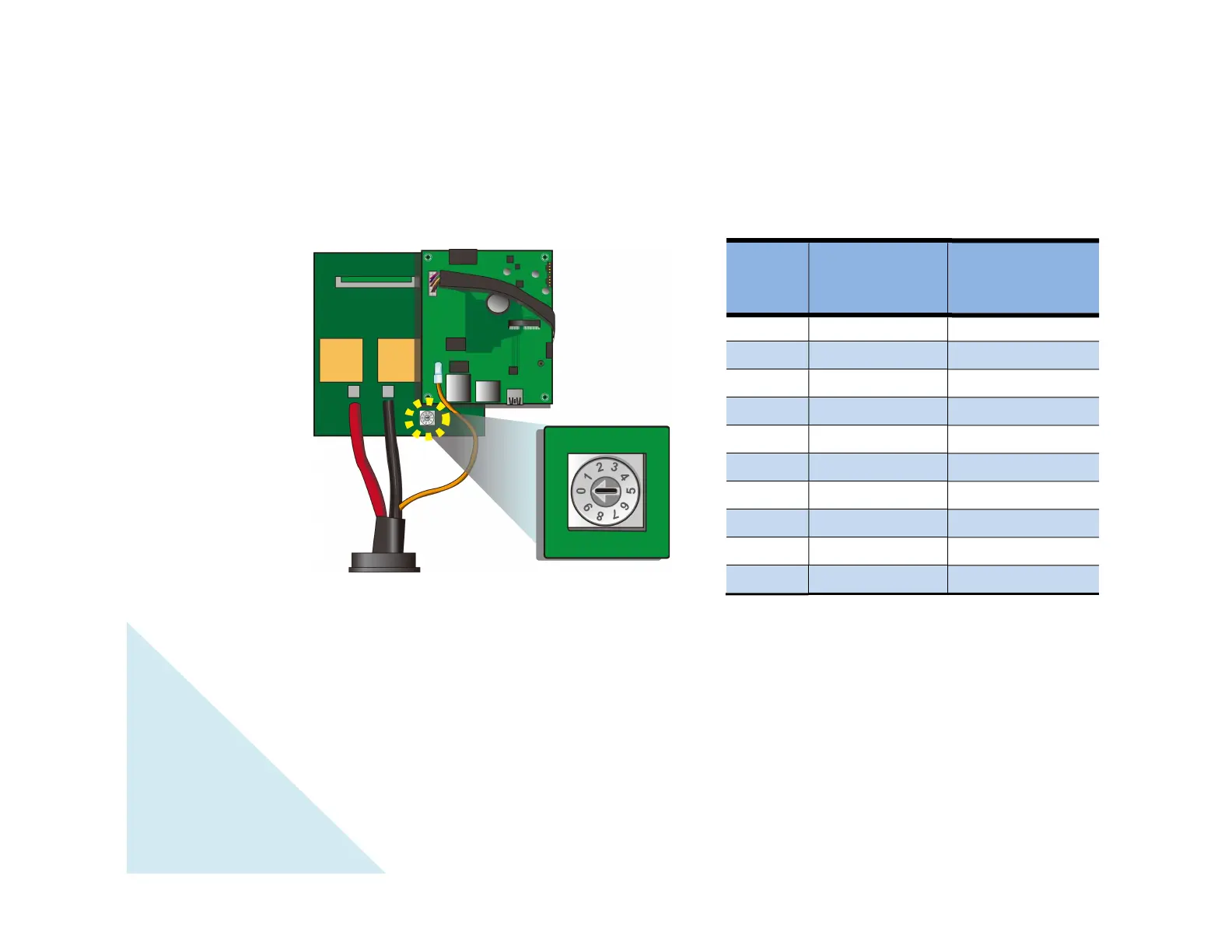

B. Select the current from rotary switch by referring to the current selection table shown below.
Position
Maximum
Output Current
Required Circuit
and Breaker
Rating
1 12A 15A
2 16A 20A
3 20A 25A
4 24A 30A
5 32A 40A
6 40A 50A
7 48A 60A
8 63A 80A
9 80A 100A
C. Install the electrical box cover back into its place. Note: If the front cover of the inner box needs
to be removed, see the section “RJ45 cable Installation (Optional)” on page 33 (A) and (F) for
instructions on removing and replacing cover.
