iPower SC2400iP - Control Panel Features

Page 09

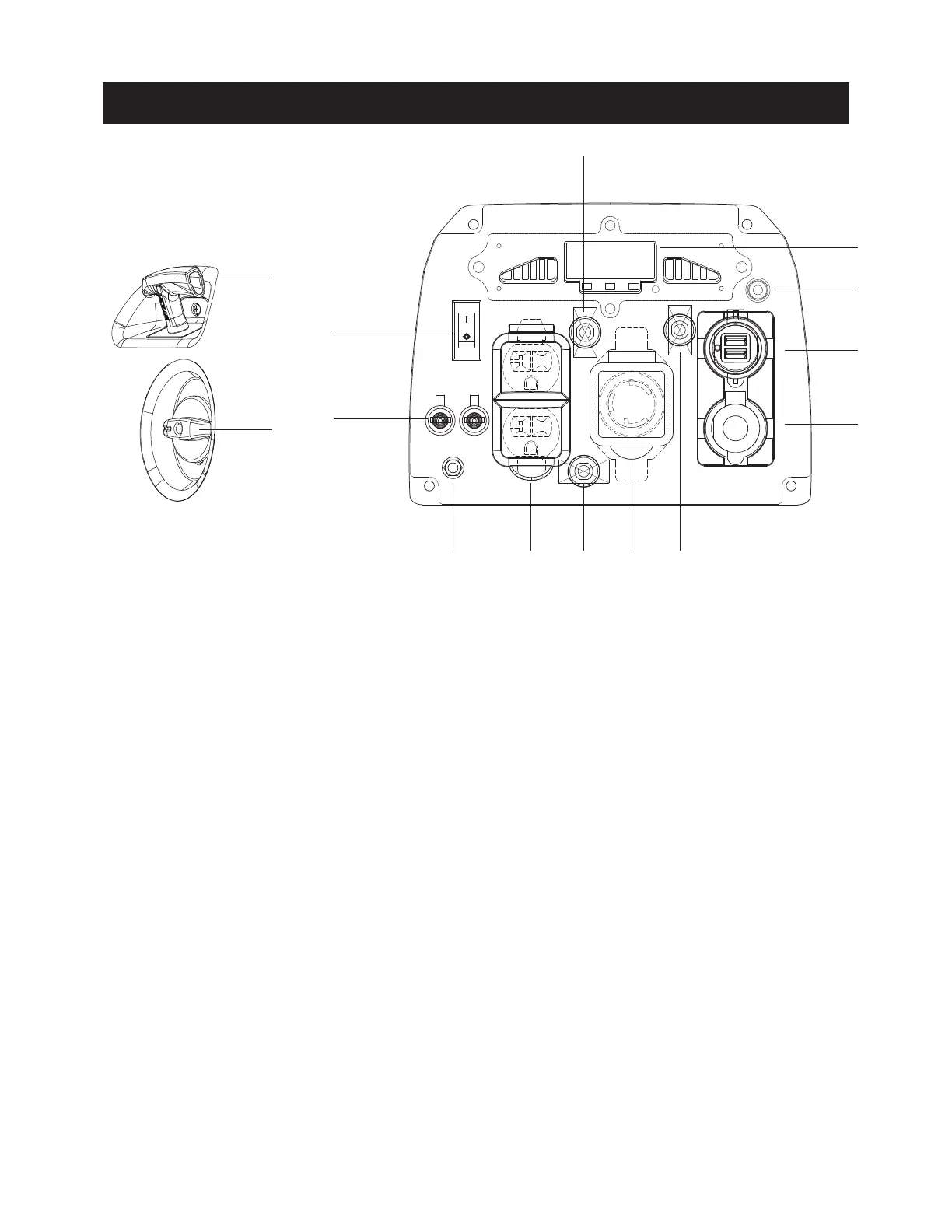

CONTROL PANEL FEATURES
1. LED DATA CENTER: See LED DATA CENTER
section.
3. 5V DC, USB Outlets: Provides 5 volt DC power
up to 2.4 amps.
4. 12V DC, Outlet (Automotive): Provides 12
volt DC power up to 8.3 amps.
5. Circuit Breaker (DC): Protects the generator
against electrical overloads.
7. Circuit Breaker (AC): Protects the generator
against electrical overloads.
6. 120V AC, 30A Twist Lock outlet, single phase,
60 Hz Outlet (NEMA L5-30R):This receptacle can
provide 120 volt output up to 30 amps.
8. 120V AC, 20A Duplex, Single Phase,
60 Hz Outlets(NEMA 5-20R ):Each outlet is capable of
carrying a maximum of 20 Amp on.
9. Ground Terminal: The ground terminal is
used to ground the generator.
10. Parallel Operation Outlets: These outlets are used
for connecting two AIPOWER inverter generators
for parallel operation. Do not connect or disconnect
parallel cables while the generator is running to avoid
damage.
11. Low Idle Switch: Low idle switch minimizes fuel
consumption and noise by adjusting the engine speed
to the minimum required for the current load.
12. Starting Dial Switch: Used to start and stop the
generator.
13. Recoil Starter: Pull the recoil starter to manually start
the engine.
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
13
12
2. CO(Carbon Monoxide) WATCH-GUARD Indicator
Light (Red for Shutoff and Yellow for Service):
The CO(Carbon Monoxide) WATCH-GUARD
monitors for the accumulation of poisonous CO
gas around the generator produced by engine
exhaust when the generator is running. If the CO
WATCH-GUARD detects increasing levels of CO
gas, it automatically shuts off the engine. See CO
WATCH-GUARD section for more information.
1
2
4
56789
10
11
3
7
