NOTE:
DO NOT connect two red leads or two black leads
into the same generator.
Page 19

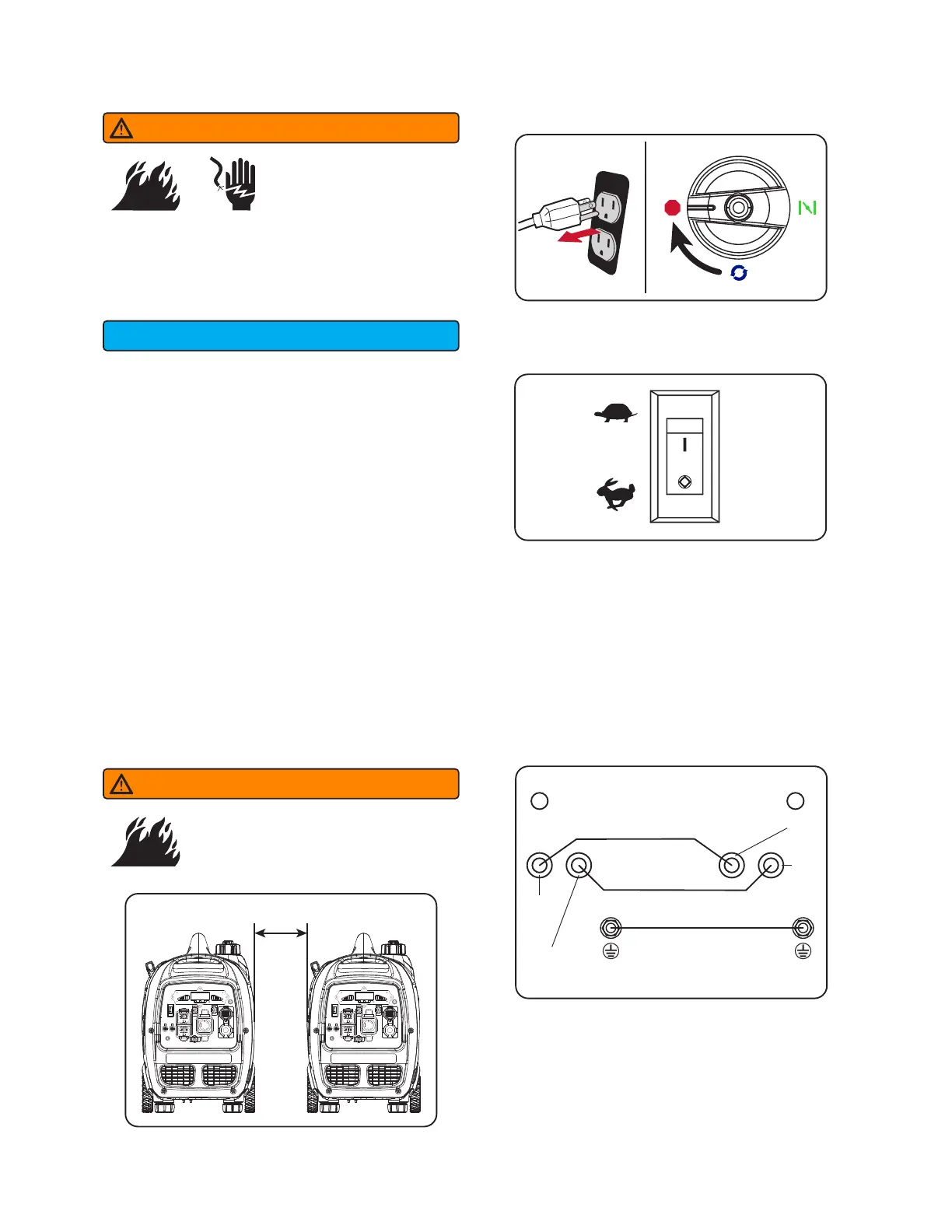

1. Align the two inverters on a firm, flat and level
surface at a minimum 20 inch apart.
2. Both generators to be turned off and all electrical
loads disconnected before paralleling operation.
Parallel Operation (2 x SC2400iP Models)
Set up and Operation
NOTE:
Only connect two identical (same model) generators
together for parallel operation.
3. Make sure the LOW IDLE switch is in the OFF
position on both generators.
4. Lift the parallel outlet cover on both generators.
Plug the black and red parallel cable leads to the
black parallel ports on each corresponding
generator control panel. Connect the yellow/green
leads to the ground terminal on each generator
and tighten the nut.
5. Start one of the generators and wait until the
OUTPUT READY INDICATOR LED illuminates.
6. Start the second generator and wait until the
OUTPUT READY INDICATOR LED illuminates
before connecting a load.
Paralleling this generator to a generator that is not
compatible can cause a low voltage output that can
damage tools and appliances powered by the
generator. Do not connect or disconnect parallel
cables while the generator is running to avoid damage.
Parallel operation gives you the ability to link this
generator to a compatible AIPOWER generator for
combined running and starting power output. Use
only the AIPOWER approved cables for parallel
operation. For single generator operation, the parallel
operation cable must be removed.
NOTICE
WARNING
Fire and electrocution hazard. Never connect or
disconnect the parallel cord leads when a generator
is running. Do not parallel more than two generators.
Use only AIPOWER generators for paralleling.
WARNING
If not spaced apart, the exhaust heat
from one generator discolors or melt
the plastic shell on other generator.
Generator
1 2
Black
Outlet
Black Cable
Red Cable
Yellow/Green Cable
Red
Outlet
Black
Outlet
Red
Outlet
Ground
Terminal
Ground
Terminal
Generator
20”
To Next Page
