B. Hardware Installation and I/O Pin
Assignment

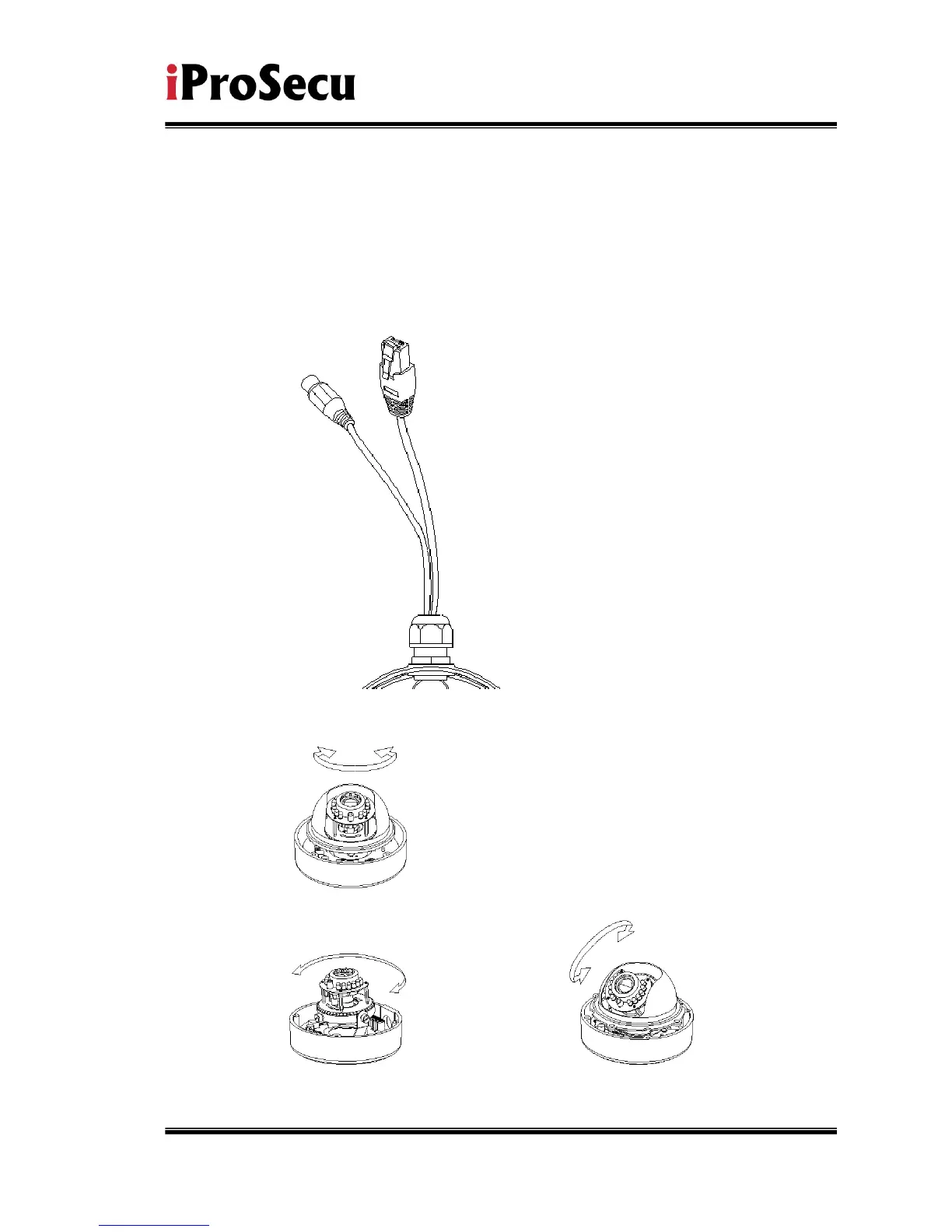

i. Connect a power adapter and IP Camera to PC or local network
ii. 3-Axis Gimbal Adjustments
Once the users open the case, the gimbal adjustment offers the
○
2 Tilt: 30°~90°
○
1 Pan: 172°
○
3 Rotation: 180°
